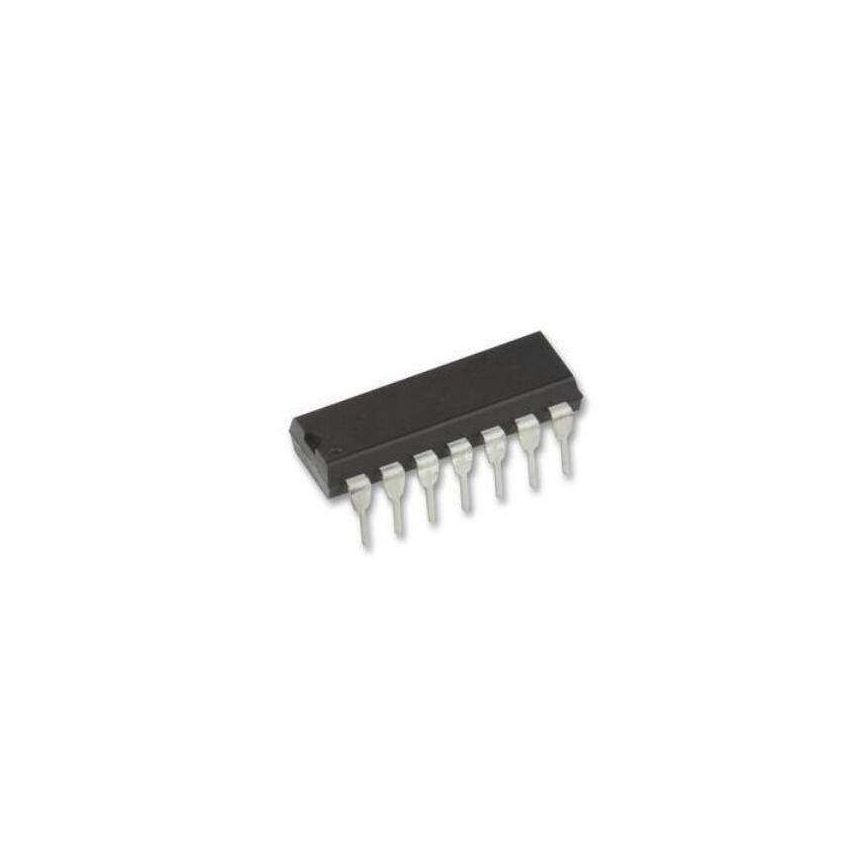

HA17084P-DIP Hitachi J-FET Input Quad Operational Amplifier DIP-14 Package​

The Hitachi HA17084P-DIP is a quad operational amplifier featuring J-FET input stages, resulting in high input impedance and low input bias currents. This makes it ideal for applications requiring minimal signal distortion and high accuracy. The amplifier operates over a wide power supply voltage range from ±5 V to ±18 V, providing versatility in various circuit designs. With a high slew rate of 13 V/µs and a voltage gain of 106 dB, the HA17084P-DIP ensures swift and precise amplification of input signals. Its wide common mode input voltage range allows for effective operation near the power-supply voltage, enhancing its applicability in diverse scenarios. The device is housed in a standard 14-pin Dual In-line Package (DIP), facilitating easy integration into existing designs. ​

Key Features:

• Low Input Bias Current: 30 pA, minimizing input loading effects.​
• High Input Impedance: 10¹² Ω, ensuring minimal signal attenuation.​
• High Voltage Gain: 106 dB, providing substantial amplification.​
• Wide Power Supply Range: ±5 V to ±18 V, offering design flexibility.​
• High Slew Rate: 13 V/µs, enabling rapid response to input changes.​
• Wide Common Mode Input Voltage Range: Operates effectively near the power-supply voltage (VCC).​

Additional Specifications:

• Package Type: DIP-14
• Common Mode Rejection Ratio (CMRR): Typically 80 dB
• Rail to Rail: No (Does not support rail-to-rail operation)
• Gain Bandwidth Product(GBP): Typically 4 MHz
• Output Current: Typically 20 mA
