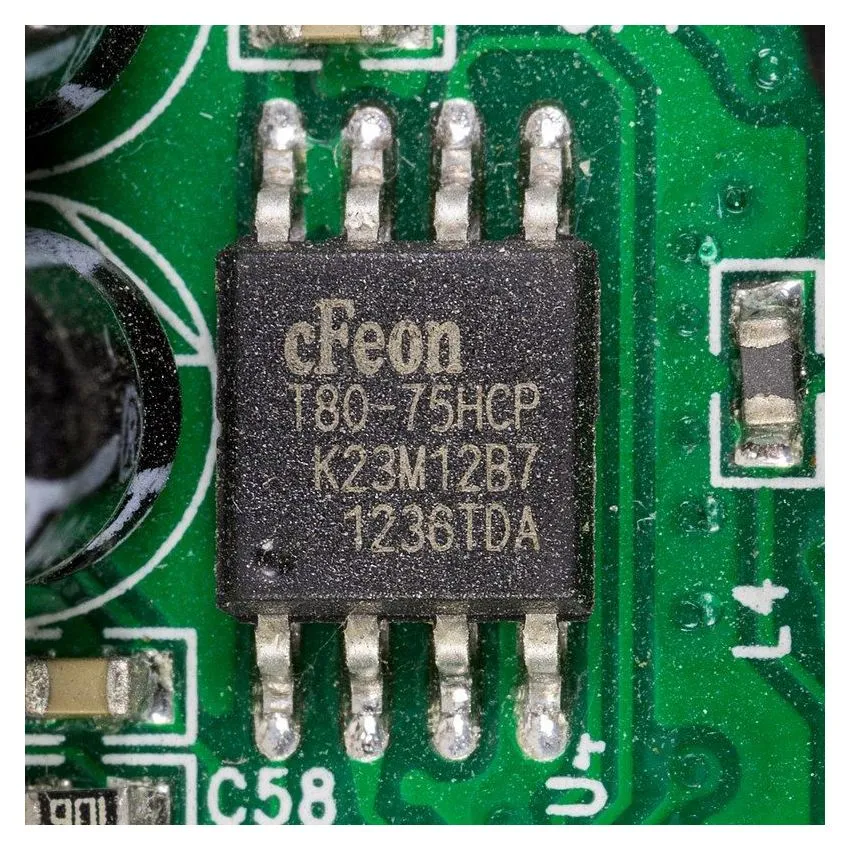

EN25T80-75HCP, 8 Mbit Serial Flash Memory, SOP-8

The EN25T80-75HCP is an 8 Mbit (1 Mbyte) serial flash memory designed for high-performance applications requiring reliable and efficient non-volatile storage. Utilizing a standard Serial Peripheral Interface (SPI), this memory device supports clock frequencies up to 75 MHz, ensuring fast data access and high-speed performance.

One of the standout features of the EN25T80-75HCP is its Dual Data Rate (DDR) mode, which allows data to be transferred on both the rising and falling edges of the clock signal. This effectively doubles the data throughput, making it suitable for applications that demand rapid data processing.

The memory is organized with a uniform sector architecture, featuring 4 KB sectors that simplify the erase process and provide flexibility in data management. This uniformity is particularly beneficial for applications involving frequent updates to the stored data.

Operating within a 2.7V to 3.6V supply voltage range, the EN25T80-75HCP is optimized for low power consumption, making it ideal for battery-powered devices and energy-efficient applications. Its low standby and active currents contribute to extended battery life in portable electronics.

The device is housed in a standard 8-pin SOP (Small Outline Package), ensuring ease of integration into various electronic designs. Its compact form factor and industry-standard pin configuration make it a versatile choice for a wide range of applications, including embedded systems, consumer electronics, and industrial automation.

• High-Density Storage: 8 Mbit (1 Mbyte) flash memory organized as 1,048,576 bytes, suitable for code and data storage.
• High-Speed Performance: Supports up to 75 MHz clock frequency for fast read operations, enhancing system performance.
• Dual Data Rate (DDR) Mode: Enables data transfer on both clock edges, effectively doubling the data throughput.
• Uniform Sector Architecture: Features uniform 4 KB sectors, simplifying the erase process and improving flexibility in data management.
• Low Power Consumption: Operates within a 2.7V to 3.6V supply voltage range, with low standby and active currents, ideal for battery-powered applications.
• Standard SOP-8 Package: Comes in an 8-pin SOP package, facilitating easy integration into various designs.
