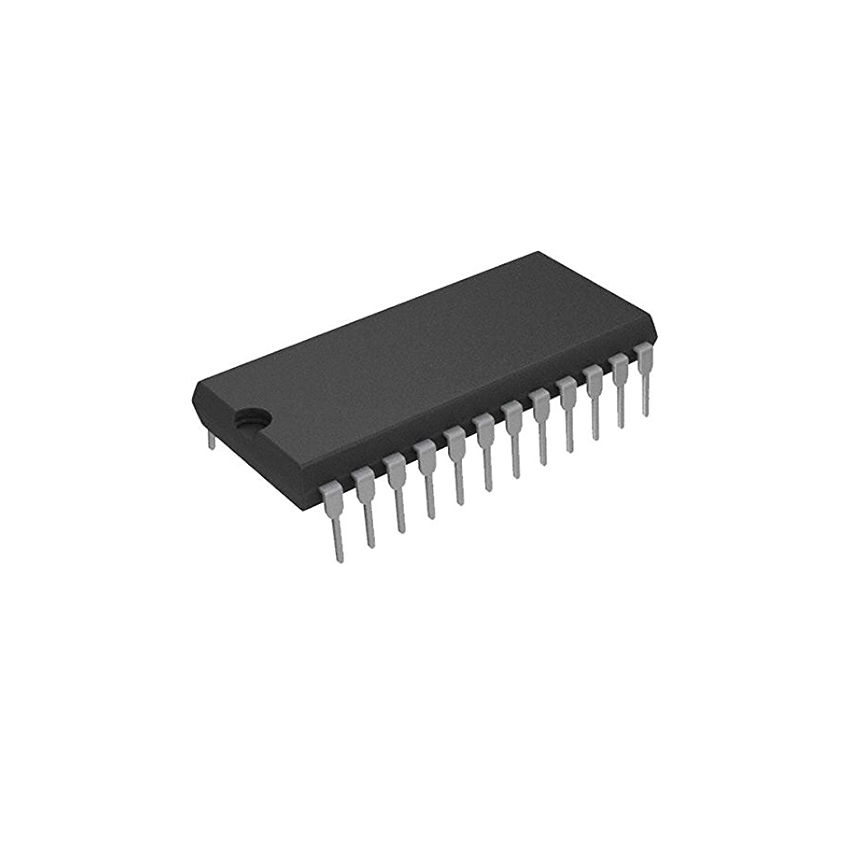

DS14287, Real-Time Clock with NVRAM Control, DIP-24

The DS14287 is a real-time clock (RTC) with NVRAM control, designed for timekeeping applications that require precise calendar and clock functions. It serves as a direct replacement for the IBM AT computer clock/calendar and is functionally compatible with DS1285/DS1287 RTC modules. This RTC provides automatic power-fail detection and backup switching, ensuring that time and calendar data remain valid during power outages. With a wide time-tracking range, the DS14287 supports seconds, minutes, hours, day, date, month, and year counting, including leap year correction up to the year 2100. The RTC supports binary and BCD formats, allowing flexible integration into legacy and modern digital systems. It features programmable alarms, periodic interrupts, and a 4.19 MHz clock frequency, making it ideal for timing-sensitive applications. The DIP-24 package ensures easy integration into through-hole PCB layouts, embedded controllers, and industrial automation systems.

• Real-Time Clock (RTC) with NVRAM Control – Integrated timekeeping and nonvolatile RAM management for reliable data retention.
• Wide Timekeeping Functionality – Supports seconds, minutes, hours, day, date, month, and year tracking with leap year compensation up to 2100​
• Multiple Clock Formats – Operates in binary or BCD mode, selectable between 12-hour (AM/PM) and 24-hour formats.
• Programmable Interrupts & Alarm Features – Includes periodic, alarm, and clock update interrupts, supporting time-based event triggering.
• Integrated Power-Fail Protection – Features automatic backup battery switching to maintain RTC and SRAM integrity during power loss.
• DIP-24 Package for Easy Integration – Through-hole design ensures seamless mounting on PCBs and embedded systems.
