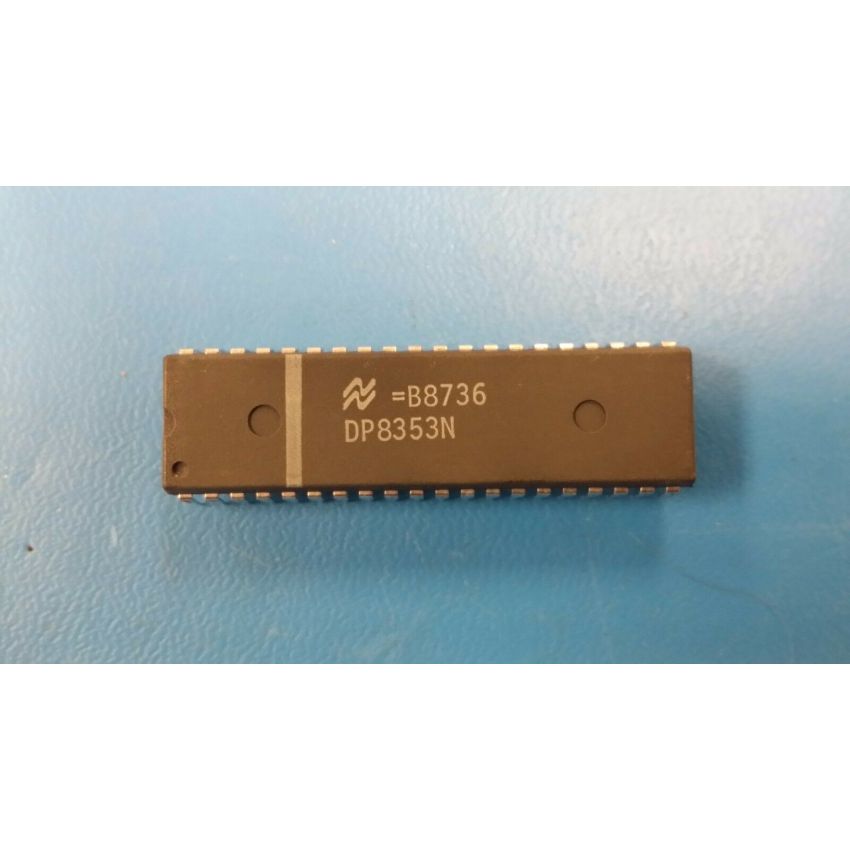

DP8353N-DIP ,High-Speed System Interface Adapter, 40-Pin DIP Package, Ideal for Data Communication and Networking Projects

The DP8353N-DIP is a versatile CRT Controller IC designed to manage and control video displays. It provides 11 character generation-related timing outputs, internal and external clock options, and supports various programmable features like character rows per video frame and video output formats.

The IC integrates memory address outputs, programmable cursor control, and direct interfacing with various character generators. With a single +5V power supply and TTL compatibility, it is ideal for CRT video applications requiring precise and flexible display management.

• Programmable Character Generation: Offers 11 timing outputs and supports programmable character size and format for flexible video display management.
• Video Control Compatibility: Directly interfaces with standard character ROMs and video shift registers for seamless display operations.
• Internal and External Clock Options: Provides an internal dot rate oscillator and can sync with an external clock for precise timing control.
• Flexible Video Outputs: Supports programmable horizontal and vertical sync outputs and vertical blanking.
• Memory Address Handling: Features 12-bit wide, bidirectional memory address outputs for efficient character row management.
• Ease of Integration: Operates on a single +5V supply, ensuring compatibility with various system designs and easy implementation.
