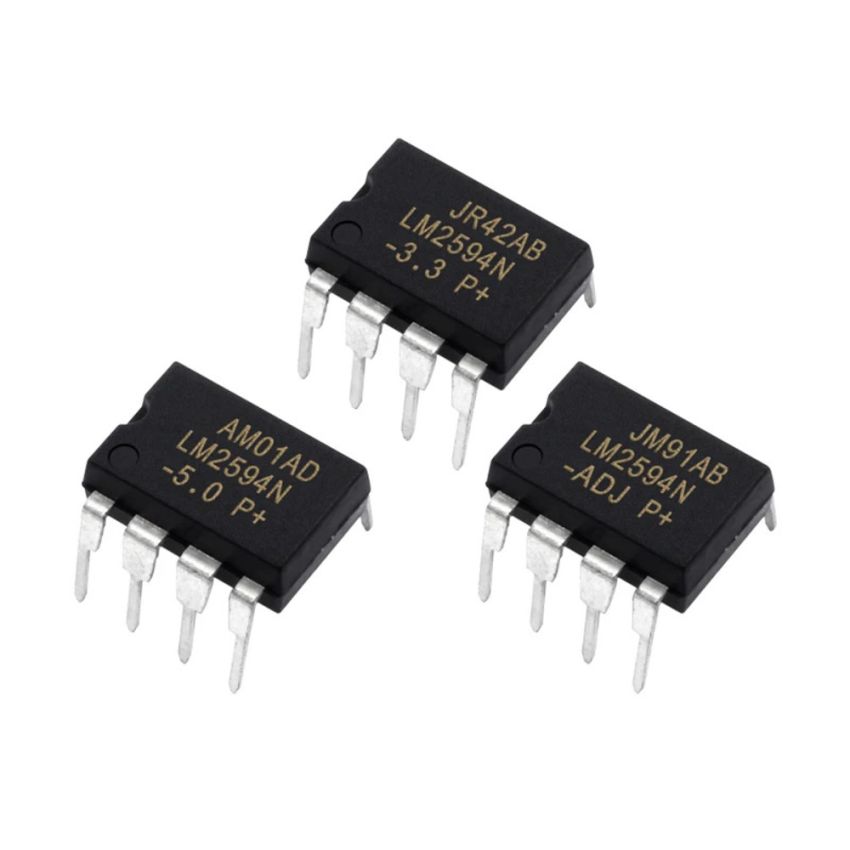

LM2594N-DIP Step-Down Switching Regulator, 0.5A, 45V

SKU
SCIx0782
Brand
Part Number
LM2594N
In stock
Add to Wish List

Guarantee safe & secure checkout

The LM2594N-DIP is a highly efficient step-down switching regulator that provides 0.5A of output current, suitable for voltage regulation in various power supply designs. With an input voltage range of 4.5V to 40V, this regulator features an internal fixed-frequency oscillator operating at 150kHz, which ensures efficient switching and reduced external component count.

The device also offers features like thermal shutdown, cycle-by-cycle current limit, and internal loop compensation, making it ideal for battery-powered systems, automotive electronics, and industrial applications.

Key Features :

  • Wide Input Voltage Range: Operates from 4.5V to 40V, suitable for a variety of power supply sources.
  • High-Efficiency Design: Capable of providing 0.5A of continuous output current with reduced power dissipation.
  • Compact 8-Lead DIP Package: Provides ease of integration in PCB designs with a through-hole mounting.
  • 150 kHz Internal Oscillator: Ensures consistent switching frequency, optimizing power supply design.
  • Thermal Shutdown and Current Limiting: Built-in protection for overheating and excessive current.
  • Adjustable Output Voltage: Offers a range from 1.23V to 37V for flexible application use.
More Information
Brand Generic
GTIN 1,
IC type N/A
