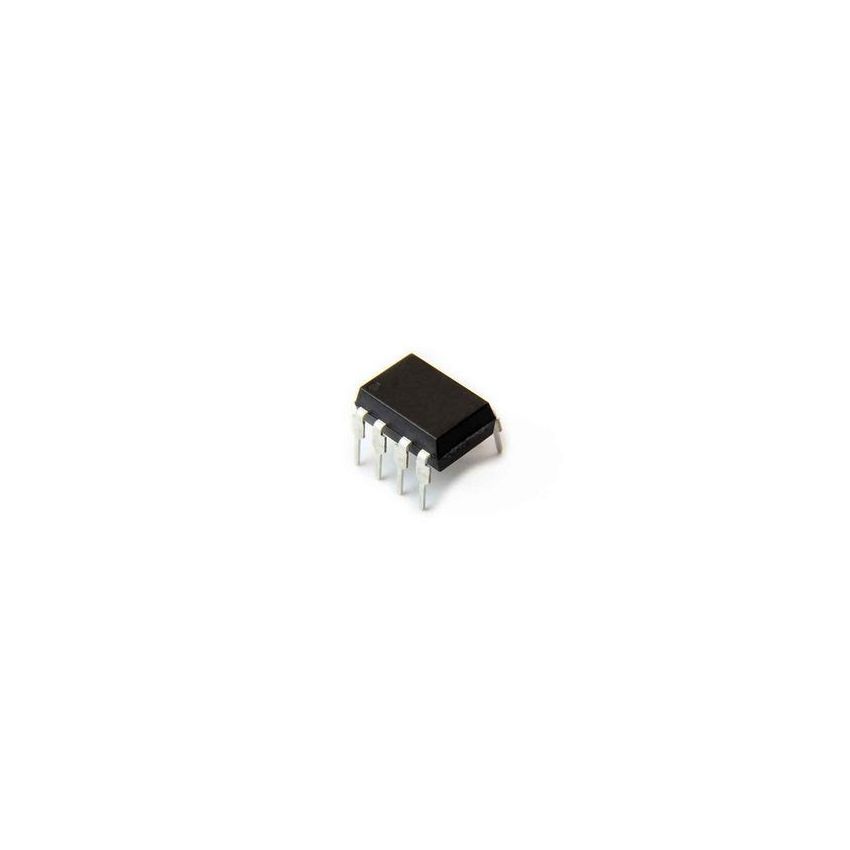

CP1512 Optocoupler DIP-8 5000Vrms Isolation Voltage 80V Vceo 50mA Ic High-Speed Output Logic

The CP1512 is a high-performance high-speed optocoupler, featuring a GaAs infrared LED optically coupled to a high-gain photodetector output transistor. This device is designed to provide galvanic isolation and high noise immunity in digital logic systems, making it ideal for switch-mode power supplies, microcontroller interface isolation, and motor control drivers.

Key Features:

• High-speed optocoupler with TTL-compatible logic output
• High isolation voltage of 5000Vrms for system protection
• Collector-Emitter Voltage rating up to 80V
• DIP-8 package, suitable for through-hole applications
• High common-mode transient immunity
• Forward voltage and current optimized for low-power use

Additional Specifications:

• Package Type: DIP-8
• Collecter Emmiter Voltage Output (VCEO): 80V
• Maximum Collector Current (Ic): 50 mA
• Number of Channels: 1
• Mounting Style: Through-Hole
• Isolation Voltage: 5000 Vrms
• Forward Voltage (Vf): 1.2V
• Forward Current (If): 20 mA
