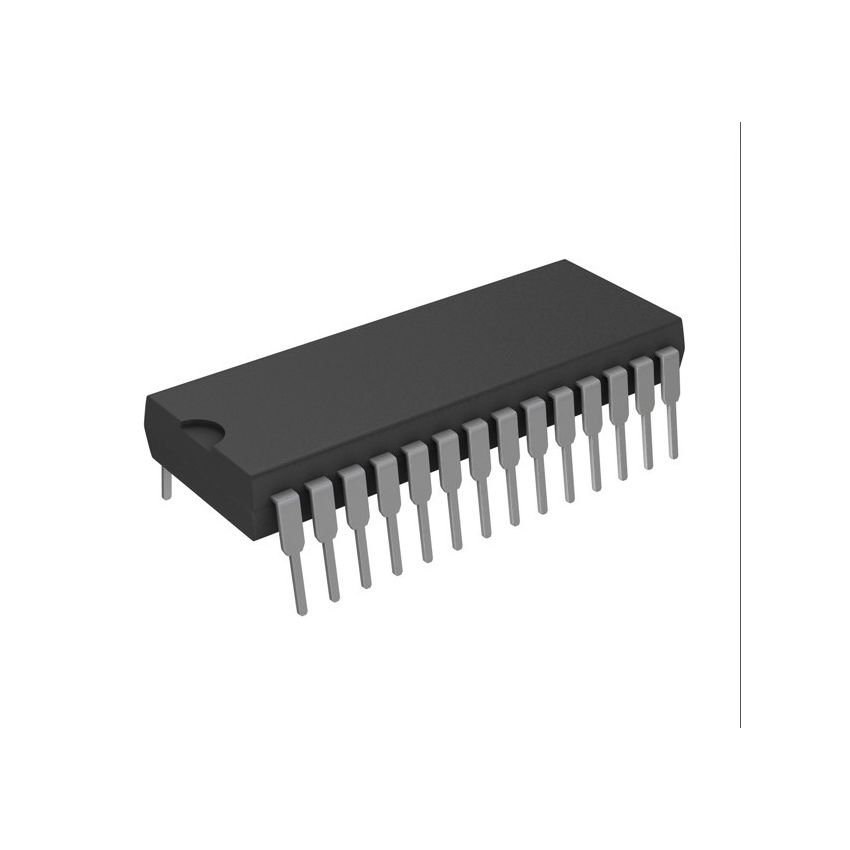

CDP6853E-DIP, CMOS Dual UART Interface-28-Pin DIP Package, Ideal for Serial Communication

The CDP6853E-DIP is an Asynchronous Communications Interface Adapter (ACIA) designed for easy implementation and program control of data communication between 8-bit microprocessor-based systems and data sets or modems.

This interface supports full duplex operation with buffered receiver and transmitter and provides internal baud rate generation with up to 115 programmable rates. It is compatible with MOTEL bus protocols and supports serial communication with full TTL compatibility. The CDP6853E-DIP operates at multiple baud rates and includes features such as serial echo mode, programmable interrupt control, and software compatibility for efficient data handling.

• Compatible with 8-bit Microprocessors - Supports multiple data buses with MOTEL bus compatibility.
• Full Duplex Operation - Buffered receiver and transmitter for efficient communication.
• Internal Baud Rate Generator - Offers 115 programmable baud rates from 50 to 19,200.
• Programmable Control - Features program-selectable serial echo mode, interrupt control, and external clock rate selection.
• Low Power Consumption - Operates with a single 3V to 6V power supply with full TTL compatibility.
• Versatile Operation Modes - Supports 4MHz, 2MHz, or 1MHz operation modes for flexible interfacing options.
