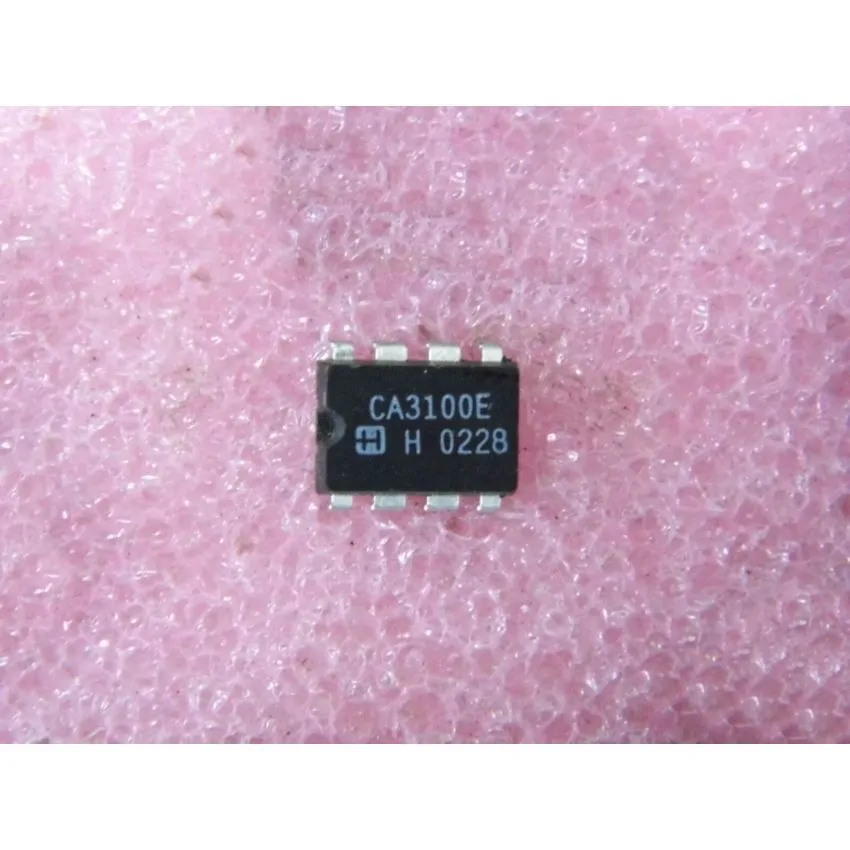

CA3100E ,Operational Amplifier, 38MHz Bandwidth, 15mA Output Current

The CA3100E is a high-speed, wideband operational amplifier designed for applications requiring high-frequency performance and low noise. It offers a unity gain bandwidth of 38 MHz and is optimized for high-speed signal amplification with a slew rate of 70V/µs. Featuring a large signal bandwidth of 1.2 MHz, this op-amp ensures excellent performance in demanding applications like video amplification, oscillators, and fast peak detection.

The CA3100E uses both bipolar and PMOS transistors in a single monolithic chip, ensuring efficient operation and high-speed response. It operates over a wide supply voltage range, making it suitable for various analog signal processing applications. Additionally, it includes internal phase compensation and offset null capability, allowing users to fine-tune the device for optimal performance.

Key Features :

• High Gain Bandwidth: 38 MHz unity gain crossover frequency for high-speed applications.
• Fast Slew Rate: 70V/µs ensures rapid response for fast signal amplification.
• Low Noise Operation: 8 µV RMS total wideband noise voltage, ideal for precision circuits.
• High Output Current: Capable of delivering up to ±15mA, suitable for driving low impedance loads.
• Wide Supply Range: Operates with supply voltages ranging from ±7V to ±18V, providing flexibility for various circuits.
• Phase Compensation: Integrated phase compensation and offset null adjustment for stable performance.
