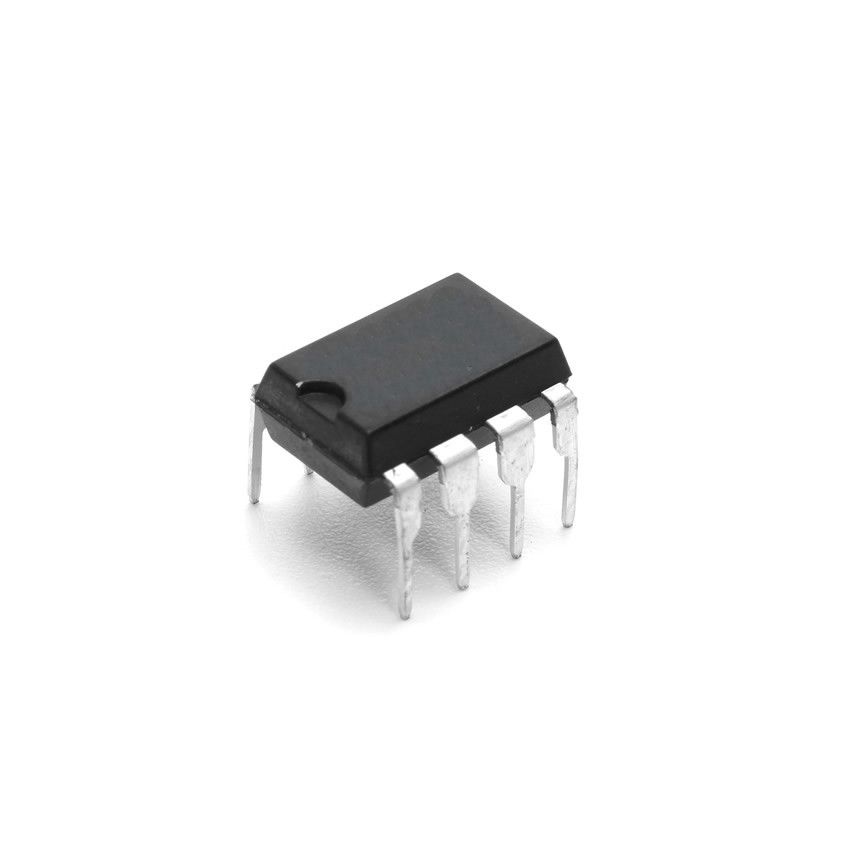

PC925L,High-Speed Photocoupler,DIP-8

The 6N136 Optocoupler is a high-performance optoisolator designed for fast and reliable data transfer while providing superior electrical isolation. Featuring a gallium arsenide infrared LED optically coupled to a high-speed photodetector, this optocoupler achieves data rates up to 2 MBd. Its compact SMD-8 package ensures efficient use of PCB space, making it ideal for densely packed designs.

With an isolation voltage of 5300 VRMS and low power requirements, the 6N136 offers robust performance in industrial, telecommunications, and consumer electronics applications. Whether used for power supply control, digital signal isolation, or motor drive circuits, this optocoupler provides dependable operation in demanding environments.

• High-Speed Performance: Ensures reliable data transmission up to 2 MBd.
• High Isolation Voltage: Rated at 5300 VRMS for safe and robust electrical isolation.
• Compact SMD-8 Package: Space-saving design for modern PCB layouts.
• Wide Compatibility: Suitable for TTL, CMOS, and other digital logic families.
• Low Input Current Requirements: Operates efficiently with a forward current of just 16mA.
• Versatile Applications: Ideal for industrial automation, power supplies, and signal isolation.
