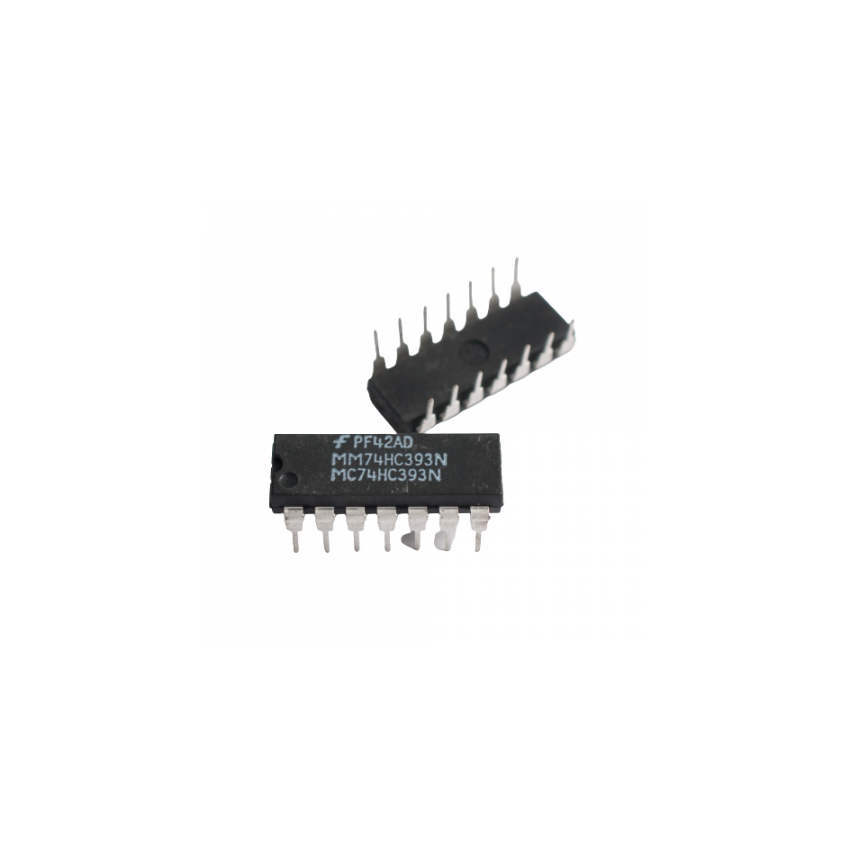

MC74HC393N,Dual 4-Bit Binary Ripple Counter, DIP-14

The MC74HC393N is a dual 4-bit binary ripple counter, designed for timing, frequency division, and digital logic applications. This IC consists of two independent ripple counters, each capable of binary counting up to 4 bits. With a maximum clock frequency of 32 MHz, the MC74HC393N is suitable for high-speed digital applications. The asynchronous reset allows for immediate clearing of the counter state, making it a reliable component in clock generation, pulse counting, and frequency divider circuits. Operating over a voltage range of 2V to 6V, this counter ensures compatibility with both low-power and standard CMOS logic families. Its DIP-14 package makes it easy to integrate into through-hole PCB designs, facilitating robust and long-lasting circuit implementations.

• Dual 4-Bit Binary Ripple Counter – Contains two independent 4-bit counters for versatile timing and counting applications.
• Asynchronous Reset Function – Allows immediate reset of the counter for precise control.
• Wide Voltage Range – Operates efficiently between 2V to 6V, ensuring compatibility with various logic circuits​
• High-Speed Performance – Supports a maximum clock frequency of 32 MHz, making it ideal for high-frequency applications​
• Low Power CMOS Design – Consumes minimal power, making it suitable for battery-operated systems.
• DIP-14 Package for Easy Integration – Through-hole design ensures convenient mounting on standard PCBs and breadboards.
