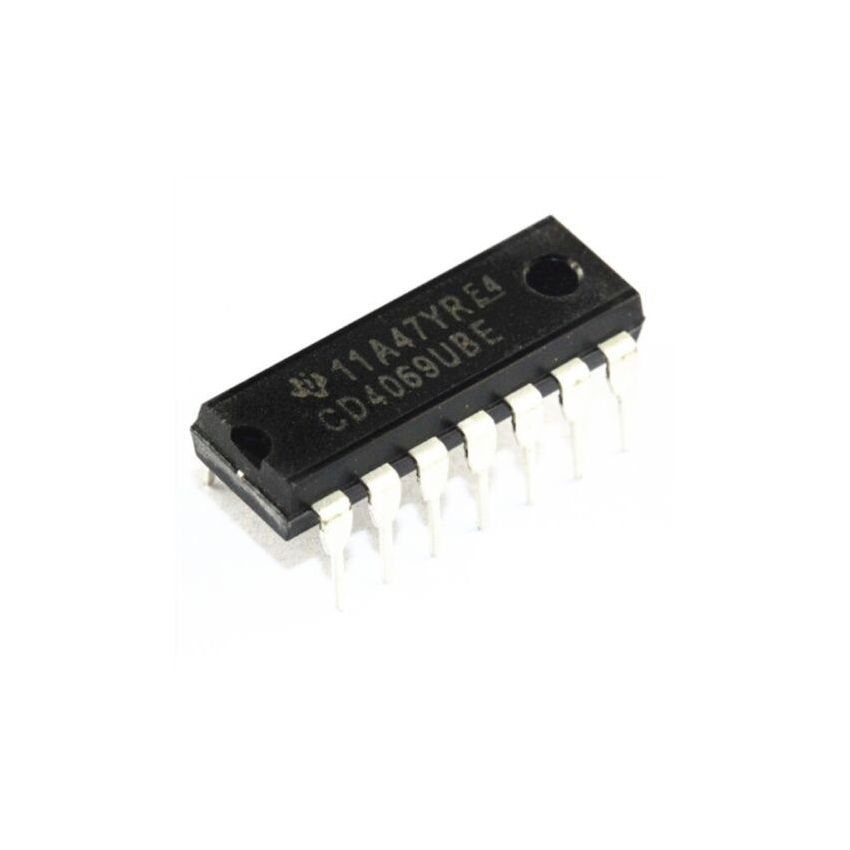

CD4069uBE ,Hex Inverter, 18V Max Supply Voltage - DIP-14

The CD4069UBE is a CMOS-based hex inverter featuring six independent inverters within a single package. Each inverter functions with standardized symmetrical output characteristics, making it suitable for a variety of general-purpose digital logic applications such as logic inversion, pulse shaping, and oscillators.

The device operates at a medium speed with a typical propagation delay of 55 ns at 10V. It supports a wide supply voltage range from 3V to 18V, making it highly versatile for different environments. The CD4069UBE is fully tested for quiescent current at 20V, and with a maximum input current of 1µA at 18V over a full temperature range (-55°C to 125°C), it provides excellent reliability in harsh environments.

Applications include oscillators, logic inversion, high-input impedance amplifiers, and more. It complies with JEDEC standards for CMOS devices.
