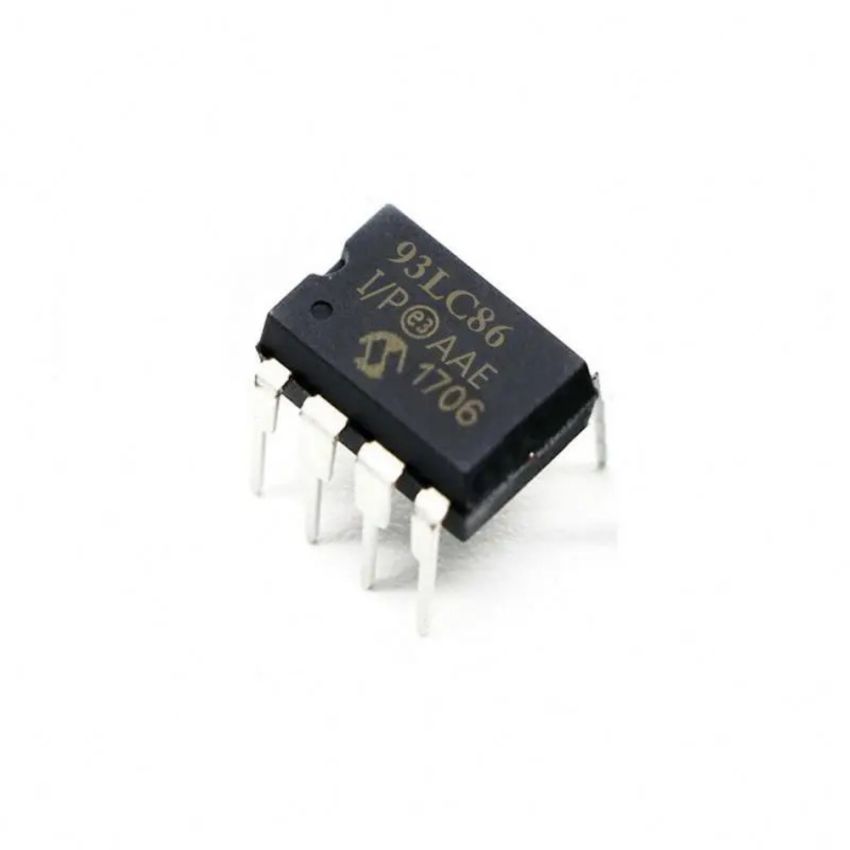

3LC86.P, 16Kb Microwire Serial EEPROM, 2.5V-6.0V, 3-Wire Interface,DIP-8

The 93LC86.P is a 16Kb (2048 x 8-bit or 1024 x 16-bit) Microwire Serial Electrically Erasable Programmable Read-Only Memory (EEPROM) designed for applications requiring reliable and energy-efficient non-volatile storage. Featuring a 3-wire Microwire interface, it allows seamless communication with microcontrollers and embedded systems.

With an operating voltage range of 2.5V to 6.0V, the 93LC86.P supports both low-power and high-performance applications. It features a self-timed erase/write cycle, with built-in power-on/off data protection circuitry. The write protect function (PE pin) ensures secure data storage by preventing unintended modifications.

Designed for high endurance, the 93LC86.P offers 10 million erase/write cycles and ensures 200-year data retention, making it an optimal solution for industrial control systems, consumer electronics, and embedded computing. The SOIC-8 and DIP-8 package options allow easy integration into a variety of PCB designs.

• 16Kb EEPROM Storage: Organized as 2048 x 8-bit or 1024 x 16-bit, configurable via the ORG pin.
• Microwire 3-Wire Serial Interface: Compatible with standard serial EEPROM communication protocols.
• Wide Voltage Range: Operates efficiently between 2.5V to 6.0V, supporting both low-power and standard-voltage applications.
• High Endurance & Retention: Supports 10 million erase/write cycles and ensures 200-year data retention.
• Write Protection Feature: Includes a Program Enable (PE) pin to prevent accidental data modifications.
• Compact Packaging: Available in SOIC-8 and DIP-8 packages, ideal for space-constrained applications.
