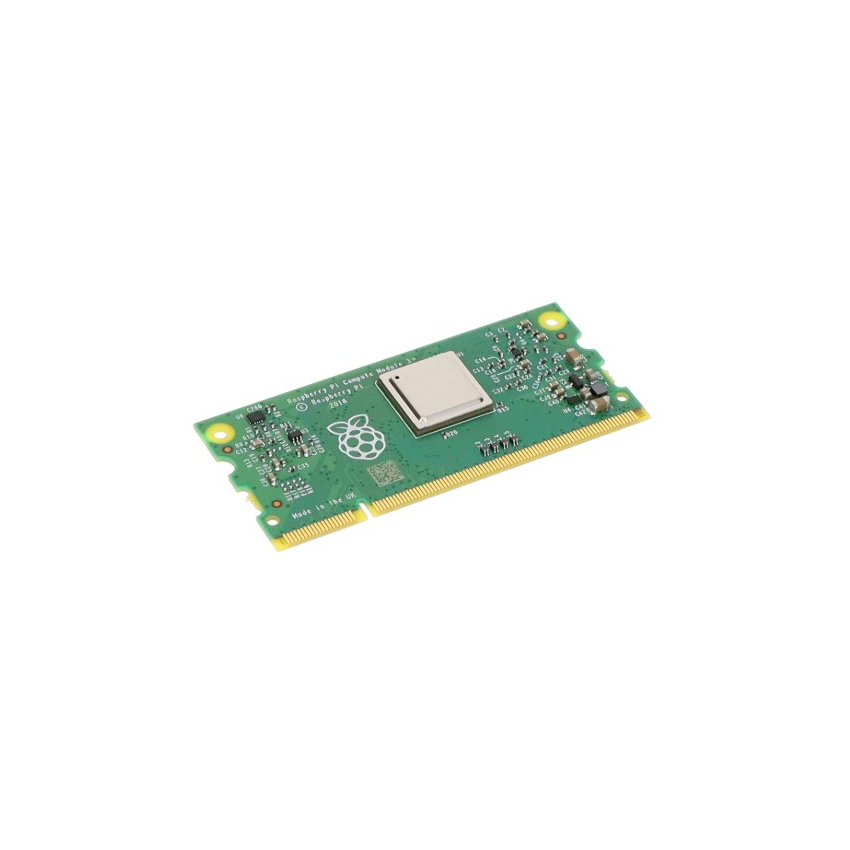

The Raspberry Pi Compute Module 3+ (CM3+) is a compact and powerful system-on-module designed for embedded and industrial applications requiring the flexibility and performance of the Raspberry Pi platform in a production-ready form factor. Built around the Broadcom BCM2837B0 processor, the CM3+ features a quad-core ARM Cortex-A53 CPU running at 1.2GHz, delivering reliable performance for a wide range of applications including IoT gateways, automation systems, digital signage, and custom hardware solutions.
This module is available in multiple storage configurations, including 8GB, 16GB, and 32GB eMMC variants, as well as a Lite version without onboard storage for external boot solutions. With 1GB LPDDR2 RAM and full access to the Raspberry Pi SoC interfaces, the CM3+ offers extensive connectivity through its 200-pin DDR2 SODIMM connector, exposing interfaces such as HDMI, USB 2.0, CSI camera, DSI display, I2C, SPI, UART, and GPIO.
Designed for seamless integration, the CM3+ is a drop-in replacement for the Compute Module 3, ensuring compatibility with existing carrier boards while providing improved reliability and extended product lifecycle support. Its small footprint and low power consumption make it ideal for space-constrained and energy-efficient embedded systems.
Key Features:
- High-performance quad-core ARM Cortex-A53 processor running at 1.2GHz for efficient embedded computing applications.
- 1GB LPDDR2 RAM ensuring stable multitasking and system performance across industrial and IoT workloads.
- Multiple storage options including 8GB, 16GB, and 32GB eMMC, plus Lite version for external storage flexibility.
- Full access to Raspberry Pi interfaces including HDMI, USB 2.0, CSI, DSI, I2C, SPI, UART, and GPIO through SODIMM connector.
- Compact DDR2 SODIMM form factor enabling easy integration into custom carrier boards and embedded designs.
- Long-term availability with industrial-grade reliability, making it suitable for commercial and production environments.
Additional Details:
- Type: System-on-Module (SoM)
- Processor: Broadcom BCM2837B0 Quad-Core Cortex-A53
- Operating Voltage: 5V
- Current Consumption: Low power embedded design (application dependent)
- Communication Interface: I2C, SPI, UART, USB 2.0, HDMI, CSI, DSI
Compatibility:
- Compatible with custom carrier boards designed for Compute Module series
- Supports Raspberry Pi OS and other Linux-based systems
- Suitable for industrial automation, IoT, robotics, and embedded solutions
