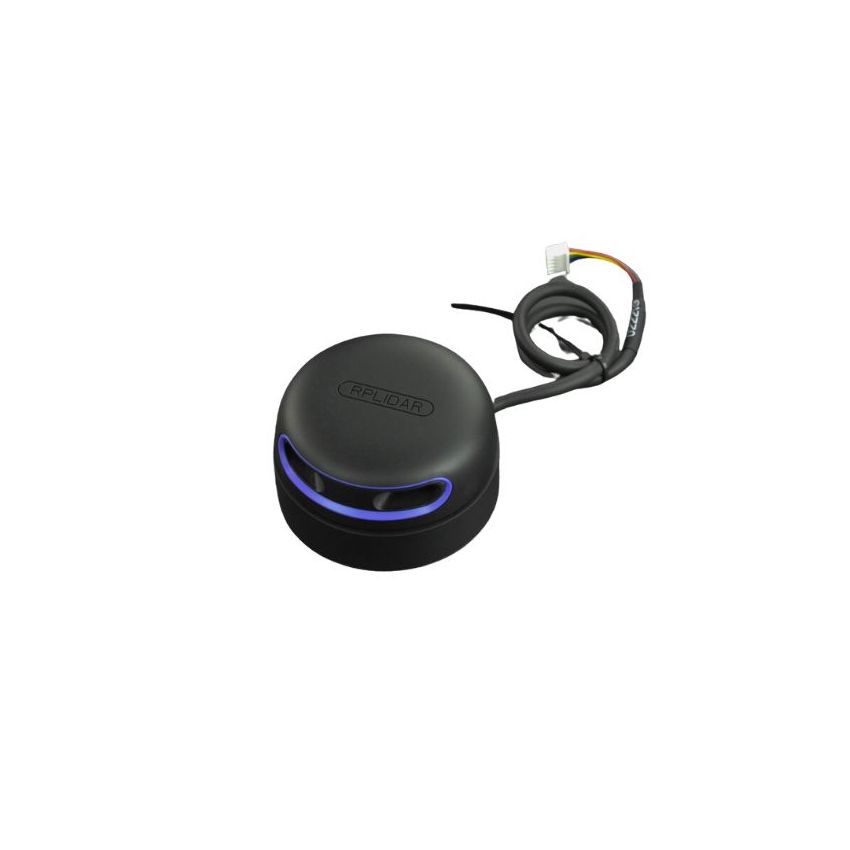

RPLIDAR A2M8 - 360 Degree Laser Scanner Development Kit

SKU
TPOx0062
Brand
In stock
Only 16 left
Add to Wish List

Guarantee safe & secure checkout

Description :

- The core of RPLIDAR A2 runs clockwise to perform a 360-degree omnidirectional laser range scanning for its surrounding environment and then generate an outline map for the environment.
- 4 cm Ultra-thin: With the custom special parts and the carefully designed internal mechanical system, the RPLIDAR A2 keeps its excellent performance while cutting the thickness to only 4cm. It is ideal for all kinds of service robots.
- The sample rate of LIDAR directly decides whether the robot can map quickly and accurately. RPLIDAR improves the internal optical design and algorithm system to make the sample rate up to 8000 times, which is the highest in the current economical LIDAR industry.
- 360-degree laser range scanning: The core of RPLIDAR A2 runs clockwise to perform a 360-degree omnidirectional laser range scanning for its surrounding environment and then generate an outline map for the environment.
- Low Noise, Brushless Motor New Non-contact Drive: Compared with the traditional belt drive mode, RPLIDAR A2 uses the self-designed brushless motor to reduce mechanical friction in running. Therefore, the RPLIDAR A2 can run smoothly without any noise.
- 16m/12m Range Radius: With algorithm optimization, RPLIDAR improves the range radius 16 meters, which will provide more data due to a larger environmental outline map
- OPTMAG Original Design: Most traditional non-solid LIDARs use slip rings to transfer power and data information, however, they only have thousands of hours of life due to mechanical wear out. Slamtec has integrated wireless power and optical communication technology to self-design the OPTMAG technology, which breaks the life limitation of the traditional LIDAR systems. It fixes the electrical connection failure caused by the physical wearing out so as to prolong the lifespan.
- The RPLIDAR A2 system adopts low-power infrared laser light as its light source and drives it by using a modulated pulse. The laser emits light in a very short time frame which can ensure its safety for humans and pets. It has already reached the Class 1 Safety Standard.
- RPLIDAR A2 adopts the laser triangulation ranging principle, and with a high-speed RPVision3.0 range engine, it measures distance data 8000 times per second and also has excellent performance in a long distances.
- Five years ultra-long life: With brushless motor and OPTMAG technology, the RPLIDAR will work for 5 years(24 hours every day).

- SPECIFICATION

•Model: RPLDIAR-A2M12
•Measuring Range: 0.2m - 12m
•Sampling Frequency: 16K
•Rotational Speed: 10Hz (5Hz-15Hz)
•Angular Resolution: 0.225°
•Scan Field Flatness: ±1.5°
•Proof Level: Class 1
•System Voltage: 5V
•System Current: 450mA - 600mA
•Power Consumption: 2.25W-3W
•Output: UART Serial (256000bps)
•Temperature Range: 0℃-40℃
•Angular Range: 360°
•Range Resolution: ≤1% of the range(≤12m) ≤2% of the range(12m~16m)
•Accuracy: 1% of the range(≤3 m) 2% of the range(3-5 m) 2.5% of the range(5-25m)
