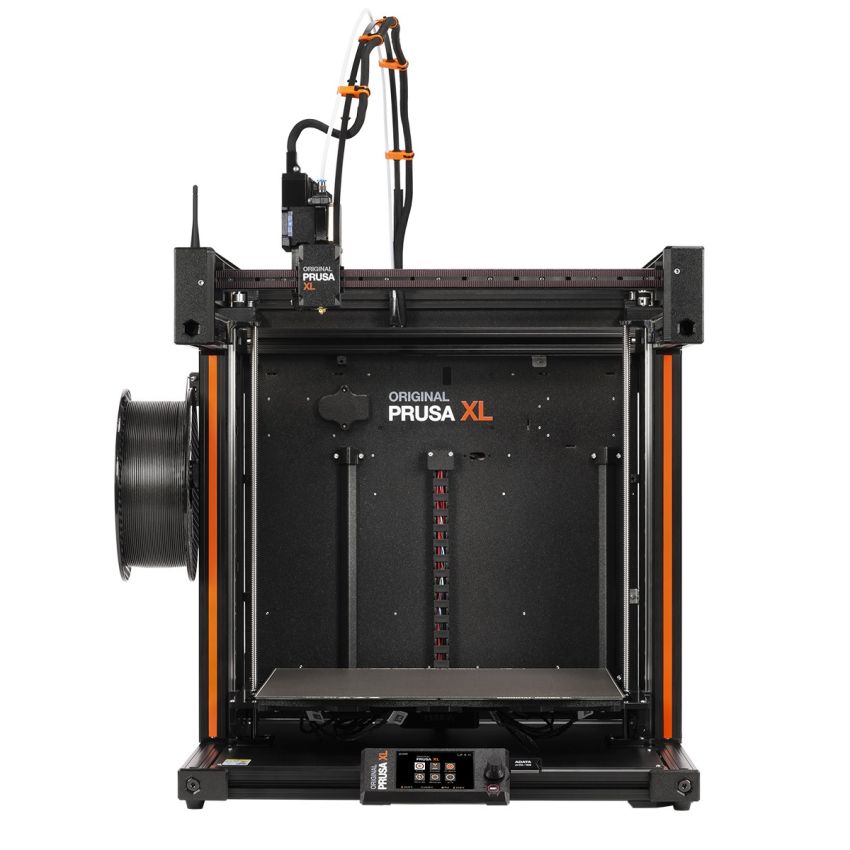

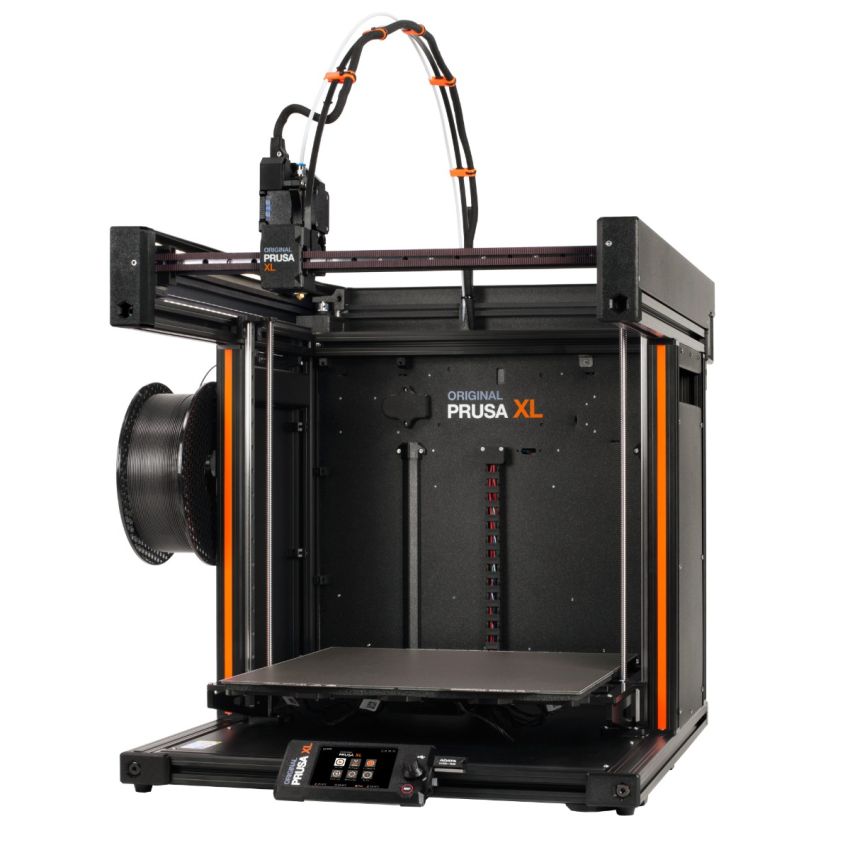

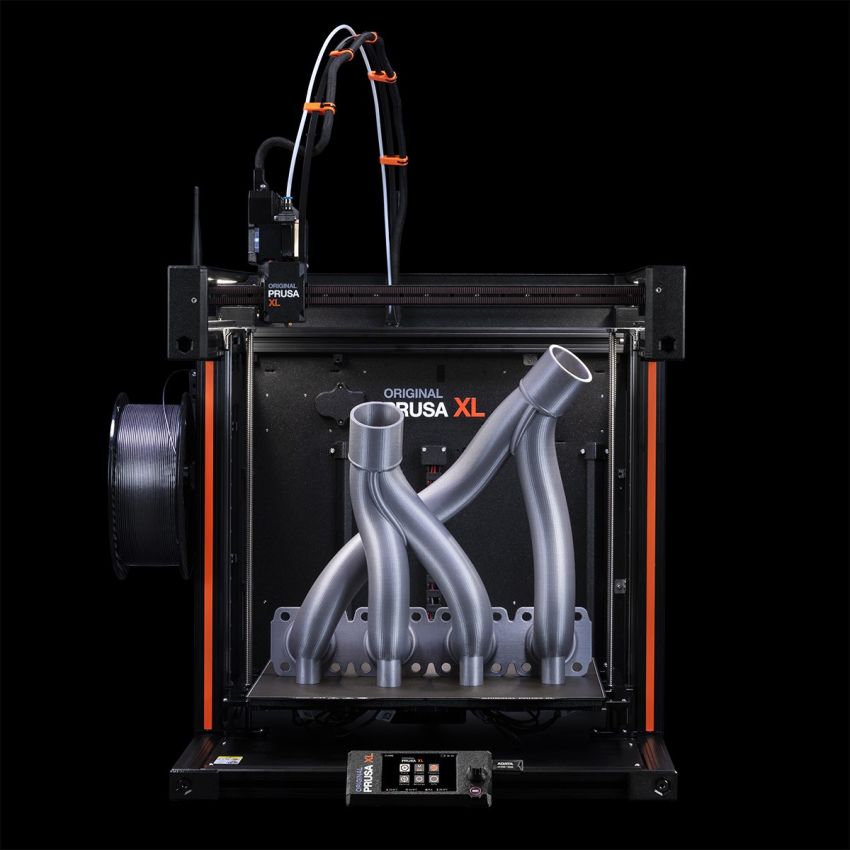

The Original Prusa XL 3D Printer is a next-generation CoreXY-based machine engineered for professionals, creators, and innovators who demand industrial-grade performance in a desktop footprint. With a massive 360 × 360 × 360 mm build volume, the Prusa XL breaks limitations in both scale and versatility, allowing users to prototype large parts or print multiple smaller components in one batch with exceptional precision.
Built around a rigid aluminum frame, the XL introduces a segmented heated bed system that activates only the areas needed—dramatically reducing power consumption. It supports up to five independent toolheads, enabling complex multi-material or multi-color prints without sacrificing speed or reliability. Combined with a new loadcell-based first-layer calibration and a redesigned modular Nextruder system, the XL delivers repeatable, hands-free calibration and top-tier print consistency.
Key Features:
• Multi-Toolhead System: Supports up to 5 toolheads for multi-material and multi-color printing.
• CoreXY Motion System: Provides high-speed and precise movements.
• Segmented Heated Bed: Heats only the necessary sections, saving energy.
• Automatic Bed Leveling: Utilizes a Loadcell Sensor for precise first-layer calibration.
• Filament Sensor: Detects filament presence to prevent print failures.
• Power Panic: Resumes printing after power outages.
• Silent Operation: Features Trinamic 0.9° stepper drivers for quieter printing.
• Modular Design: Supports future upgrades and modifications.
Technical Specifications:
• Print Technology: Fused Deposition Modeling (FDM)
• Build Volume: 360 × 360 × 360 mm (14.17 × 14.17 × 14.17 in)
• Layer Height: 0.10 – 0.30 mm
• Nozzle Diameter: 0.4 mm (Easy-to-swap)
• Filament Diameter: 1.75 mm
• Maximum Nozzle Temperature: 290 °C
• Maximum Heated Bed Temperature: 120 °C
• Print Bed: Segmented Magnetic Heated Bed with Removable PEI Spring Steel Sheet
• Frame Construction: Aluminum Extrusions with 3D Printed Parts
• Connectivity: USB, LAN, Wi-Fi, Prusa Connect App
• Control Interface: 3.5"" Full-Color Graphic LCD with Rotary Knob
• Firmware: 32-bit xBuddy Board with Marlin Firmware
• Dimensions: 700 × 900 × 720 mm (27.56 × 35.43 × 28.35 in)
• Weight: 25.3 kg (55.78 lbs)
Supported Materials
• PLA
• PETG
• ABS
• ASA
• TPU
• Polycarbonate (PC)
• Nylon
• Polypropylene (PP)
• Composite Materials (e.g., Carbon Fiber, Woodfill)
Technical Specifications
• Print Technology: Fused Deposition Modeling (FDM)
• Build Volume: 360 × 360 × 360 mm (14.17 × 14.17 × 14.17 in)
• Layer Height: 0.10 – 0.30 mm
• Nozzle Diameter: 0.4 mm (Easy-to-swap)
• Filament Diameter: 1.75 mm
• Maximum Nozzle Temperature: 290 °C
• Maximum Heated Bed Temperature: 120 °C
• Print Bed: Segmented Magnetic Heated Bed with Removable PEI Spring Steel Sheet
• Frame Construction: Aluminum Extrusions with 3D Printed Parts
• Connectivity: USB, LAN, Wi-Fi, Prusa Connect App
• Control Interface: 3.5"" Full-Color Graphic LCD with Rotary Knob
• Firmware: 32-bit xBuddy Board with Marlin Firmware
• Dimensions: 700 × 900 × 720 mm (27.56 × 35.43 × 28.35 in)
• Weight: 25.3 kg (55.78 lbs)
What's Included
• Original Prusa XL 3D Printer (Semi-Assembled or Fully Assembled)
• Removable PEI Spring Steel Sheet
• Power Cable
• USB Drive with Sample Prints (G-codes)
• 3D Printing Handbook
• Toolset: Uni-wrench, 13-16 Wrench, Nose Pliers, Allen and Torx Keys
