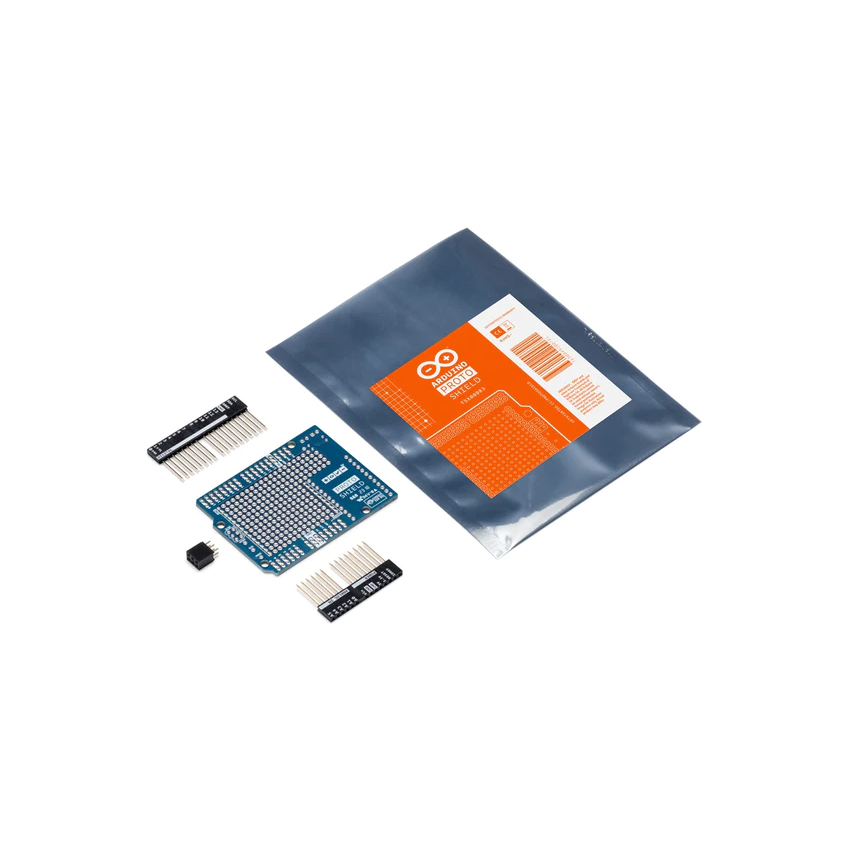

PROTO SHIELD REV3 (UNO SIZE)

In stock
Add to Wish List

Guarantee safe & secure checkout

Specifications:

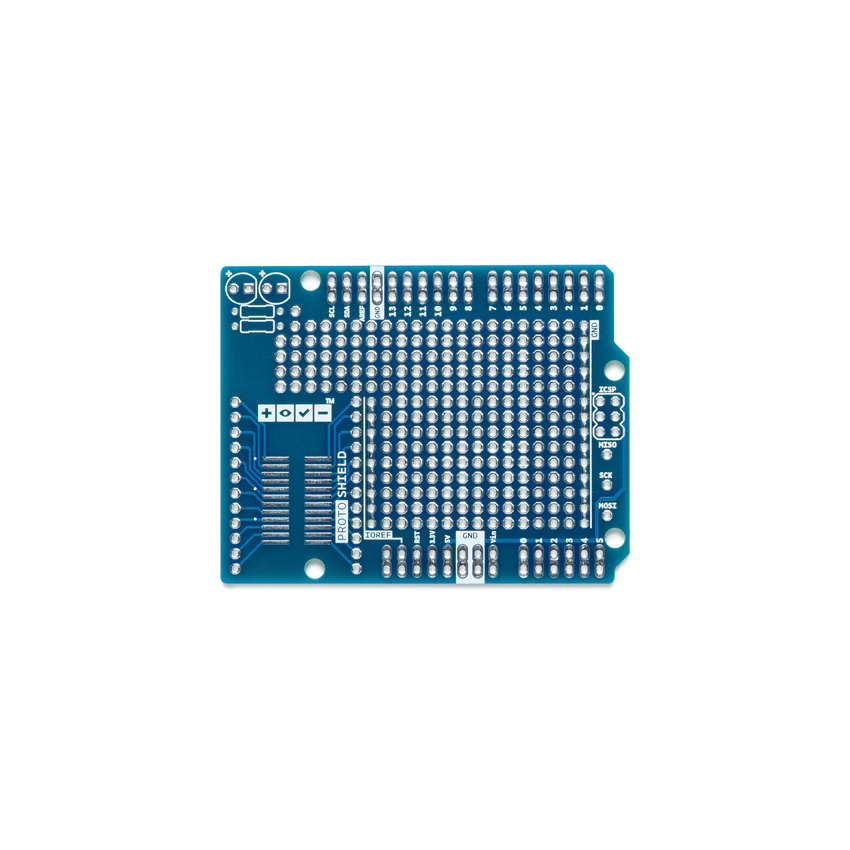

The Proto Shield Rev3 (Uno Size) is designed to facilitate the creation of custom circuits for your Arduino projects. It offers a versatile prototyping area for both Through-Hole (TH) and Surface Mount Device (SMD) components, allowing you to easily solder ICs and other components for testing with your Arduino board.



  • Arduino Pinout Compatibility: It aligns with the 1.0 Arduino pinout standard.
  • ICSP Connector Footprint: For interfacing with ICSP signals.
  • LEDs and Resistors Footprint: Includes footprints for two LEDs and resistors.
  • Power Lines: Features IOREF and GND power lines.
  • SPI Signals Pads: Offers breakout pads for SPI signals, catering to boards that have SPI only on the ICSP header, like the Arduino Zero.
  • SMD Footprint: Designed to accommodate a 24-pin SOIC integrated circuit with a 50 mils pitch.
  • Physical Dimensions: The maximum length and width of the Proto Shield PCB are 2.7 inches and 2.1 inches, respectively, with three screw holes for attachment to surfaces or cases.



Learning Resources:



Arduino UNO R4 Shield Guide



Applications and Projects:



The Proto Shield Rev3 (Uno Size) is a versatile platform for developing custom circuits for Arduino projects, facilitating a broad spectrum of applications across different fields. Here's how it can be utilized across various domains:



  • Embedded Development: Engineers and developers can use the Proto Shield Rev3 to prototype and test new embedded systems before final production. Its compatibility with Arduino makes it ideal for rapid prototyping and experimentation.
  • Robotics: For hobbyists and researchers in robotics, the shield offers a convenient way to create custom control circuits for robots. Its ability to support both through-hole and surface-mount components allows for flexible design choices.
  • Human Machine Interface (HMI): Designers working on interfaces between humans and machines can use the Proto Shield Rev3 to prototype controls and feedback systems, such as buttons, switches, and display elements.
  • Electronics Laboratories: The shield's prototyping area, power lines, and LED pads make it an excellent tool for electronics labs where various circuits and components are tested frequently.
  • Automation: In automation projects, the Proto Shield Rev3 can be used to develop custom control circuits for managing automated processes, sensors, and actuators.
