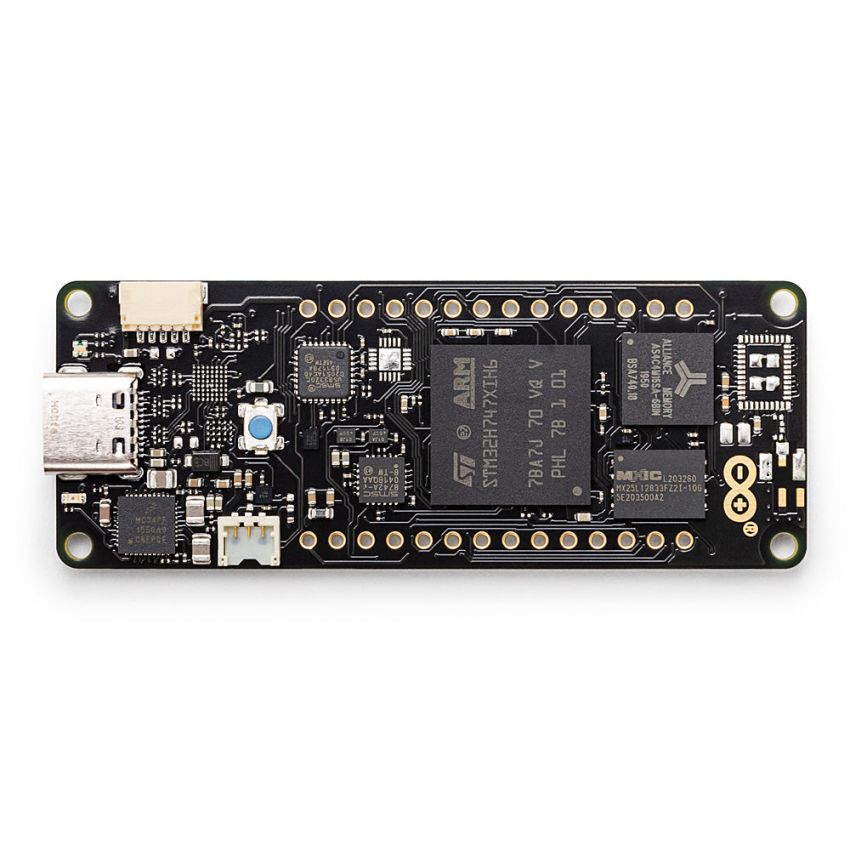

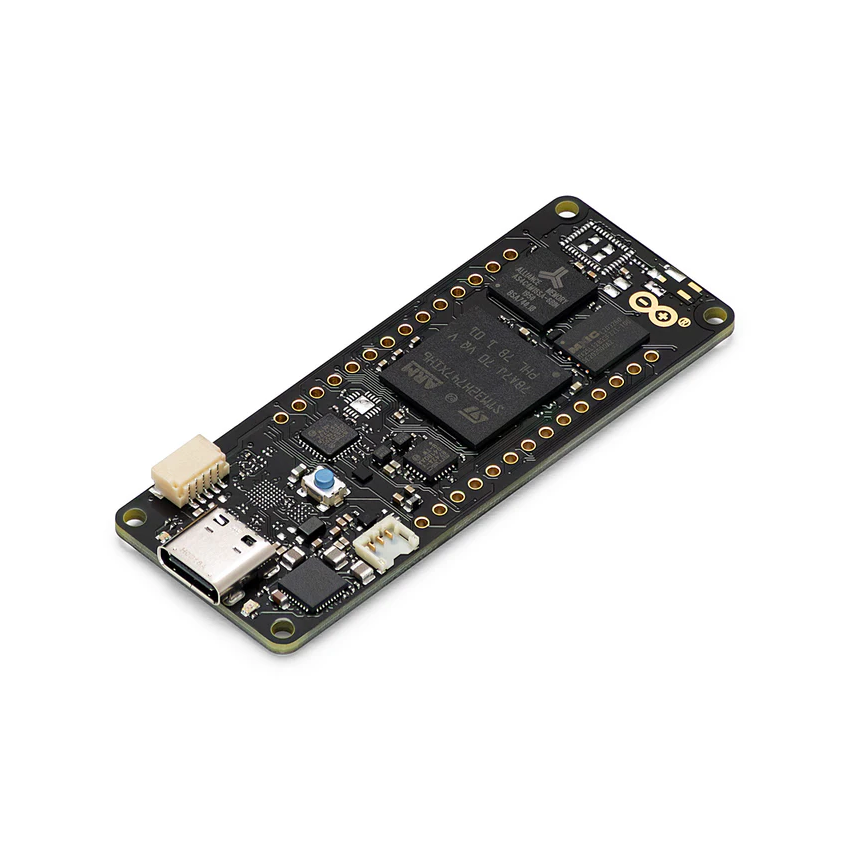

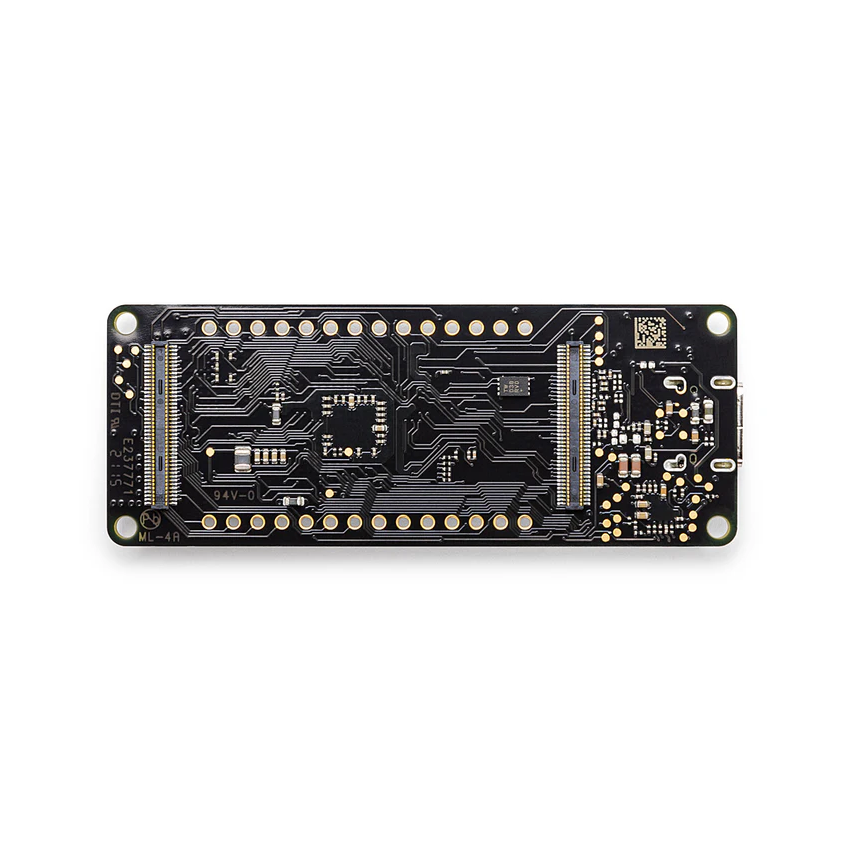

The Portenta H7 Lite follows the Arduino MKR form factor, but enhanced with the Portenta family 80 pin high-density connector. Program it with high-level languages and AI while performing low-latency operations on its customizable hardware.

SPECIFICATIONS :

-Microcontroller STM32H747XI dual Cortex-M7 M4 32bit low power Arm MCU
-USB connector USB-C
-Digital I/O Pins 22
-Analog input pins 8
-PWM pins 10
-Secure element ATECC608
-UART Yes
-I2C Yes
-SPI Yes
-Circuit operating voltage 3.3V
-Input voltage (VIN) 5V
-DC Current per I/O Pin 8 mA
-Clock speed :
Main core 480 MHz
Second core 240 MHz
-Memory : ST STM32H747XI 2MB Flash, 1MB RAM
-Width 25 mm
-Length 66 mm
