Description:

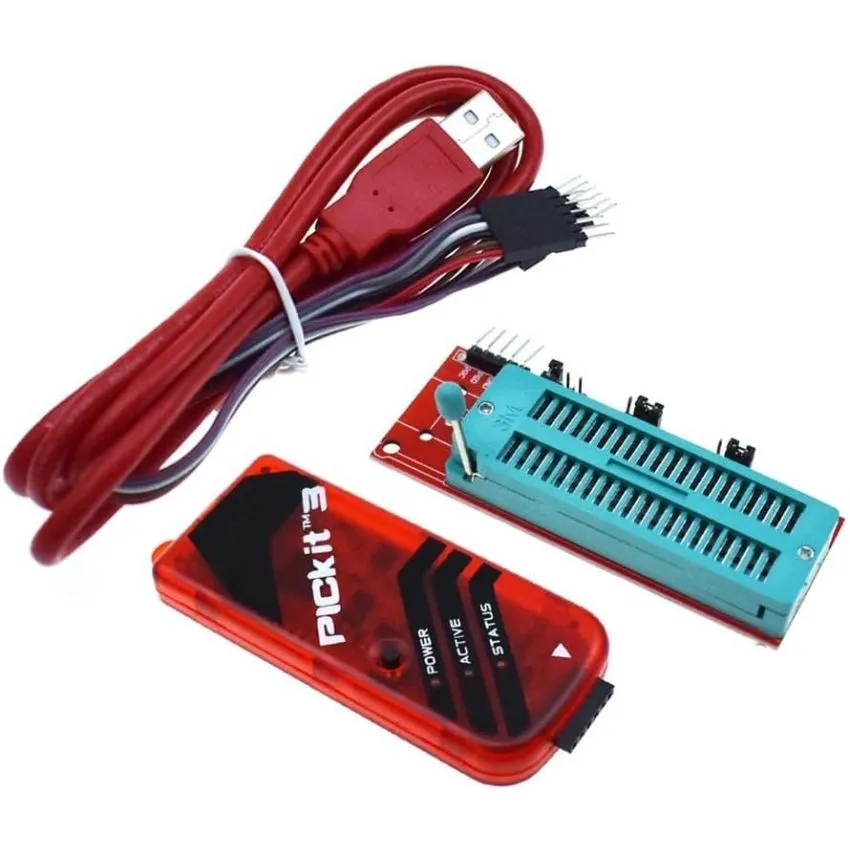

The PICkit 3 In-Circuit Debugger/Programmer is a low-cost hardware debugger and programmer for PIC microcontrollers. It is not recommended for new designs and no new device support will be added after June 1, 2019. The MPLAB PICkit 4 is recommended for new designs. The PICkit 3 offers in-circuit debugging without the need for additional hardware or adapters and can reprogram any PIC microcontroller with a simple push of a button. The MPLAB PICkit 3 is connected to a PC using a full-speed USB interface and can be connected to the target using a debug connector for in-circuit debugging and In-Circuit Serial Programming. Note that PICkit 3 is only for development purposes and not for production programming.

Features:

•USB (Full speed 12 Mbits/s interface to host PC)
•Real-time execution
•MPLAB IDE compatible (free copy included)
•Built-in over-voltage/short circuit monitor
•Firmware upgradeable from PC/web download
•Totally enclosed
•Supports low voltage to 2.0 volts (2.0v to 6.0v range)
•Diagnostic LEDs (power, busy, error)
•Read/write program and data memory of the microcontroller
•Erase of program memory space with verification
•Freeze-peripherals at breakpoint
•Program up to 512K byte flash with the Programmer-to-Go*
•Header Information

*Please consult the PICkit 3 readme to determine Programmer To Go device support limitations.

Some 8-, 14- and 18-pin devices use small header boards with a special MCU for debugging. This special MCU has extra pins for PICkit 3 communication and therefore allows the use of all pins on the part for the application. The header board is not used or needed for programming. However, when debugging these devices the header must be used
