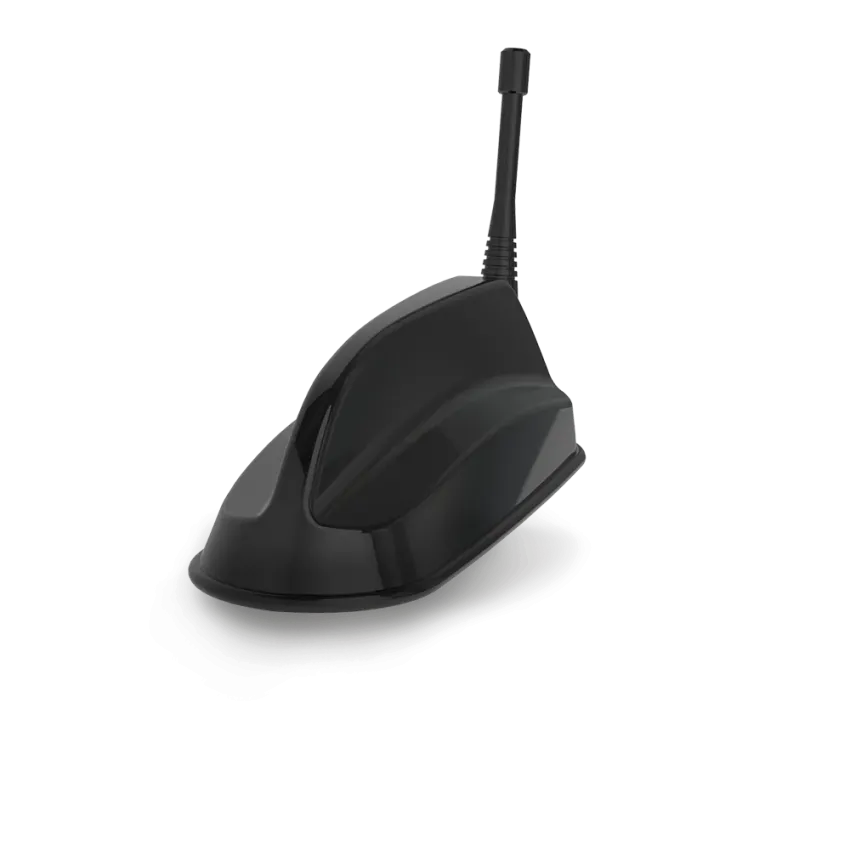

Introducing the GPSD 'MiMo Sharkeeâ„¢,' a versatile and compact shark fin style solution designed to cater to various applications, including MiMo Cellular, MiMo WiFi, and GPS functionalities, while also supporting VHF and UHF capabilities. This all-in-one antenna is a perfect fit for public safety, industrial, and transport applications where efficiency, cost-effectiveness, and robustness are paramount.



The GPSD MiMo Sharkee™ features a sleek OEM-style shark fin housing that seamlessly integrates 2×2 MiMo antenna function for 4G/3G/2G, accompanied by an active antenna with 26dB gain LNA for GPS/GLONASS/Galileo/Beidou. Additionally, it includes an integral stud mount to support an external antenna whip, compatible with various VHF, UHF, or 700/800MHz antennas.



For enhanced connectivity, an alternate version of the GPSD is available, which incorporates 2×2 MiMo antenna function for 2.4/5.8GHz WiFi, making it even more versatile for WiFi-enabled applications.



The GPSD's shark fin style design ensures discreet installation, making it suitable for both overt and covert purposes. It requires only a single hole mounting, which not only reduces vehicle damage but also saves installation time and cost. Moreover, its inconspicuous appearance preserves a vehicle's resale value while providing exceptional antenna performance.

Electrical Specifications:

Pattern Omnidirectional

Cellular LTE Elements 2 x 2 MIMO

WIFI Elements No; 2 x 2 MIMO

UHF Elements No

GPS DATA

GPS Frequency Range 1562-1612MHz

LNA GAIN (dB) 26

Number of GPS Elements 1 Module



Mechanical Specifications:

Colour Black

Length 170 (mm) | 6.69 (in)

Width 60 (mm) | 2.36 (in)

Height 50 (mm) | 1.97 (in)

Operating Temperature -40°/ 80°C (-40.0°/ 176.0°F)

Cable Specifications:

Cable Length – LTE 0.3 (m) | 0.98 (ft)

Cable length – GPS 0.3 (m) | 0.98 (ft)

Cable Length – WIFI 0.3 (m) | 0.98 (ft)

Cable Type (LTE) FR RG174

Cable Type (GPS) FR RG174

Cable Type (WIFI) FR RG174

Termination Specifications:

Connector (WIFI) SMA (f)

Connector (GPS) FME (f)

Connector (LTE) SMA (m)

Mounting Specifications:

Mounting Type Fixed Panel

Mounting Type Temp Magnetic

Mounting Methods Magnetic; Panel

Approvals:

IP Rating IP66

Cable Flammability EN45545-2 HL3; UN ECE R118; EN6722

Technology Specifications:

Technology GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; FirstNet; GNSS; WIFI MIMO; WIFI
