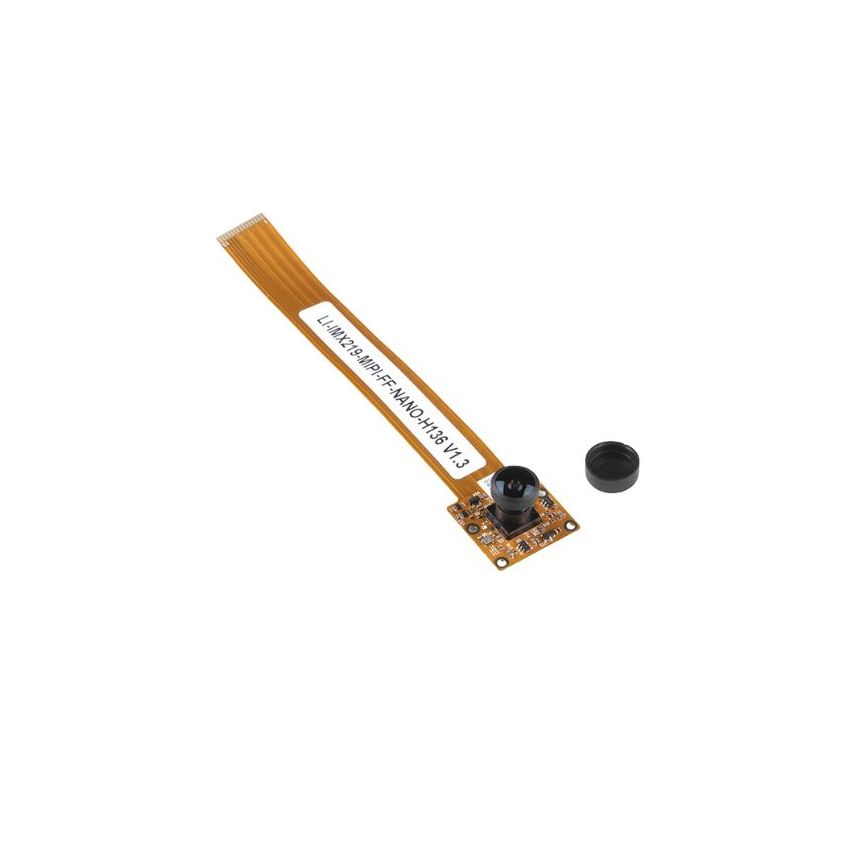

DEV-16260 , Leopard Imaging Camera - 136 Degree FOV

The Leopard Imaging Camera is a wide-angle 136° FOV (Field of View) camera module designed for machine vision applications, specifically compatible with the NVIDIA Jetson Nano Developer Kit. It features a Sony IMX219 8.08MP color sensor and a fixed-focus (M8) lens, utilizing a CSI-2 MIPI 2-lane data output interface.

Key Features

■ Field of View (FOV): 136degree

■ Module Size: 150mm x 25mm (L x W)

■ Sensor Type: Sony IMX219 8.08MP color sensor

■ Active Pixels: 3280 (H) x 2464 (V)

■ Image Size: Diagonal 4.60mm (Type 1/4.0)

■ F/No: 2.0 (H136)

■ Focal Length: 1.58mm (H136)

■ TV Distortion: Less than -15percent (H136)

■ Focusing Range: 30cm - Infinity

■ Lens Type: Fixed Focus (M8 lens)

■ Pixel Size: 1.12um x 1.12um

■ Data Output Interface: CSI-2 MIPI 2-lane

■ IR Cutter Filter: Yes

Applications

This camera is ideal for machine vision applications and is the same camera included in the SparkFun Jetbot v2.1 Kit.
