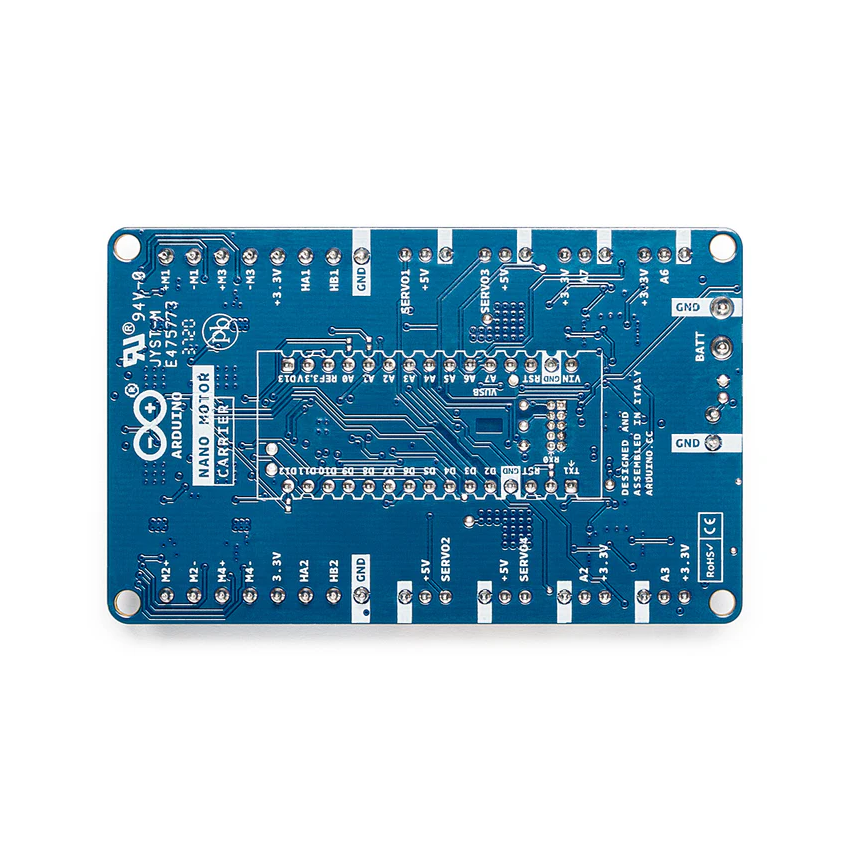

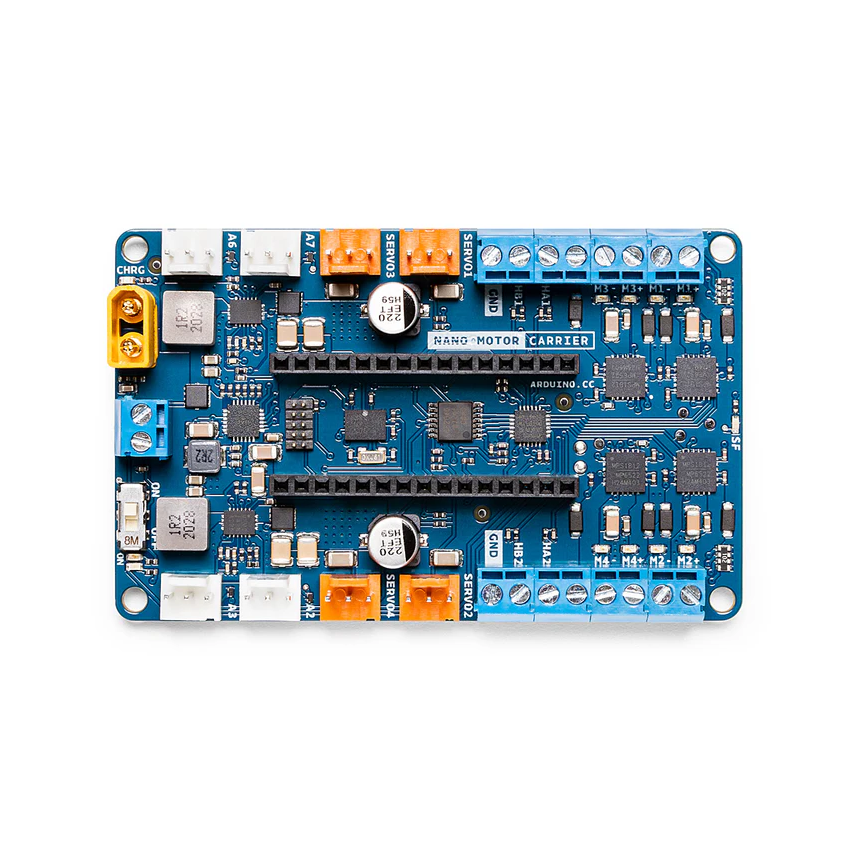

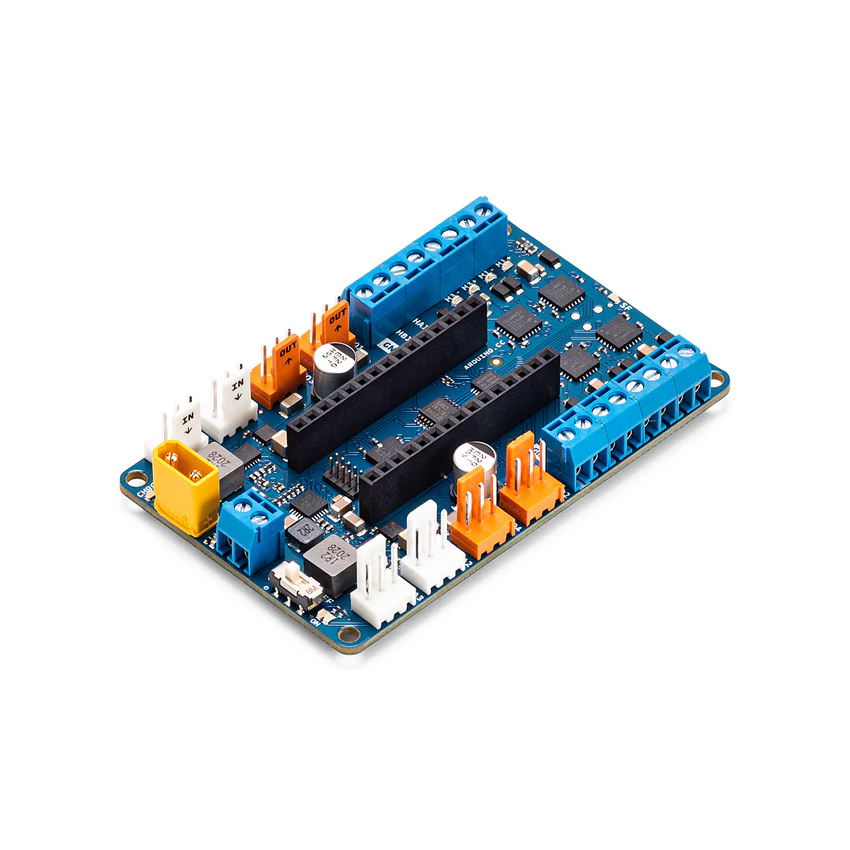

NANO Motor Carrier

SKU
DEDB0733
Part Number
ABX00041
Brand:
Delivery in 2 Weeks.
Pre-Order
Only 1 left
Add to Wish List

Guarantee safe & secure checkout

-Nano Motor Carrier provides a quick and easy way to connect and control motors in your Engineering Kit R2.
-Nano Motor Carrier is the perfect add-on for the Nano 33 IoT board as it works to extend and power up its functionality.

SPECIFICATIONS:


-Microcontroller : ATSAMD11 ( Arm Cortex-M0 @48 Mhz)
-Motor Drivers (x4) : MP6522
-Max Input voltage (power terminals) : 4V (1S Li-Ion Battery)
-Max output current per motor driver : 500 mA
-Motor driver output voltage : 12V
-Over Temperature shutdown protection (for DC motor drivers) : Yes
-Battery charging : Yes
-Max battery charging current : 500mA (configurable)
-Power terminals (connectors) : XT-30 and 2POS terminal block
-Servo connector : 4 terminals
-Encoder inputs : 2 ports
-DC motor control : 4 ports
-3V digital/analog sensor input/output : 4 ports
-IMU : BNO055 9axis Acc/Gyr/Mag

Sensor Type Electrical Conductivity Meter
