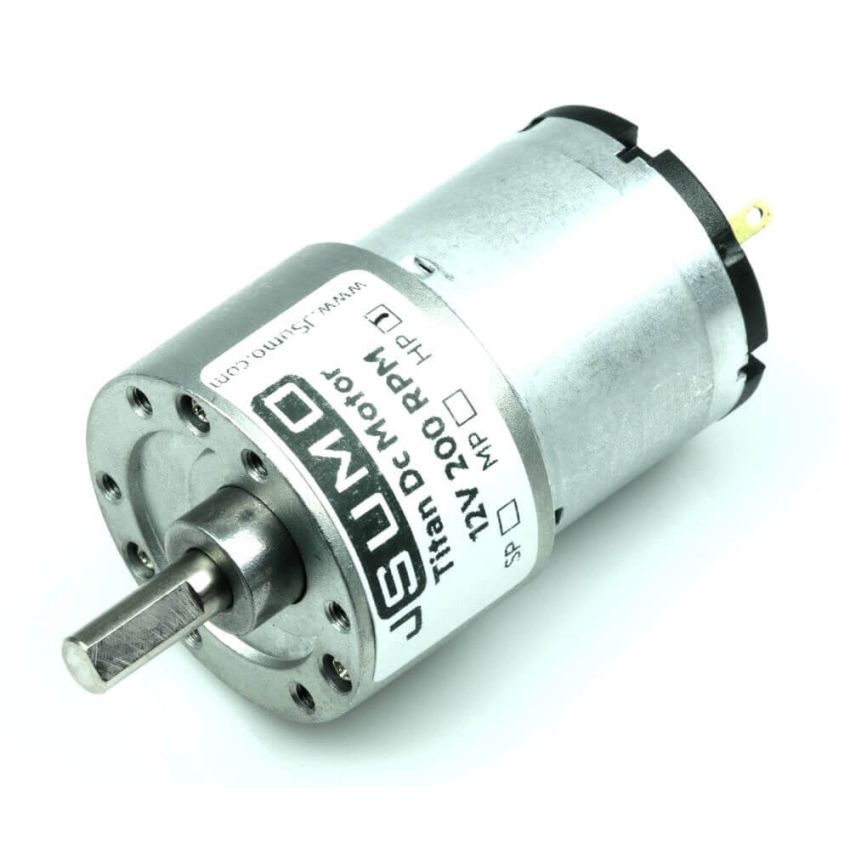

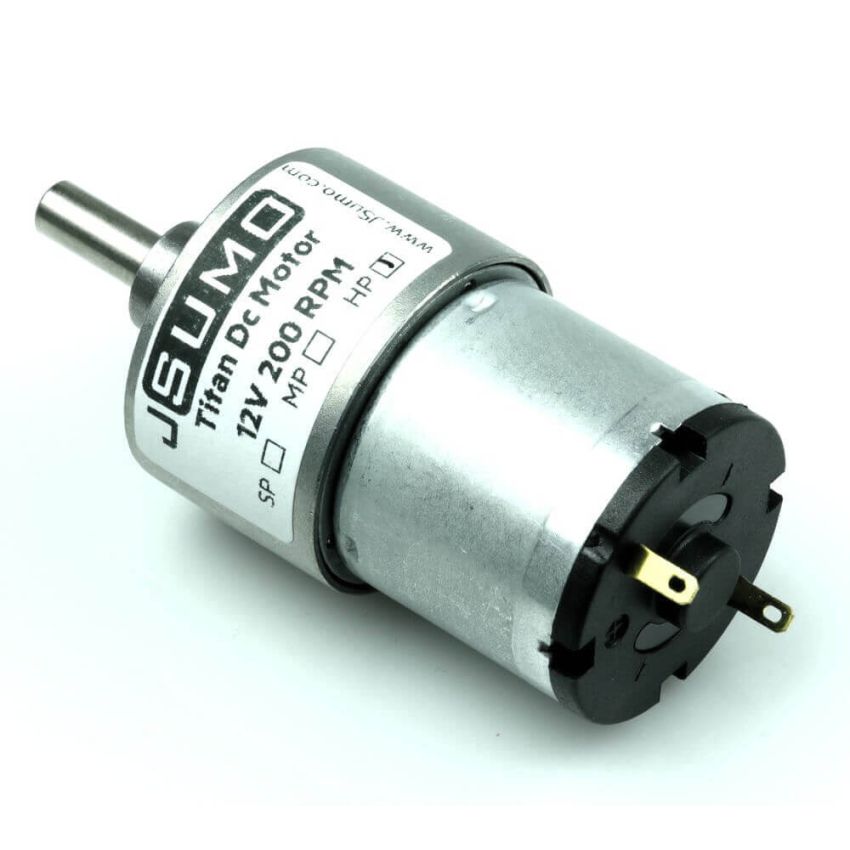

Titan Dc Gearhead Motor 12V 200 RPM (60:1)

The Titan 12V 200RPM DC Gearhead Motor is designed for powerful non-magnetic sumo robots and other mobile robotic applications requiring high torque at moderate speed. Its full metal gearbox provides durable power transmission, while the 6 mm output shaft and multiple front mounting holes simplify integration into custom robot chassis and drivetrain systems.

Key Features

• Operating voltage: 12V
• Speed: 200 RPM
• Gear ratio: 60:1
• Stall torque: approximately 10.35 kg.cm
• No-load current: approximately 60 mA
• Stall current: approximately 4.1A
• Full metal gearbox
• Motor diameter: 37 mm
• Motor length: approximately 75 mm
• Shaft diameter: 6 mm
• Shaft length: approximately 17 mm
• Six M3 front mounting holes
