Description:

The MKR IoT Bundle is a great way to get started with the Internet of Things and includes all the components you need to make 5 IoT projects following the step-by-step online tutorials on the Arduino Project Hub online platform.

SPECIFICATIONS :

• -Microcontroller SAMD21 Cortex-M0 32bit low power ARM MCU

• -Board Power Supply (USB/VIN) 5V

• -Supported Battery(*) Li-Po single cell, 3.7V, 700mAh minimum

• -Circuit Operating Voltage 3.3V

• -Digital I/O Pins 8

• -PWM Pins 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19)

• -UART 1

• -SPI 1

• -I2C 1

• -Analog Input Pins 7 (ADC 8/10/12 bit)

• -Analog Output Pins 1 (DAC 10 bit)

• -External Interrupts 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17)

• -DC Current per I/O Pin 7 mA

• -Flash Memory 256 KB

• -SRAM 32 KB

• -EEPROM no

• -Clock Speed 32.768 kHz (RTC), 48 MHz

• -LED_BUILTIN 6

• -Full-Speed USB Device and embedded Host

• -LED_BUILTIN 6

• -Length 61.5 mm

• -Width 25 mm

• -Weight 32 gr.

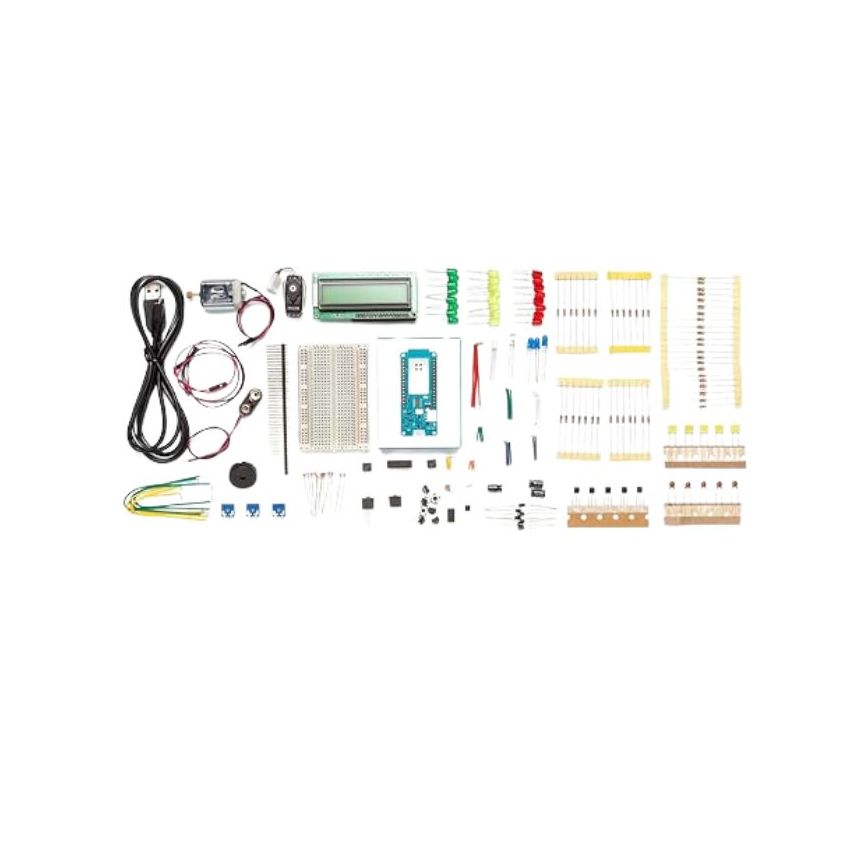

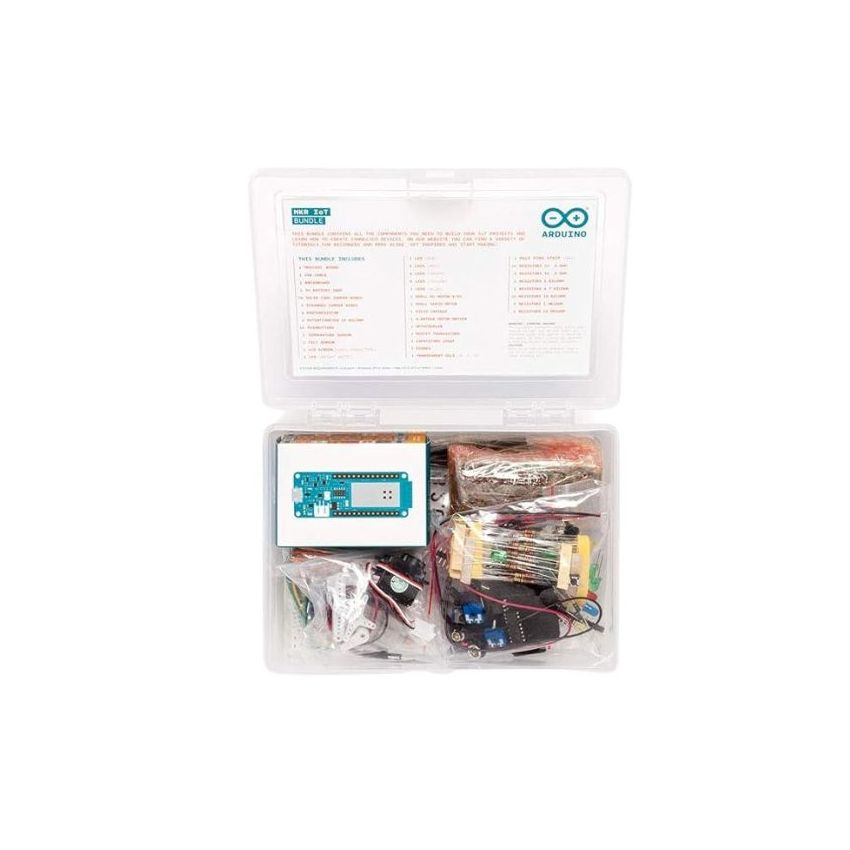

• KIT INCLUDES:

• Each bundle includes:

•  1 Arduino MKR1000 board, with header soldered.

•  1 micro USB cable,

•  1 400-point breadboard,

•  70 solid-core jumper wires,

•  1 9V battery snap,

•  1 stranded jumper wire

•  1 stranded jumper wire,

•  6 phototransistors,

•  3 potentiometers (10 kilohm),

•  10 pushbuttons,

•  1 temperature sensor (TMP36),

•  1 tilt sensor,

•  1 alphanumeric LCD (16 x 2 characters),

• 1 bright white,

•  34 LEDs (1 bright white, 1 RGB, 8 red, 8 green, 8 yellow, 3 blue),

•  1 small DC motor (6/9V),

•  1 small servo motor,

•  1 piezo capsule (PKM17EPP-4001-B0),

•  1 H-bridge motor driver (L293D),

•  1 octocouplers (4NE5),

•  2 MOSFET transistors (IRF520),

•  5 capacitors (100uF),

•  5 diodes (1N4007),

•  3 transparent gels (R,G,B)

•  1 male pin strip (40 x 1),

•  20 resistors (220 ohm),

•  5 resistors (560 ohm),

•  5 resistors (1 kilohm),

•  5 resistors (4.7 kilohm),

•  20 resistors (10 kilohm),

•  5 resistors (1 megohm),

•  5 resistors (10 megohm)
