JORD

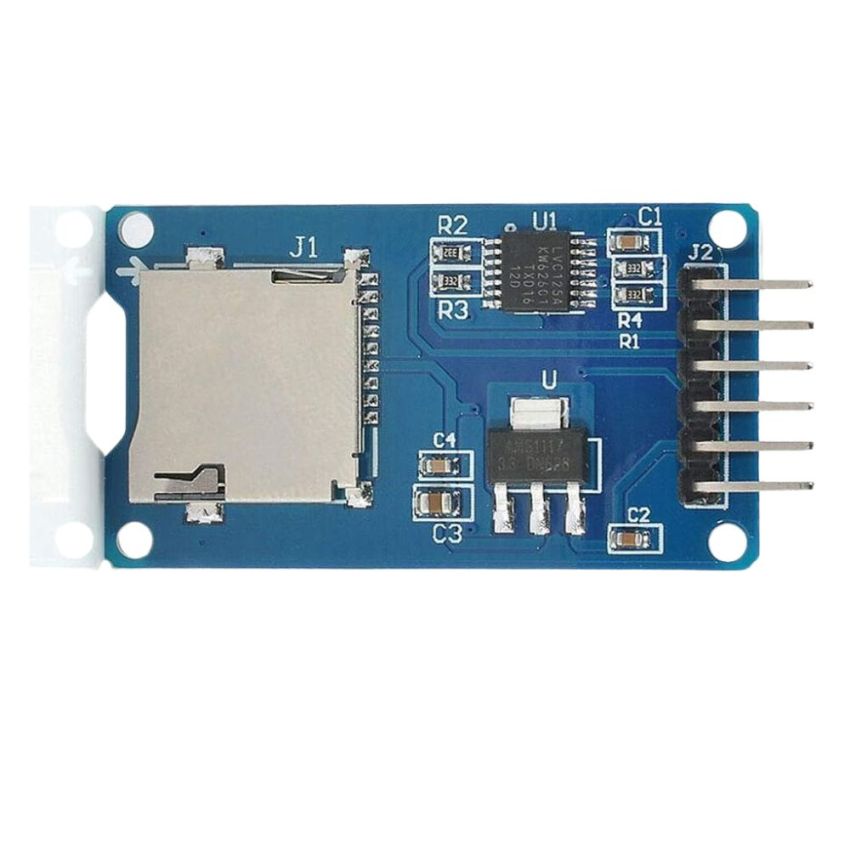

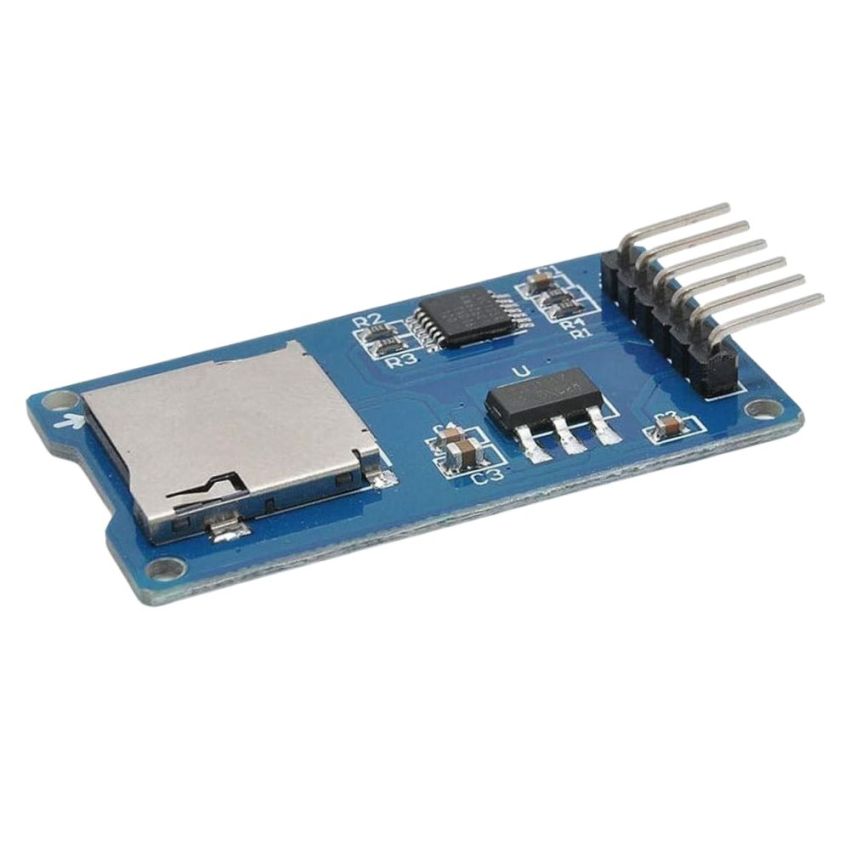

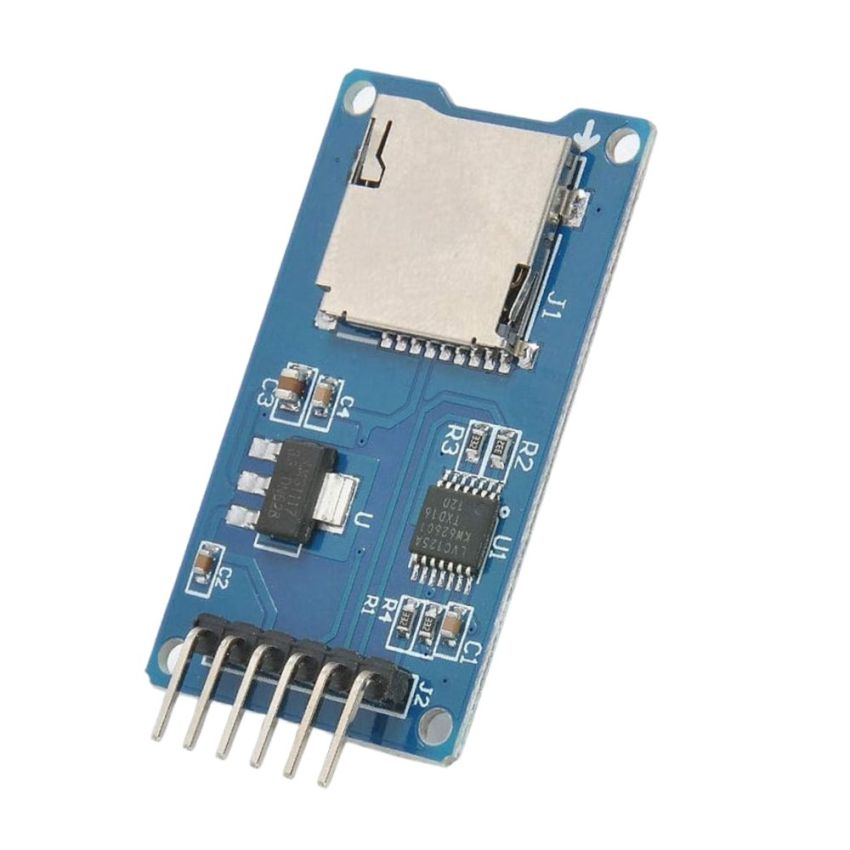

Micro TF Card Module
AED 15.00
In stock
Only 18 left
Guarantee safe & secure checkout
Features:
Supports Micro SD cards, Micro SDHC card (Micro SD<=2G, Mirco SDHC<=32G).
Input Voltage: 4.5V ~ 5.5V (3.3V voltage regulator circuit board)
Recommended Input Voltage: 5V
Input Current: 0.2mA ~ 200mA
Logic Voltage: 3.3V, 5V
Interface: SPI
Pin Number: 6 Pin
Screw Size: M2
Size: 42mm x 24mm x 12mm
Pinout:
GND ground
VCC power supply
MISO SPI bus
MOSI SPI bus
SCK SPI bus
CS Chip select signal pin
| Input Voltage Range | 4.5 - 5.5V |
|---|
