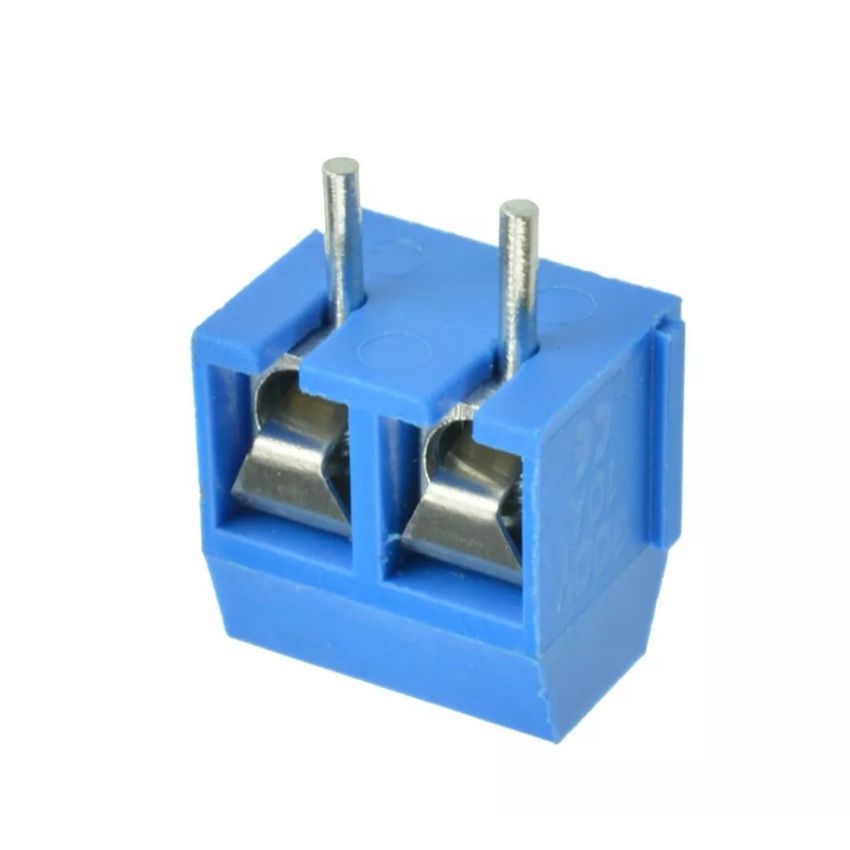

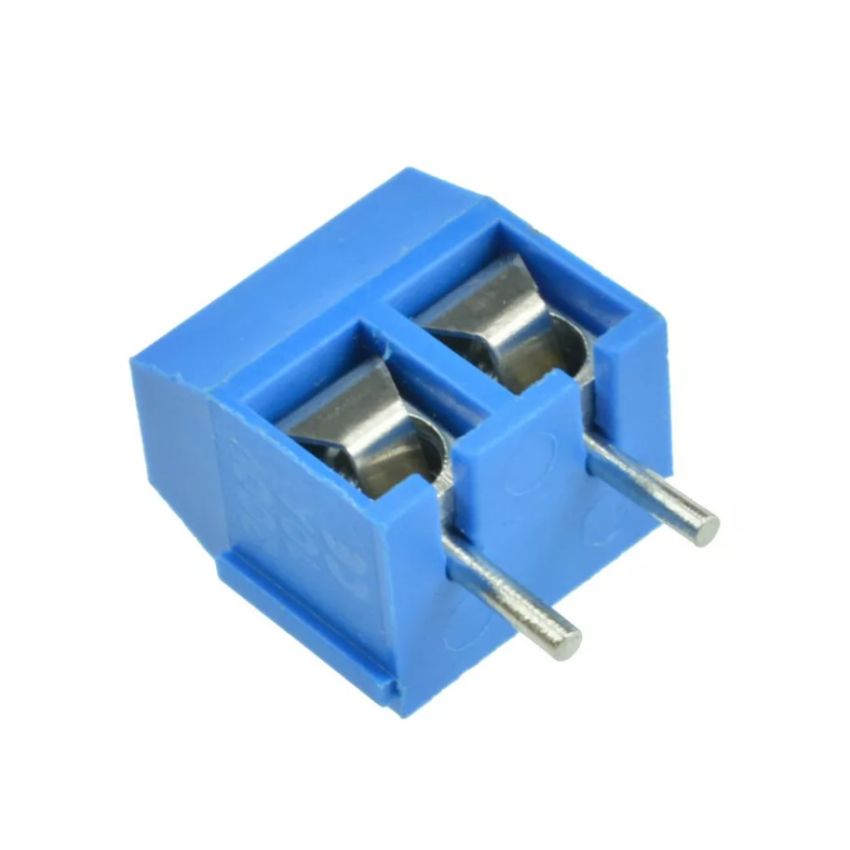

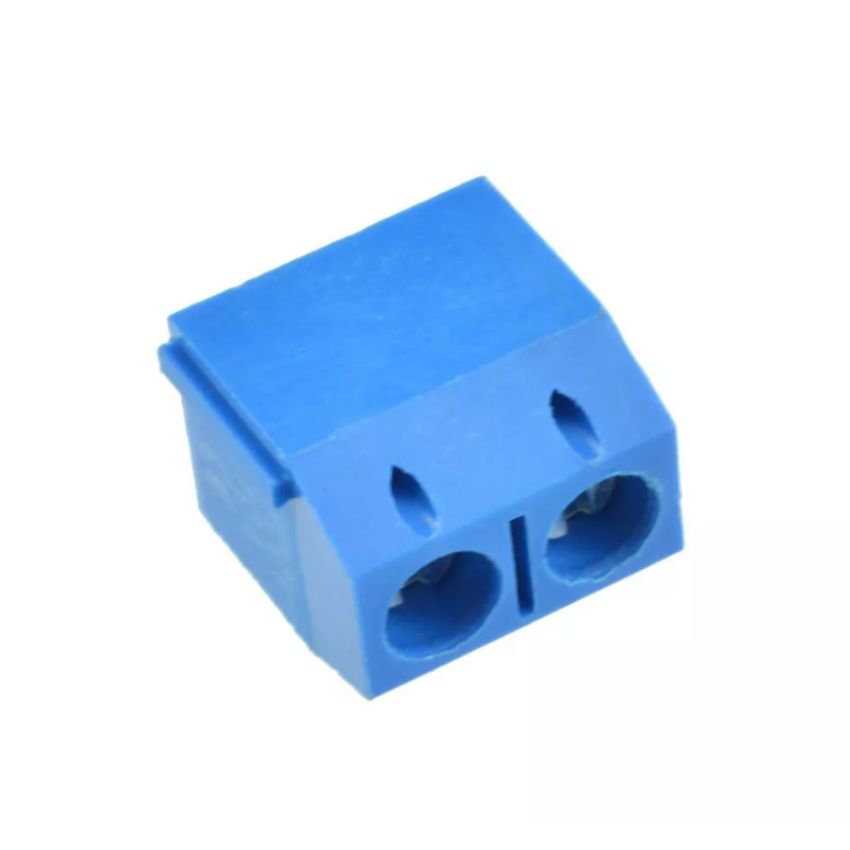

Male KF301-2P 5.08mm 2 Pin Connect Terminal Screw Terminal Connector

The KF300-2P Plug-in Screw Terminal Block Connector has the following specifications:

Pitch: 5.0mm
Rated voltage: 250V (KF300)
Rated current: 16A
Rated impulse voltage: AC2000V / 1Min
Wire diameter: 22AWG-14AWG
Ambient temperature: -30°C to +120°C
Instantaneous temperature: +250°C 5 seconds
Maximum locking torque: 0.4Nm (3.5lb-in)
Stripping length: 4.5mm-5mm
This connector is designed for plug-in connection and has two to three poles. It can accommodate wire diameters from 22AWG to 14AWG, and has a rated current of 16A and a rated voltage of 250V (KF300) or 300V (KF301). It has an ambient temperature range of -30°C to +120°C, and can withstand instantaneous temperatures of up to +250°C for 5 seconds. The connector has a maximum locking torque of 0.4Nm (3.5lb-in), and the stripping length for the wires should be between 4.5mm and 5mm.
