DESCRIPTION:

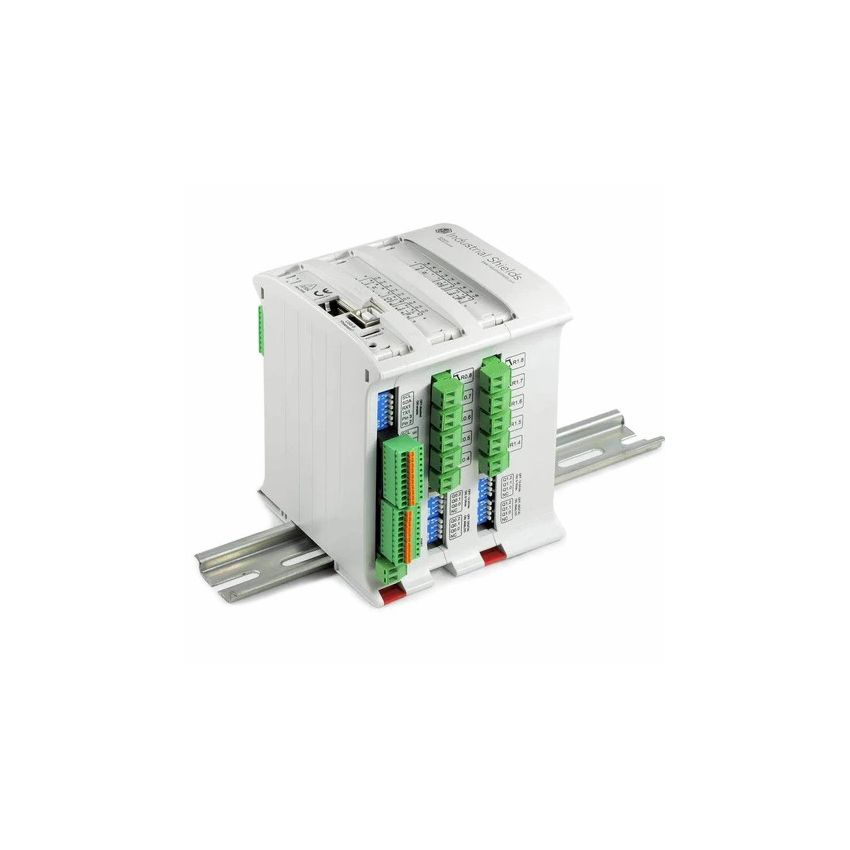

- Modular PLC
This is the first equipment based on the Arduino technology designed for industrial and professional use.

- Programming Software
This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.

- Instantaneous connection and coding.
The PLC M-DUINO is programmed through the USB ports. This offers and immediate access to the program, maintain and control. Also, you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Arbosx and the Touchberry Pi with the instantaneous connection.

(ORIGINAL ARDUINO MEGA INCLUDED)
INPUTS (19)
(10x) 10bit – Analog (0-10Vdc) / Digital (24Vdc) Inputs, configurable by software
(9x) Interrupt Input (24Vdc). “Can work like Digital Input (24Vdc)”
OUTPUTS (19)
(8x) Relay outputs (220Vac-5A)
(11x) Analog (0-10Vdc, 8bit ) / Digital (24Vdc) Output
- COMMUNICATIONS
(1x) Ethernet port.
(1x) USB port (type B).
(1x) I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
(2x) TTL ports.
(1x) RS-232 port.
(1x) HALF/FULL Duplex RS-485 port.
(1x) SPI external port (Using MOSI, MISO, SS pins of Arduino)
TCP IP / Modbus TCP. / Modbus RTU
WebServer capacity
Industrial Protocols

- SPECIFICATIONS

RTC (Real Time Clock. NOTE: I2C port used. See pinout modification)
µSD Socket (using SPI port, chip select D53 pin. See pinout modification).
100x75x115mm
DIN-Rail mounting.
Max consum.: 1.2A
Flash Memory: 256kB (8kB for bootloader)
SRAM: 8kB
EEPROM: 4kB
Clock Speed: 16MHz
