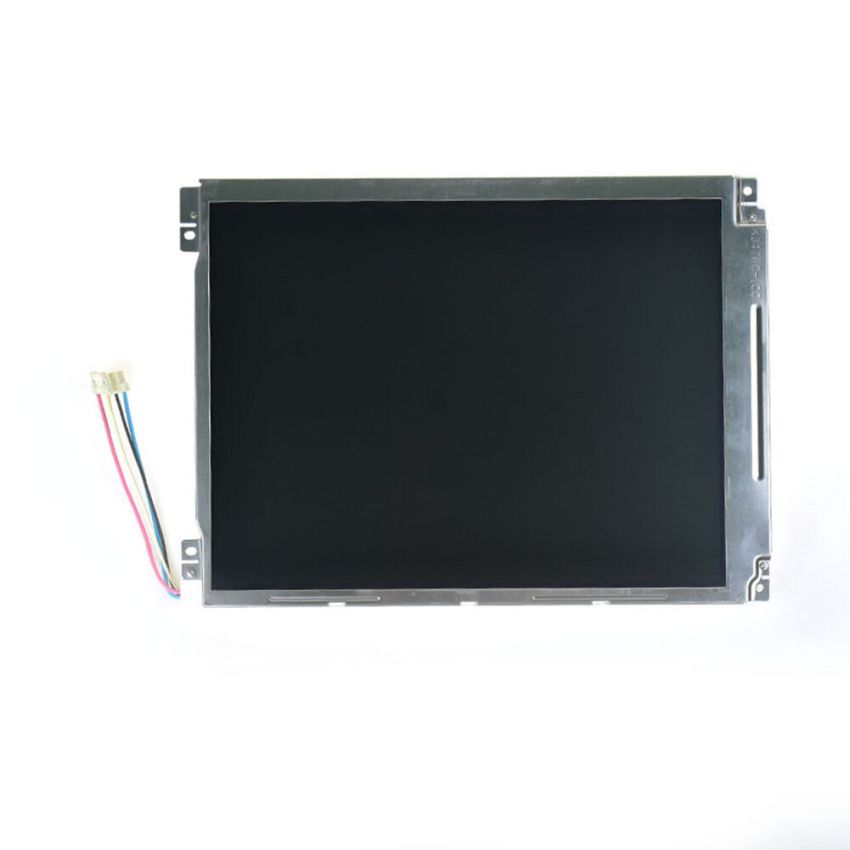

The LQ104V1DG61 is a 10.4-inch a-Si TFT-LCD panel manufactured by SHARP, designed for use in various display applications.

Specifications:

Panel Brand: SHARP
Panel Model: LQ104V1DG61
Panel Type: a-Si TFT-LCDPanel
Panel Size: 10.4"
Resolution: 640(RGB)×480 (VGA)
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating (3H), Antireflection
Brightness: 450 cd/m2 (Typ.)
Contrast Ratio: 600 : 1 (Typ.) (Transmissive)
Display Colors: 262K (6-bit)
Response Time: 10/25 (Typ.)(Tr/Td) (ms)
Viewing Angle: 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency:
Lamp Type: CCFL
SigN/Al Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.3/5.0V (Typ.)(VCC)
