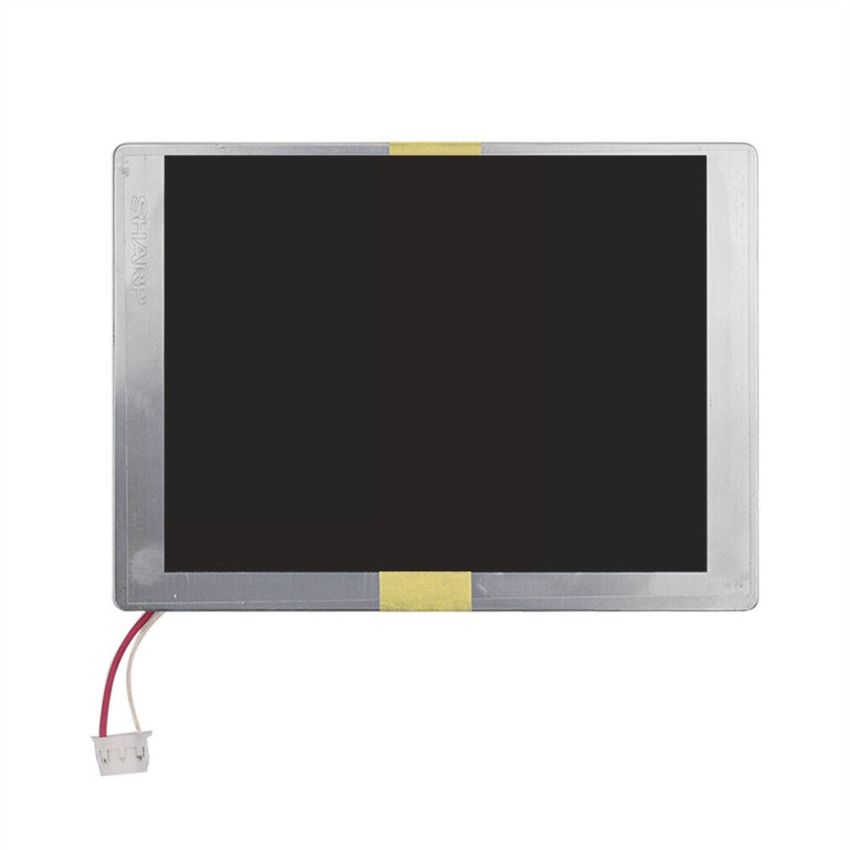

This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT LCD panel, driver ICs, control circuit (PWB), FPC, front and back polarizer, sealed case, backlight unit. Graphics and texts can be displayed on a 320xRBGx240 dots panel with 262,144 colors by suitable control supply from the outside.

Features:

The input of QVGA and VGA sigN/Als is possible.
Wide viewing Angle technology is adopted. ( The most suitable viewing angle is in the 12 o’clock direction)
By adopting an active matrix drive, a picture with high contrast is realized.
Reflection due to exterN/Al light is minimized through the use of a low reflection black matrix.
A thin, light and compact module is acomplished through the use of COG mounting technology
Through the use of high color purity color filter and TN-normally white mode excelled in color reproducibility, an image with highly N/Atural color reproduction is realized.
High viewing angle and high brightness (500cd/m2)
An inverted video display in the vertical / horizontal directions is possible.
This module is adapted to RoHS compliance.

Screen size: 14.4(5.7inch) diagoN/Al cm
Active area 115.2(H) x 86.4(V) cm
Display format 320(H) x 240(V) pixels
Dot pitch 0.36 x 0.36 mm
Pixel configuration R,G,B stripe configuration
Display mode: Normally white
Outline dimension 144.0W x 104.6H x 13.0D mm
