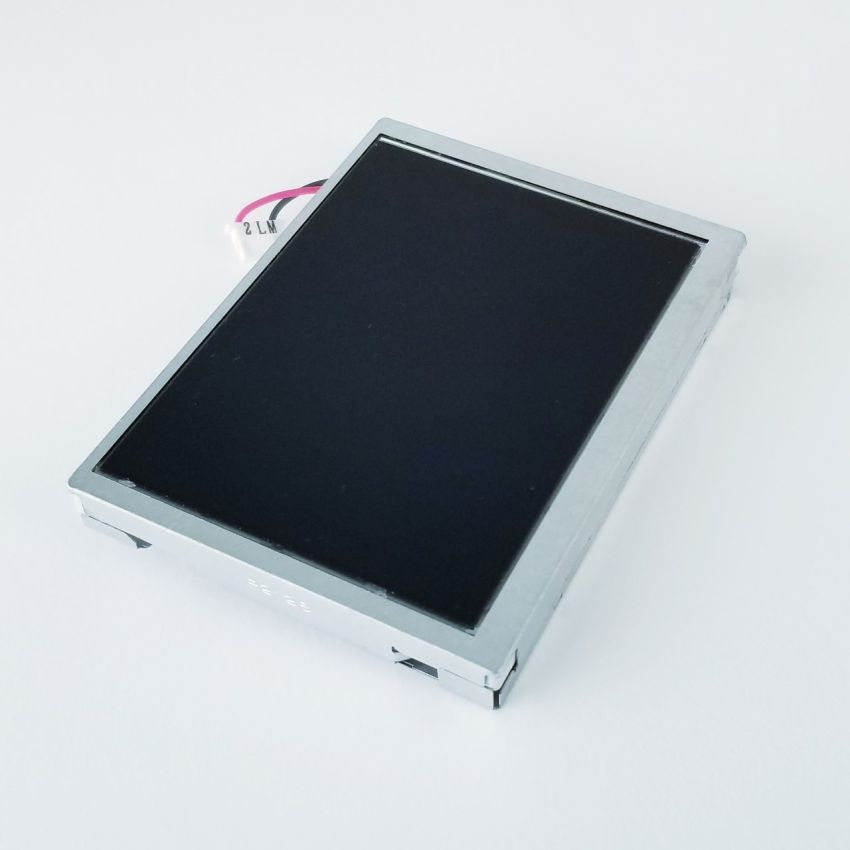

LQ050Q5DR01 5.0 320X240 Automotive display panel Make Sharp

Number of Pins: 40
DiagoN/Al Size: 4.96 in
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Display Mode: Transflective
Resolution (width): 320 pixel
Max Operating Temperature: 95°C
Viewing Area: 101.28mm W x 74.76mm H
Touchscreen: No
Height: 12.7mm
Package / Case: Module
Supply Voltage: 3.3V
DiagoN/Al Screen Size: 4.96 125.98mm
Length: 119mm
Dot Pixels: 320 x 240 (QVGA)
Lead Free:
Lead Free
Dot Pitch: 0.11mm Wx0.31mm H
Width: 89.1mm
Part Status: Obsolete
Interface: Parallel, 18-Bit (RGB)
Backlight: CCFL
Graphics Color: Red, Green, Blue (RGB)
RoHS Status: Non-RoHS Compliant
Min Operating Temperature: -40°C
Display Type: TFT - Color
Resolution (height): 240 pixel
