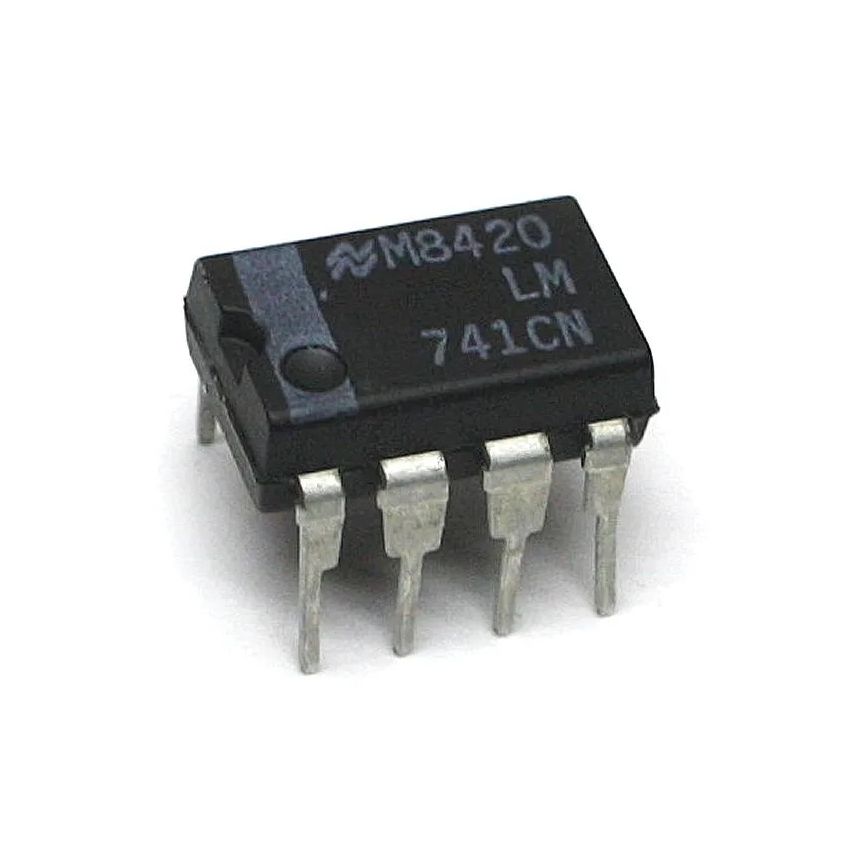

LM741CN DIP-8 Operational Amplifier
AED 5.00
In stock
Guarantee safe & secure checkout
Guarantee safe & secure checkout
Mounting Style: Through Hole
Package/Case: PDIP-8
Number of Channels: 1 Channel
Supply Voltage - Max: 44 V, /- 18 V
GBP - Gain Bandwidth Product: 1 MHz
Output Current per Channel: 25 mA
SR - Slew Rate: 500 mV/us
Vos - Input Offset Voltage: 6 mV
Supply Voltage - Min: 10 V, /- 5 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: 70 C
Ib - Input Bias Current: 500 nA
Operating Supply Current: 2.8 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 70 dB
en - Input Voltage Noise Density: 30 nV/sqrt Hz
Dual Supply Voltage: /- 9 V, /- 12 V, /- 15 V
Height: 3.3 mm
Length: 9.27 mm
Maximum Dual Supply Voltage: /- 18 V
Minimum Dual Supply Voltage: /- 5 V
Operating Supply Voltage: 10 V to 44 V
Pd - Power Dissipation: 500 mW (1/2 W)
Supply Type: Dual
Technology: Bipolar
Voltage Gain dB: 106.02 dB
Width: 6.35 mm
Unit Weight: 762 mg
"
