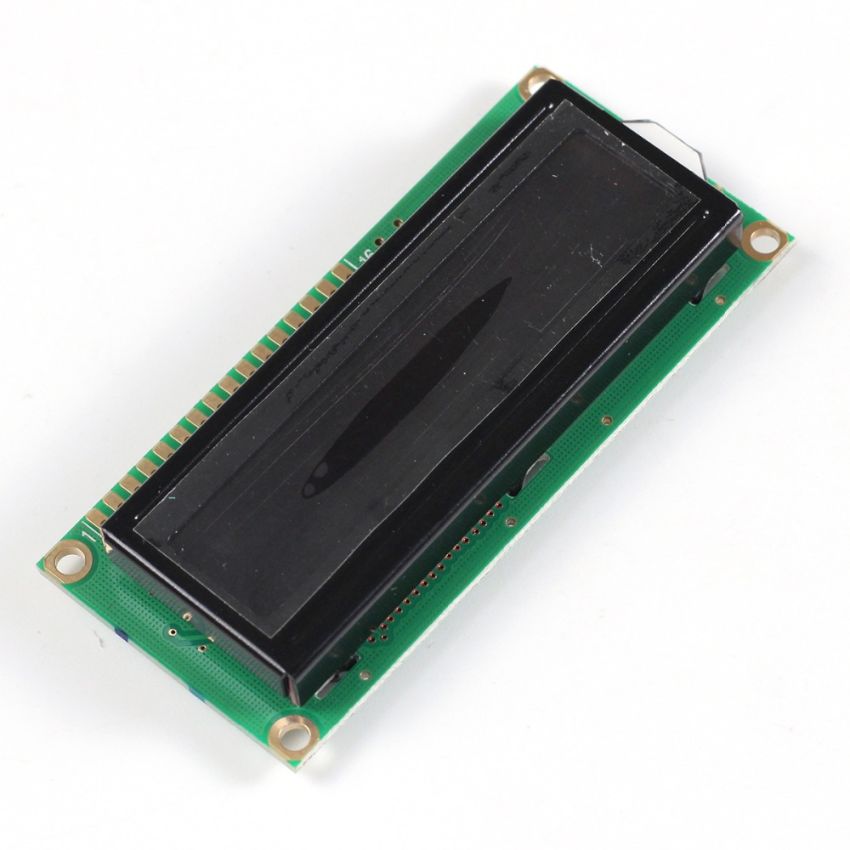

LM16X212 LCD MATRIX

Outline dimensions: 84W x 44H x 16D mm
Effective display area: 61W x 15.8H mm
Display format: 16 Characters x 2 lines
Character format 5 x 7 dots with cursor
Character size: 2.96W x 4.86H mm
Dot size: 0.56W x 0.66H mm
Dot spacing: 0.04 mm
Character color: Dark Blue
Backlight color: Yellow green
Weight: Apporx. 40 g
Supply voltage (Vdd-Vss): -0.3 - 6.5V
Supply voltage (LCD drive) (V0-Vss): 0 - 6.5V
Supply current (ILED): 240mA
Input voltage (VIN): -0.3 - Vdd 0.3V
Operating temperature(Topr): 0-50C
Reverse voltage (Backlight LED) (VLED-VLSS): -5V
