Description :

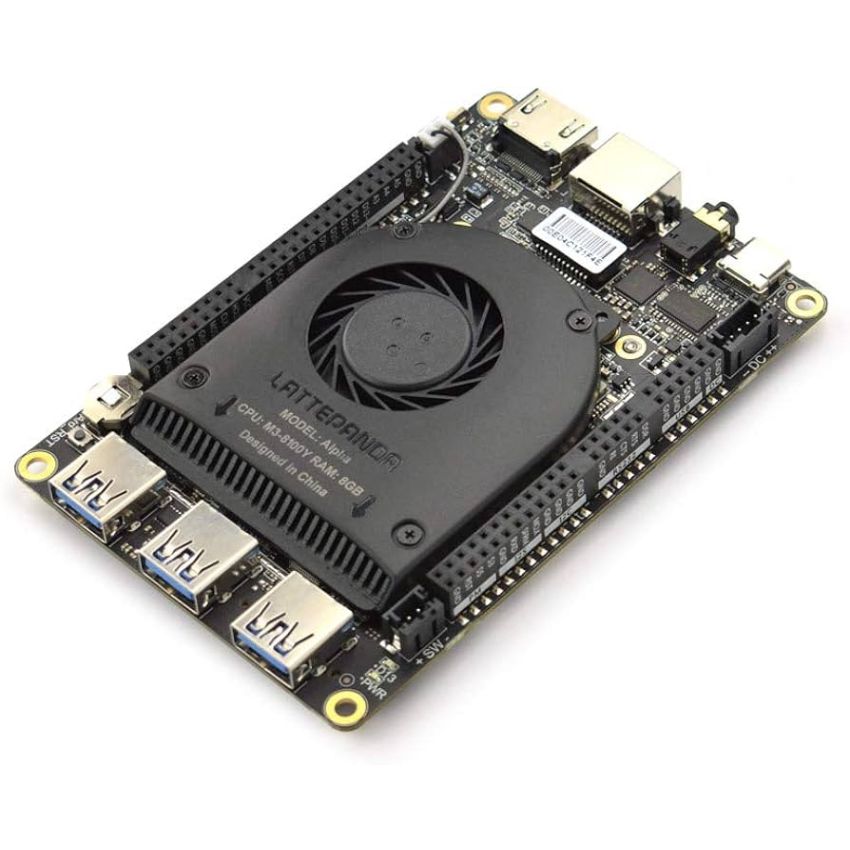

-LattePanda 2 Alpha 864s is a high-performance, pocket-sized SBC that runs the full Windows 10 or Linux operating system -It is widely used in edge computing, vending, advertising machines, industrial automation, etc -Intel Core M3-8100Y, Dual-Core, 1.1-3.4GHz, Intel UHD Graphics 615 -8GB Memory, Dual-Band 2.5GHz/5GHz Wi-Fi & Bluetooth 4.2 & Gigabit Ethernet -USB3.0 x3, USB Type-C x1, 2 x M.2 PCIe (Support B&M Key and A&E Key) -Support Windows 10 & Linux OS, integrated Arduino Coprocessor ATMEL 32U4 -Powered by PD adapter / 12V DC / 7.4V battery -Perfect for makers, DIY projects, robotics controller, interactive project core, IoT edge device, or AI brain -Pre-installed Win10 pro operating system but also supports Linux -Embedded DisplayPort and Type-C interface for easy connectivity and expandability -Two M.2 PCIe connectors for various expandable capabilities including SSD, GPU, Wired, and Wireless Network -Independent USB 3.0 interfaces for easy connection to peripherals -Comprehensive guides and documentation, with a strong community of LattePanda users for support.

Specifications:

  •CPU: Intel Core m3-8100y •Core: 1.1-3.4GHz Dual-Core, Four-Thread •Benchmark (PassMark): Up to 4128, double computing power compared with same price range products in the market •Graphics: Intel HD Graphics 615, 300-900MHz •RAM: 8GB LPDDR3 •External Memory: 1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD 1x M.2 E Key, PCIe 2x，Supports USB2.0, UART, PCM •Connectivity: WIFI 802.11 AC, 2.4G & 5G Dual-Band Bluetooth 4.2 Gigabit Ethernet •USB Ports: 3x USB 3.0 Type A 1x USB Type C, supports PD, DP, USB 3.0 •Display: HDMI Output Type-C DP Support Extendable eDP touch displays •Co-processor: Arduino Leonardo •GPIO & Other Features: 2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC，Power •Management, Extendable power button, everything you need •OS Support: Windows 10 Pro Linux Ubuntu •Dimension: 115mm * 78mm * 14 mm
