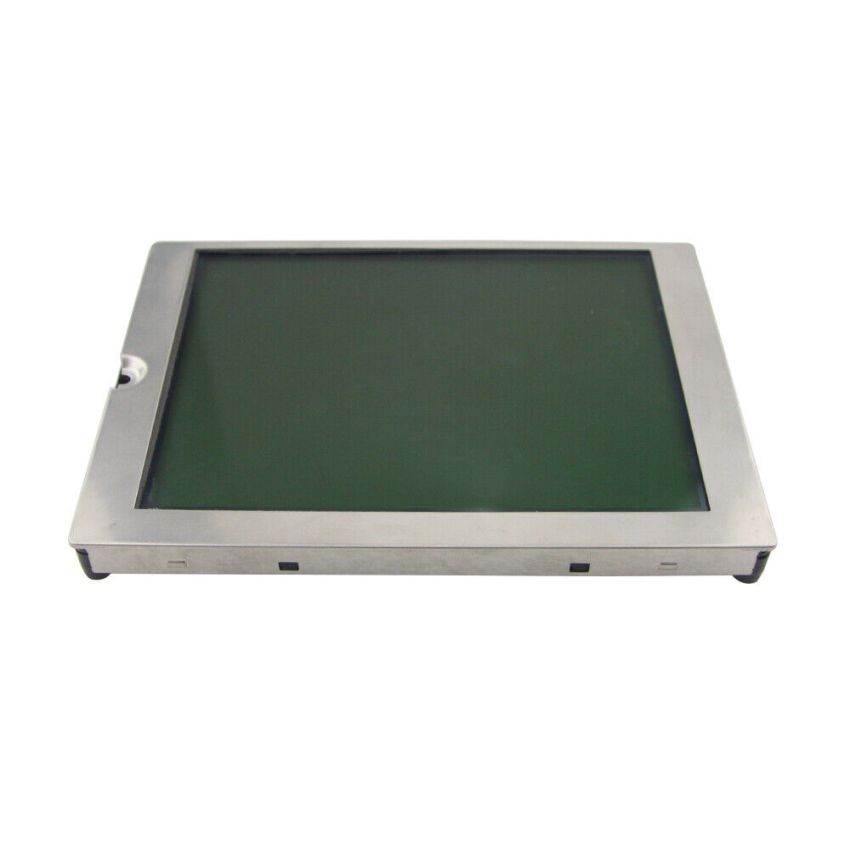

The KG057QVLCG-G060 is a 5.7" FSTN-LCD display module with a resolution of 320x240 pixels (QVGA) and an aspect ratio of 4:3. It has a dot pitch of 0.360x0.360mm and a display area of 115.185x86.385mm.

Specifications:

Model: KG057QVLCG-G060
Panel-type: FSTN-LCD , LCM
Size: 5.7"
Resolution: 320×240 [QVGA]
Aspect Ratio: 4:3 (H:V)
Dot Pitch(mm): 0.360×0.360 mm (H×V)
Pixel Pitch(mm): 0.360×0.360 mm (H×V)
Display Area: 115.185×86.385 mm (H×V)
Outline Size: 144×104.4 mm (H×V)
Display Mode: STN, Transmissive
Display Colors: Monochrome
SigN/Al Interface: Parallel Data
Touch Screen: Without
Input Voltage: 3.3V (Typ.)
Operating Temp: 0 ~ 60 °C
Brightness:150 (Typ.)
Viewing Angle: 35/35/20/35 (Typ.)(CR>=2)
Contrast Ratio: 3 : 1 (Typ.) ( Transmission ) 4:1 (Typ.) (RF)
Pixel Format: Rectangle
Lamp Type: WLED 50k Hours Without Driver
Surface: Glossy (Haze 0%)
Panel Weight: 175g (Typ.)
Response Time: 380/120 (Typ.)(tr/td) ms
Frequency: 75hz
