KA3005D PRECISION VARIABLE ADJ

0 ~ 30VDC Output Bench (AC to DC) Power Supply LED
0 ~ 5A Output Features Adjustable or Fixed Selection Switch, Regulated

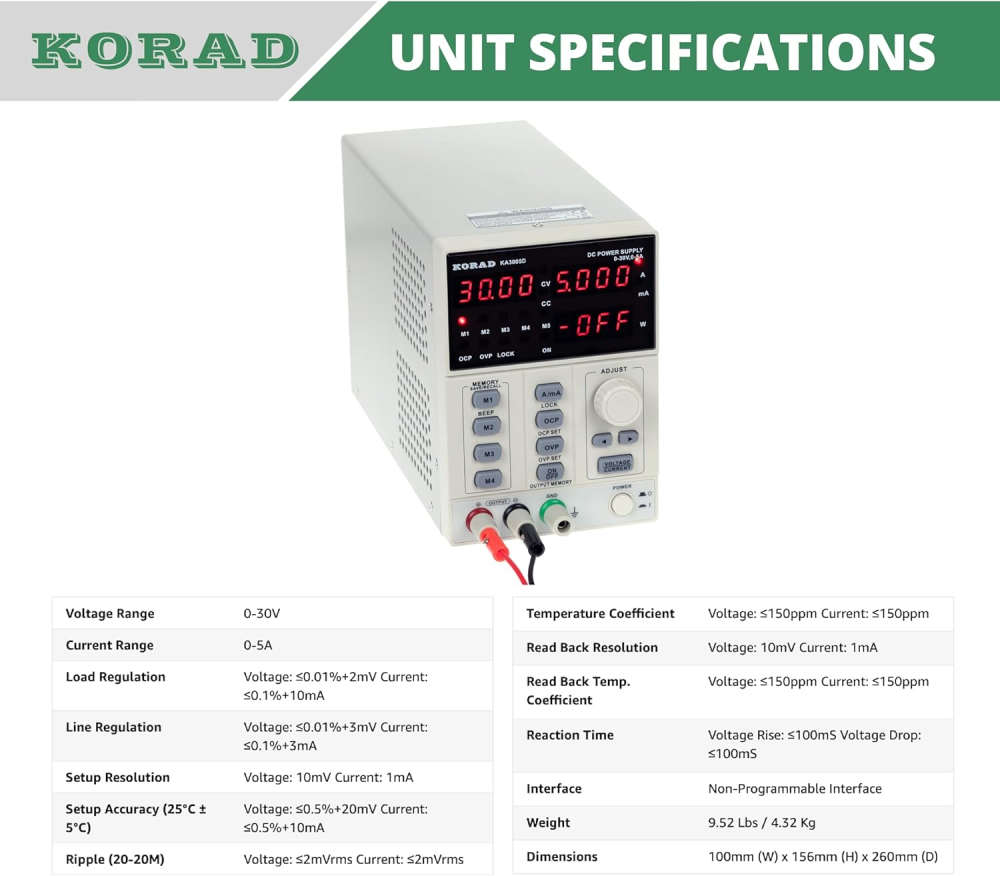

Specifications:

• Type: Bench (AC to DC)

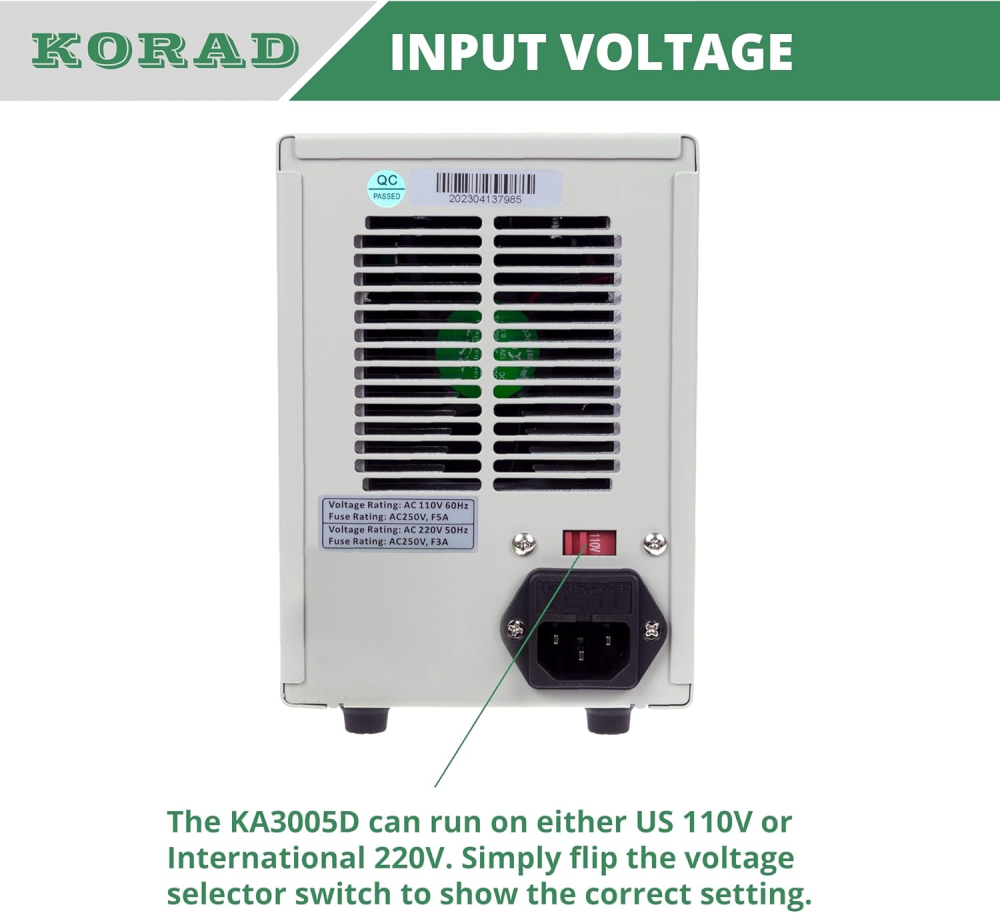

• Voltage - Supply: 110 ~ 220VAC
• Voltage - Output: 0 ~ 30VDC
• Current - Output: 0 ~ 5A
• Display Type: LED
• Number of Characters: 4 (2)
• Number of Outputs: 1
• Size / Dimension: 10.240" L x 6.142" W x 4.331" H (260.00mm x 156.00mm x 110.00mm)
• Features: Adjustable or Fixed Selection Switch, Regulated
• Accuracy - Voltmeter; Ammeter: 0.05% 20mV; 0.1% 5mA
• Voltage Regulation - Line: 0.01% 3mV
• Voltage Regulation - Load: 0.01% 2mV
• Current Regulation - Line: 0.1% 3mA
• Current Regulation - Load: 0.1% 10mA
• Ripple: 2mV rms, 3mV rms
