Description:

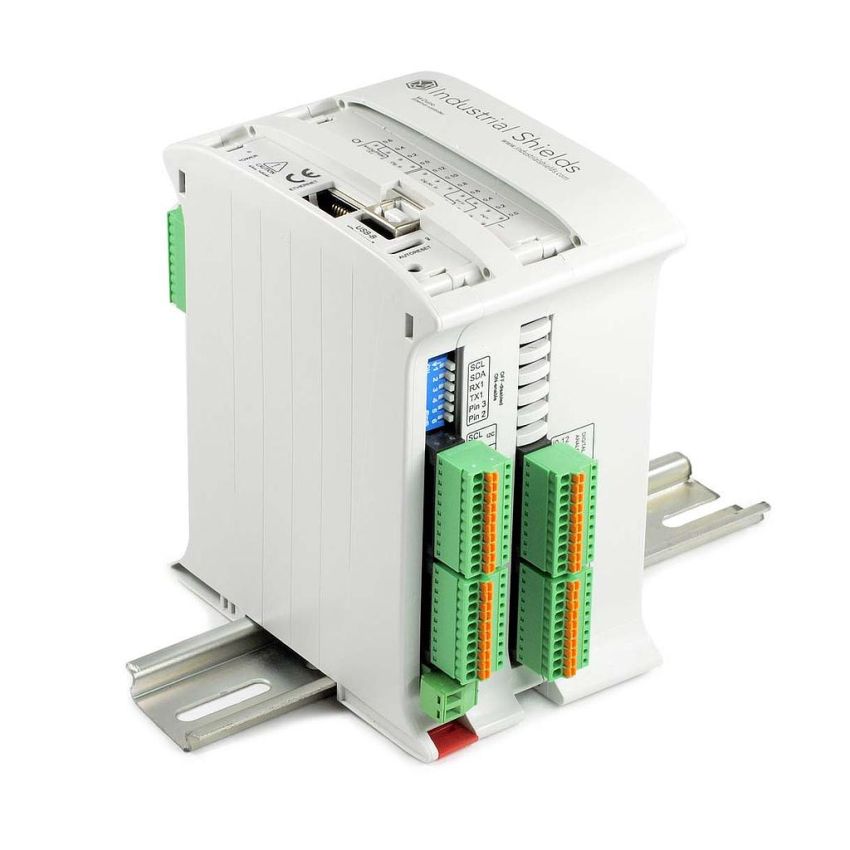

- Modular PLC

This is the first piece of equipment based on Arduino technology designed for a professional use. This PLC has 21I/Os. It also contains several communication ports, which provide more flexibility and control. The M-DUINO family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

- Programming Software

This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.

- Instantaneous connection and coding

The PLC M-DUINO is programmed through the USB ports. This PLC can also be programmed through Ethernet port remotely. This offers and immediate access to the program, maintain and control. Also, you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox and the Touchberry Pi with instantaneous connection.

SPECIFICATIONS:

• - PLC measures 101X119.5x119.3
• - DIN Rail mounting
• - Max. consum. 1.5A
• - Power Supply Voltage (Vdc) Range 12-24
• - Power Consumption (VAC max.) 30
• - Operating Temperture ºC 0ºC-60ºC
• - Operating Temperature ºF 32ºF-140ºF
• - Operating Relative Humidity % (no condensation) 10%-90%
• - Package Size 13cm x 14cm x 8cm
• - Packaging Box
• - ECCN Number EAR99H
• - HTS Code 8537.10.10.90
• - Country of Origin Spain
• - STATIC Sensitive NO
• - Moisture Sensitivity Level (MSL) MSL 1 - Unlimited
• - Lead Free
• - RoHS Compliant by Exemption? NO
• - Does Part Contain Lithium? YES
