IR2153, Self-Oscillating 600V Half-Bridge Driver, Integrated Bootstrap Diode,DIP

SKU
SCIx1065
Brand
IOR
In stock
Add to Wish List

Guarantee safe & secure checkout

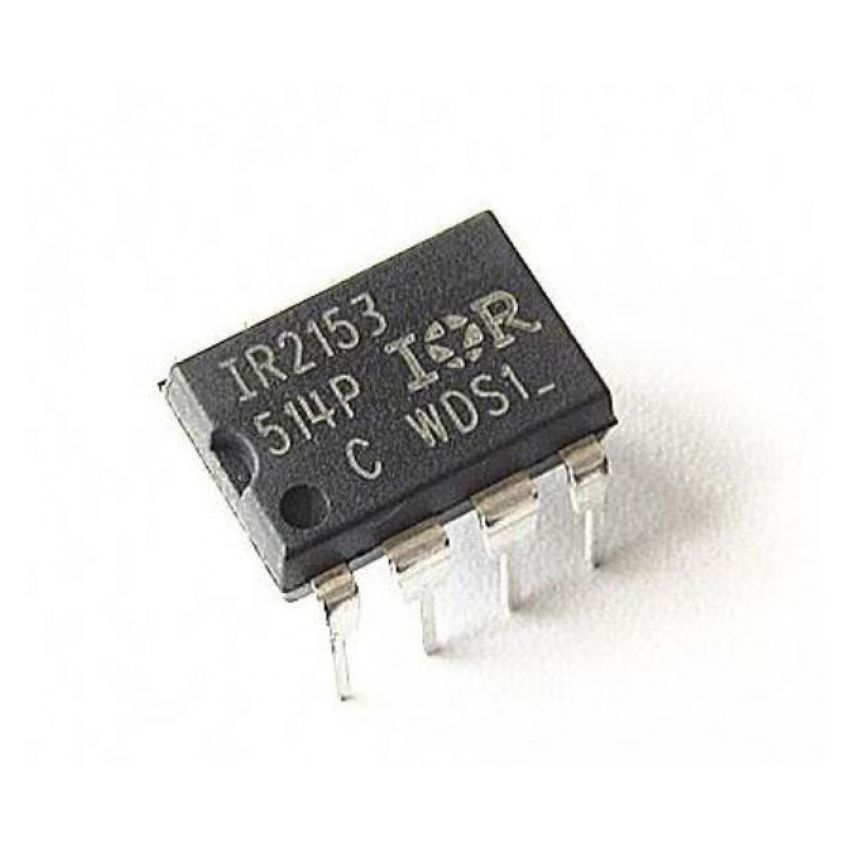

The IR2153 - DIP is a high-voltage self-oscillating half-bridge driver IC with an integrated bootstrap diode. Designed for use in high-power applications such as motor drives, lighting systems, and power supplies, this IC can handle voltages up to 600V. The IR2153 features micropower startup, a 15.6V zener clamp on VCC, and low standby power consumption, making it ideal for energy-efficient designs.

This IC integrates adjustable deadtime control and incorporates a front-end oscillator similar to the industry-standard 555 timer, offering more functionality than previous ICs. The IR2153 also includes a built-in shutdown function on the CT pin, allowing the gate driver outputs to be disabled with a low voltage signal. Its noise immunity is improved with a lower di/dt gate driver and enhanced UVLO hysteresis of 1V.

Packaged in a compact DIP-8 form, the IR2153 is easy to integrate into traditional through-hole designs. With its high-voltage capability, integrated protection features, and energy-efficient performance, the IR2153 is a versatile choice for a wide range of power applications.

Key Features :
  • 600V Half-Bridge Driver: Supports high-voltage power applications up to 600V.
  • Integrated 15.6V Zener Clamp: Provides protection for the VCC pin.
  • Micropower Startup: Low startup current consumption for energy-efficient designs.
  • Integrated Bootstrap Diode: Simplifies circuit design and reduces external components.
  • Adjustable Deadtime: With a typical deadtime of 1.2µs, it ensures safe and reliable operation.
  • Shutdown Feature: CT pin provides a shutdown function to disable gate driver outputs.
