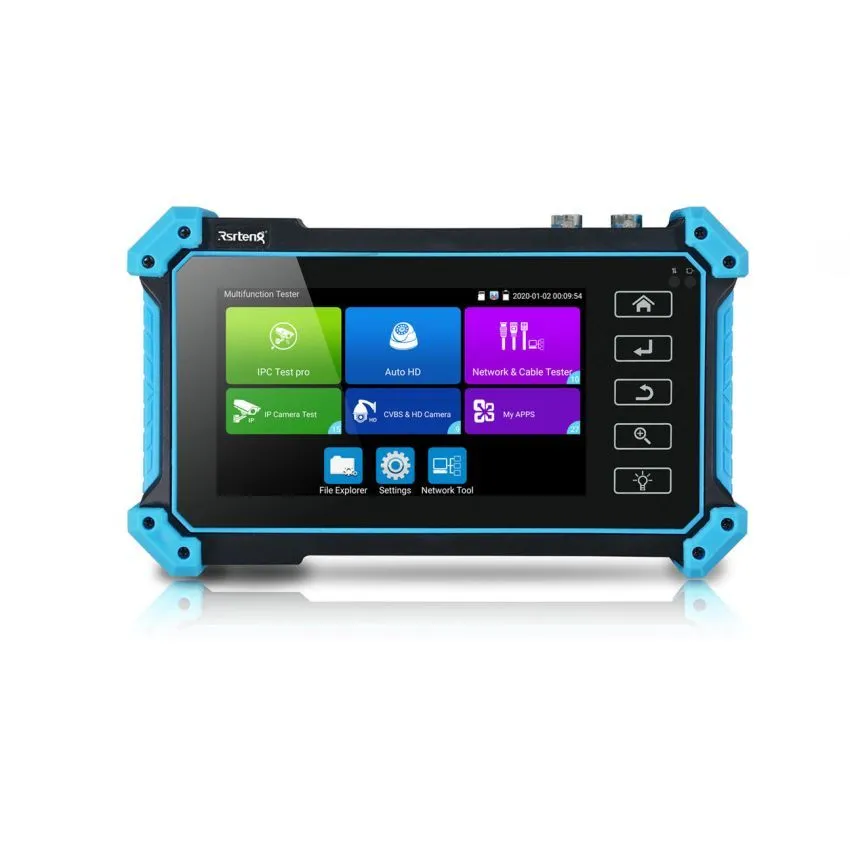

IPC-5200C Plus - IP Camera Tester

The IPC-5200C PLUS is a CCTV/IP camera tester. It has a 5-inch IPS touchscreen with 1920x1080 resolution. The device can test IP cameras with H.265/H.264 codecs and has features such as IP Discovery, Quick OVIF/IPC test, RTSP play, and Client APK. It also has a Rapid Video feature that can automatically view the video and create a testing report.

The device has built-in test tools for HIKVISION and DAHUA cameras. For other brands, a dedicated test tool app can be installed through online update. It can also test HD coaxial, CVBS, and HDMI signals.

The tester can detect UTP cable connection status and can detect the near-end, mid-end, and far-end fault point of the network cable crystal head. It also has a built-in WiFi that can create a WiFi hotspot, speeds of up to 150M, and supports 2.4GHz.

The device has a 7.4V Lithium polymer battery that is rechargeable and can last for 5-8 hours of normal working time after charging for 3-4 hours. The device is also equipped with a 4-core 1.2GHz CPU, 1GB RAM, and 8GB flash memory. It supports up to 32GB TF card, has multiple menu languages, and works at a temperature range of -10℃ to 50℃ and humidity range of 30%-90%.

The package includes a tester, a power adapter, a cable test box, a power output cable, a BNC video cable, an RS485 cable, an audio test cable, a tool box, a shoulder strap, and a wristband.
