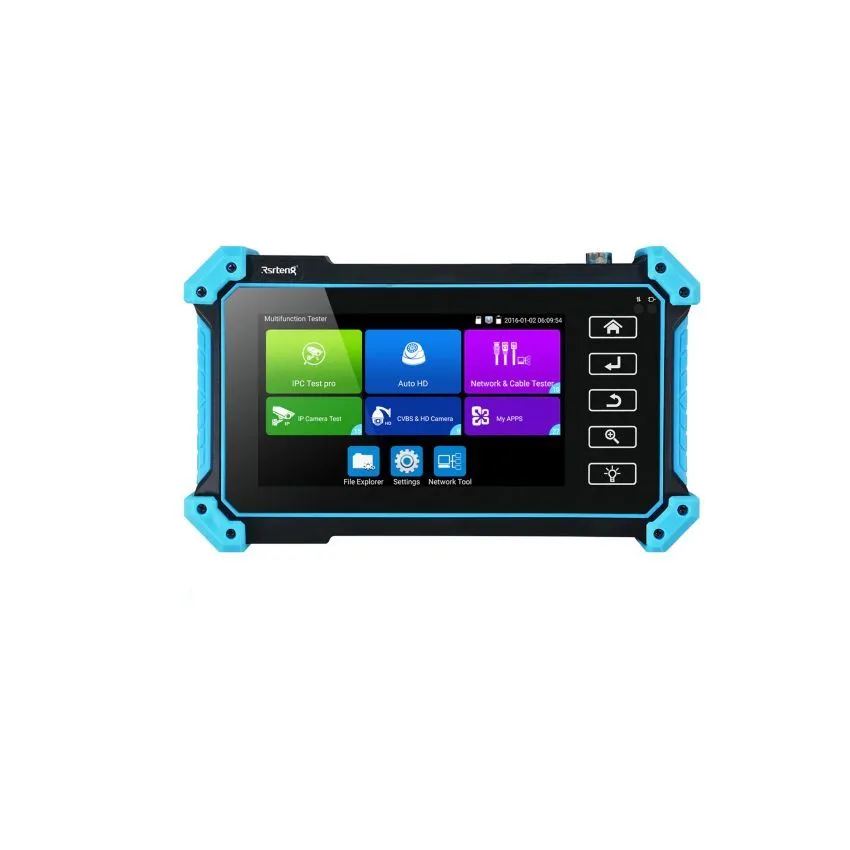

IPC-5100C PLUS - IP CAMERA TESTER

The IPC-5100C PLUS is an IP camera tester with a 5-inch IPS touch screen display with 1920x1080 resolution. It supports 12MP 4K IP camera testing and H.265/H.264 video codecs. It also includes IP discovery, Quick OVIF/IPC test, RTSP playback, and a Client APK for quick and easy camera testing.

The tester also includes a rapid video feature for automatic video viewing and testing report creation. For HIKVISION and DAHUA test tools, it supports batch activation of cameras and the ability to modify IP addresses, passwords, and channel names. For Axis and other brands, the tester can download the appropriate test tool app through online updates.

In addition to IP camera testing, the tester also includes HD coaxial testing for 8MP TVI, CVI, and AHD cameras, as well as CVBS camera testing with PTZ control and RS485 control. It has one HDMI input, one VGA input, and a 4x zoom feature for image enlargement.

The tester can also perform UTP cable testing and RJ45 TDR cable testing for cable pair status, length, attenuation, reflectivity, impedance, and skew, and can create a test report. It includes a battery that is rechargeable and has a working time of 5-8 hours. It also has a built-in WIFI and supports speeds up to 150M, and it has one channel audio signal input to test for normal sound.

The tester is compatible with Android and can add APPs. It has a 4core, 1.2GHz CPU, 1GB of RAM, and 8GB of Flash storage. It supports up to 32GB of TF card storage and has multiple menu language options. It includes a power adapter, cable test box, power output cable, BNC video cable, RS485 cable, audio test cable, tool box, shoulder strap, and wristband. The package dimensions are 260x143x100mm (10.24x5.63x3.94inch).
