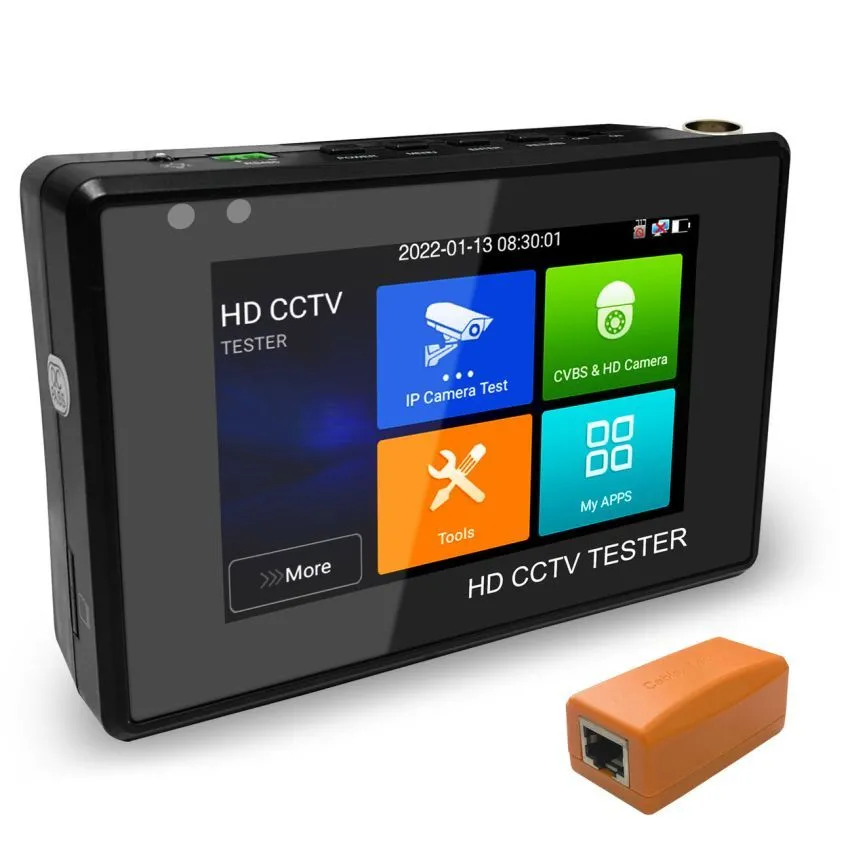

IPC-1800ADH+

The IPC-1800ADH Plus is a network camera tester device that can be used to test and troubleshoot various types of IP cameras. It has a 4-inch IPS touch screen with 800x480 resolution, and it can connect to a network using a built-in Wi-Fi or a 10/100/1000M auto-adjust RJ45 interface. The device supports ONVIF, non-ONVIF, Dahua, Hikvision, Samsung, Tiandy, Kodak, Honeywell, and RTSP viewer IP camera types.

The IPC-1800ADH Plus can test and display H.265/H.264 camera images by mainstream testing, and it also has a CVI, TVI, and AHD video signal testing feature. It supports various resolutions and frame rates, as well as UTC control and call OSD menu. The device can also test CVBS analog video and has a 1-channel BNC input for this purpose.

The device can capture current images and record live video as a JPG file. It also has a media player that can view photos and playback video. The tester play feature allows the device, mobile phone, and PC to display at the same time.

The IPC-1800ADH Plus has a built-in 7.4V lithium polymer battery with 2400mAh capacity, which can provide up to 8 hours of normal working time after a 4-5 hour charging time. It also has a 12V/3A power output and a 48V PoE power output. Other features of the device include PTZ control, data monitor, network test, RJ45 TDR cable test, UTP cable tester, and audio test. It also has self-define icons, desktop and application interface background, and a drop-down menu that includes PoE power switch, IP setting, CVBS, and more. The device is lightweight and compact, with dimensions of 126x83x33mm and a weight of 0.32kg.
