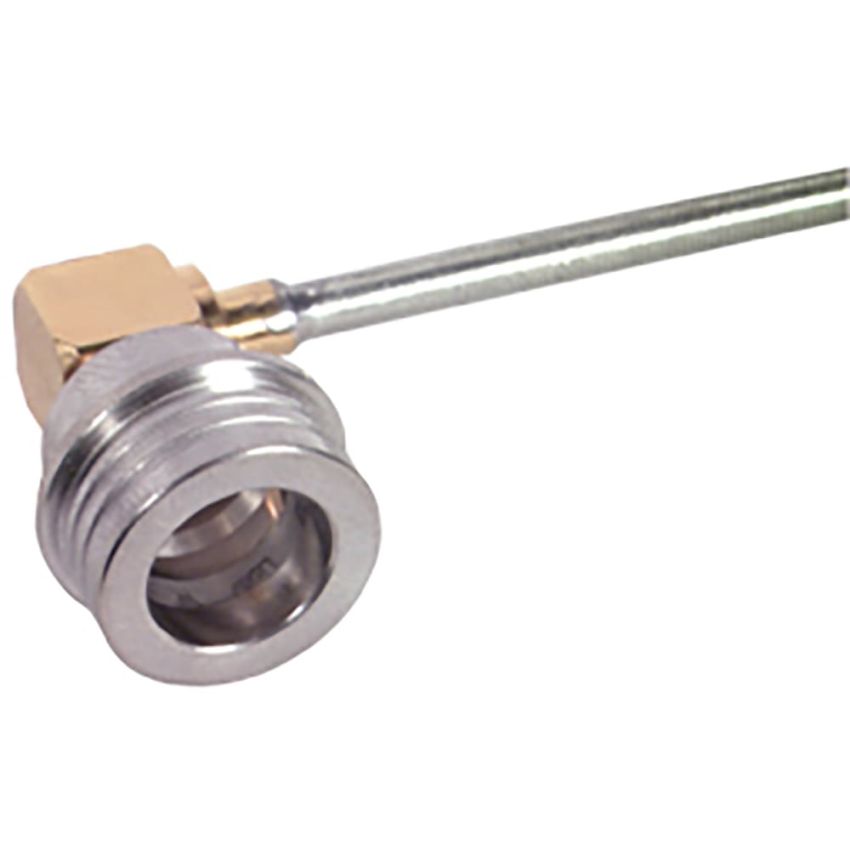

"Coaxial Right angle Cable Connector
Impedance (Ohm): 50
Interface freq. max. (GHz): 11
Return Loss[-dB]1: 24 DB
VSWR1: 1,15
Frequency Range 2: 1 GHz to 6 GHz
Return Loss[-dB]2: 20 DB
VSWR2: 1,22
Frequency Range 3: 6 GHz to 8 GHz
Return Loss[-dB]3: 12 DB
VSWR3: 1,65
Mechanical data
Number of matings: 100
Cable entry centre contact: soldered
Cable entry outer contact: soldered
Dielectric size: 3 mm
Cable retention force: 309 N
Weight: 0,019 kg "
| Brand | Huber+Suhner |
|---|---|
| GTIN | 11111111 |
| Size | N/A |
| Gauge | N/A |
|
