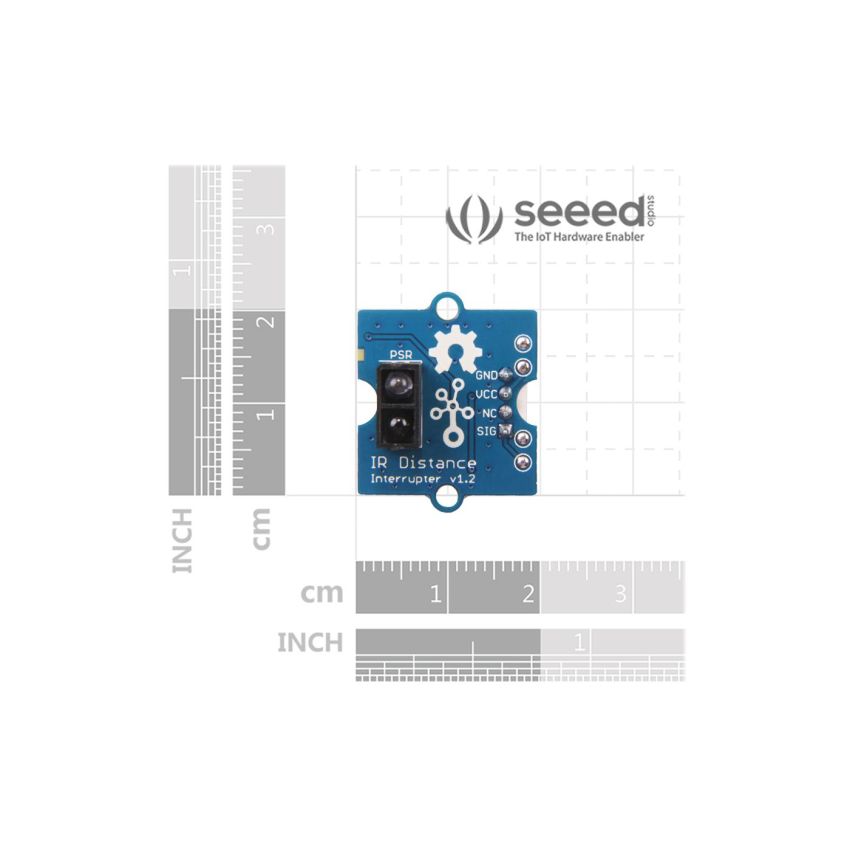

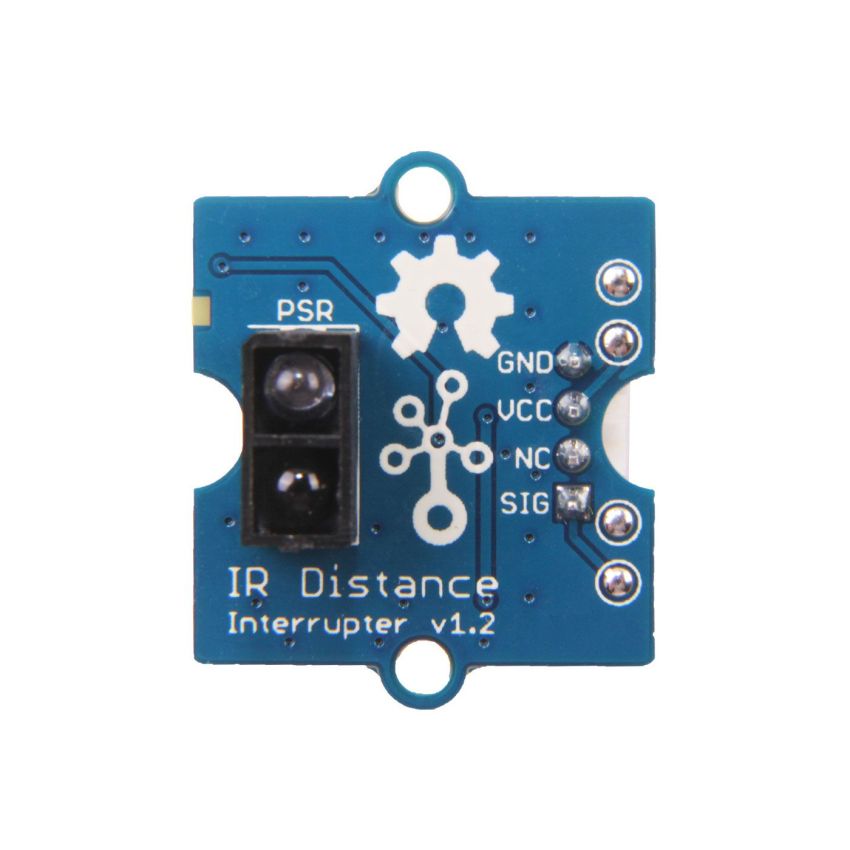

Grove - IR Distance Interrupter v1.2

The Grove IR Distance Interrupter v1.2 is a digital infrared object detection sensor designed to detect objects interrupting an infrared light beam. It uses a reflective infrared sensor (an IR emitting diode paired with a phototransistor) that senses the reflected IR signal from nearby surfaces. When an object is present in front of the sensor within its detection range, the output switches to a digital HIGH, and the onboard indicator LED lights up to show detection. When no object is detected or it is outside the effective range, the output remains digital LOW and the LED is off. This sensor also includes an adjustable potentiometer for fine-tuning the sensitivity of the infrared detection.

This module is popular in robotics, automation, object counting, optical encoders, and any project requiring simple presence detection without complex measuring circuits. It uses a standard Grove connector for plug-and-play connectivity with compatible development boards like Arduino and Raspberry Pi (via Base Shields).

Key Features

• Reflective Infrared Object Detection
  Detects objects based on infrared light reflected back to a built-in phototransistor when an object enters the sensor’s field.
• Digital Output Signal
  Provides a straightforward HIGH/LOW digital signal; HIGH when reflected IR is detected and LOW when no object is present.

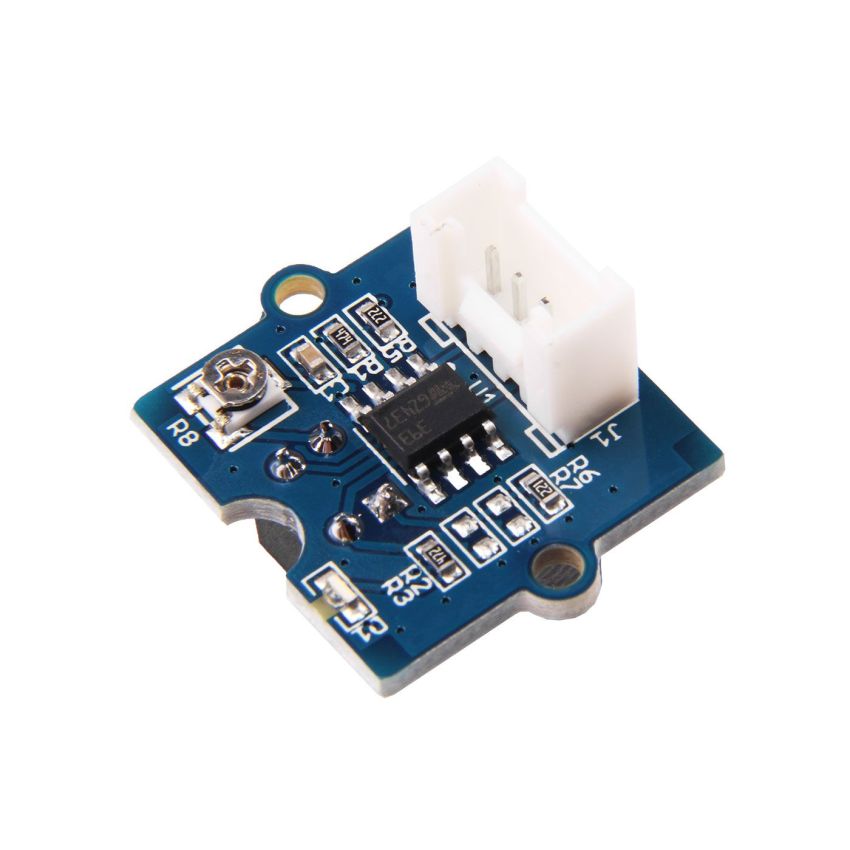

• Adjustable Sensitivity
  The onboard potentiometer can be turned to adjust the threshold at which objects are detected, allowing customization for different distances or surface reflectivities.
• Onboard Indicator LED
  Built-in LED visually indicates when an object is detected, making it easy to monitor operation without external tools.

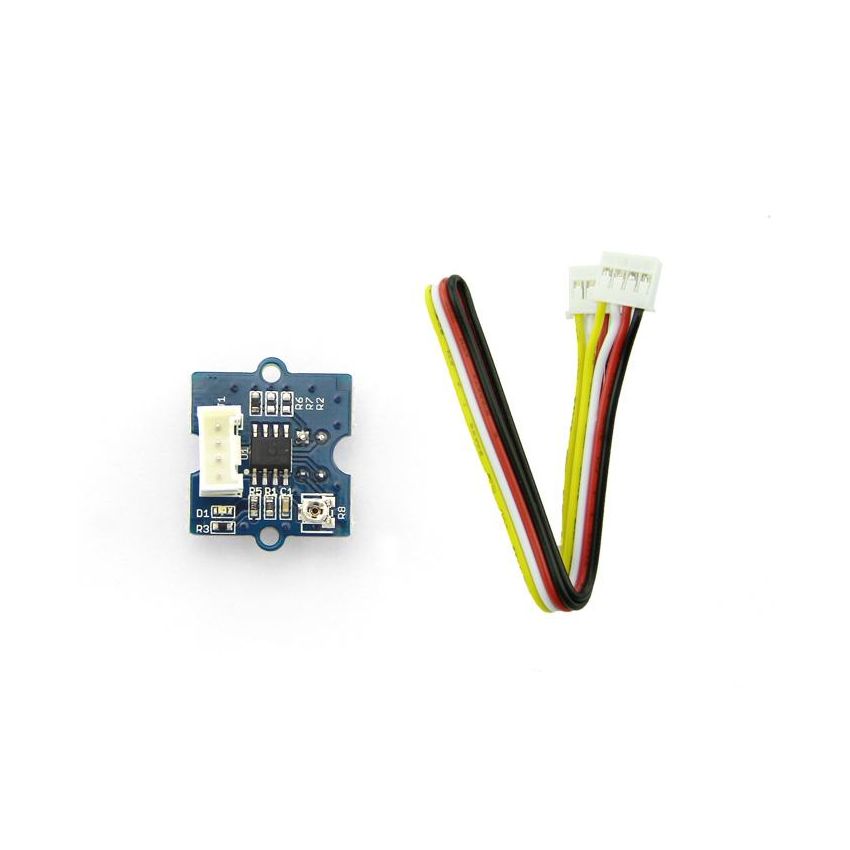

• Grove Plug-and-Play Interface
  Standard 4-pin Grove connector simplifies wiring and makes it compatible with many Seeed Studio Grove shields and controller boards.
• Compact & Versatile
  Small module size and low power design make it suitable for compact or embedded systems, robotics, and simple interrupt detection applications.

Application

• Mouse Copier
• Switch Scanner
• Floppy disk driver
• Non-contact Switching
• For Direct Board
• Line following robots
• Optical encoders
• Object counting applications
