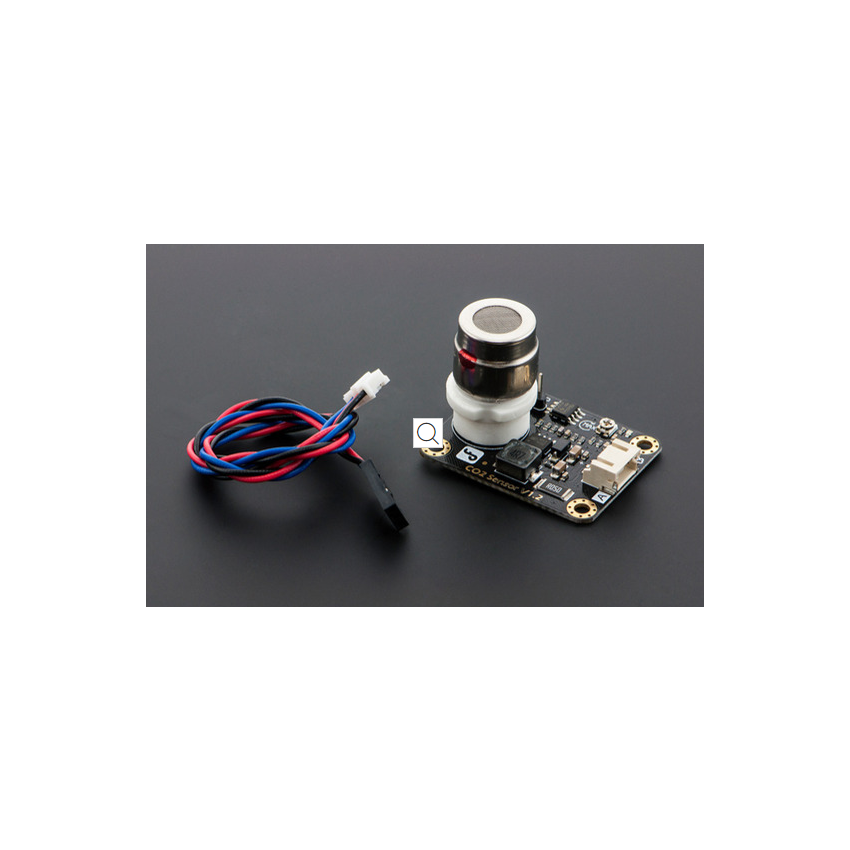

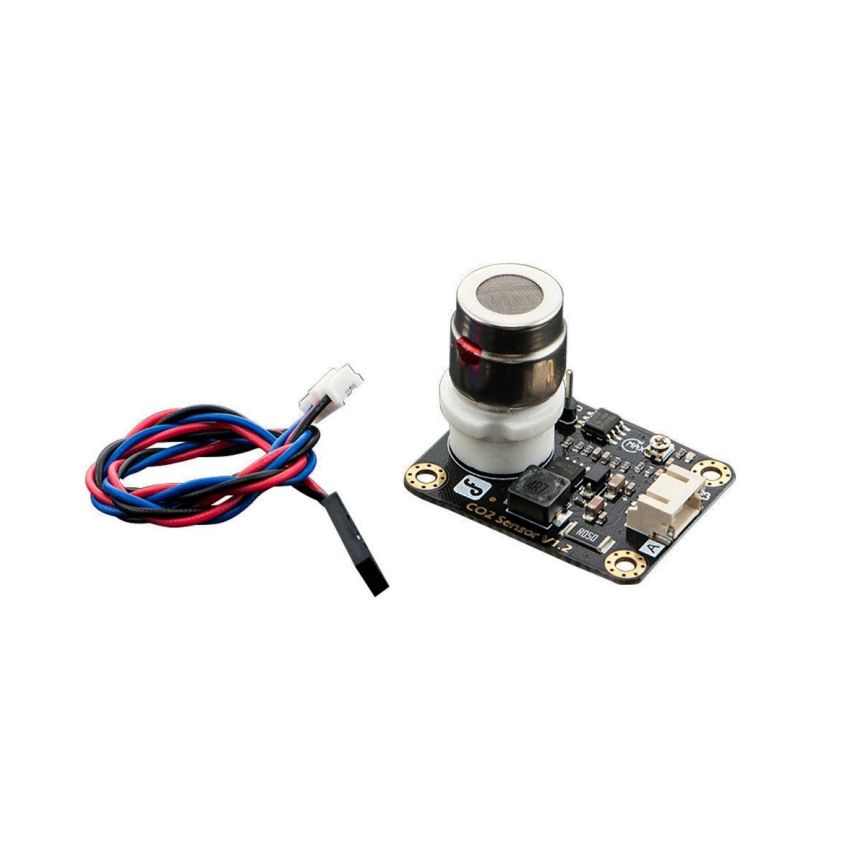

Gravity: Analog Electrochemical Carbon Dioxide Sensor (0-10000 ppm)

The SEN0159 Gravity Analog Electrochemical Carbon Dioxide Sensor Module is designed for detecting CO2 concentration in the range of 0 to 10,000 ppm. It is suitable for air quality monitoring, indoor CO2 detection, fermentation process control, and other environmental sensing applications.

This module uses the MG-811 CO2 sensor, which is highly sensitive to carbon dioxide while having lower sensitivity to alcohol and carbon monoxide. It also features low humidity and temperature dependency, helping provide more stable readings in different environments.

Analog and Digital Output

The sensor provides an analog voltage output that changes according to CO2 concentration. As the CO2 concentration increases, the output voltage decreases.

It also includes an onboard potentiometer that allows users to set a voltage threshold. When the CO2 level becomes high enough and the voltage drops below the set threshold, the module outputs a digital ON/OFF alarm signal.

Stable Sensor Performance

The module includes an onboard heating circuit to maintain the best operating temperature for the sensor. It also has an internal power boost circuit that increases the heating voltage to 6V, helping the sensor perform more effectively.


Key Features

• Detects CO2 concentration from 0 to 10,000 ppm
• Uses MG-811 electrochemical CO2 sensor
• Analog output voltage decreases as CO2 concentration increases
• Digital alarm output with adjustable threshold
• Onboard potentiometer for alarm threshold adjustment
• Built-in heating circuit for stable sensor operation
• Internal power boost to 6V for improved heating performance
• High sensitivity to CO2
• Low sensitivity to alcohol and CO
• Low humidity and temperature dependency
• Fast response time
• Gravity interface for easy connection with Arduino and other microcontrollers

Applications

• Indoor air quality monitoring
• Room CO2 concentration detection
• Ventilation and air control systems
• Fermentation process monitoring
• Environmental monitoring projects
• Arduino-based CO2 detection systems

Specifications

• Operating Voltage: 3.7V to 5V
• Detection Range: 0 to 10,000 ppm
• Analog Output: 2.7V to 4.1V
• Digital Output: 0 to VCC level
• Sensor Type: Electrochemical / Solid Electrolyte Battery Measurement Principle
• Accuracy: ±100 ppm at 400 ppm
• Response Time: Less than 20 seconds
• Operating Temperature: -20°C to 50°C
• Lifespan: More than 1 year
• Product Range: Gravity Series
