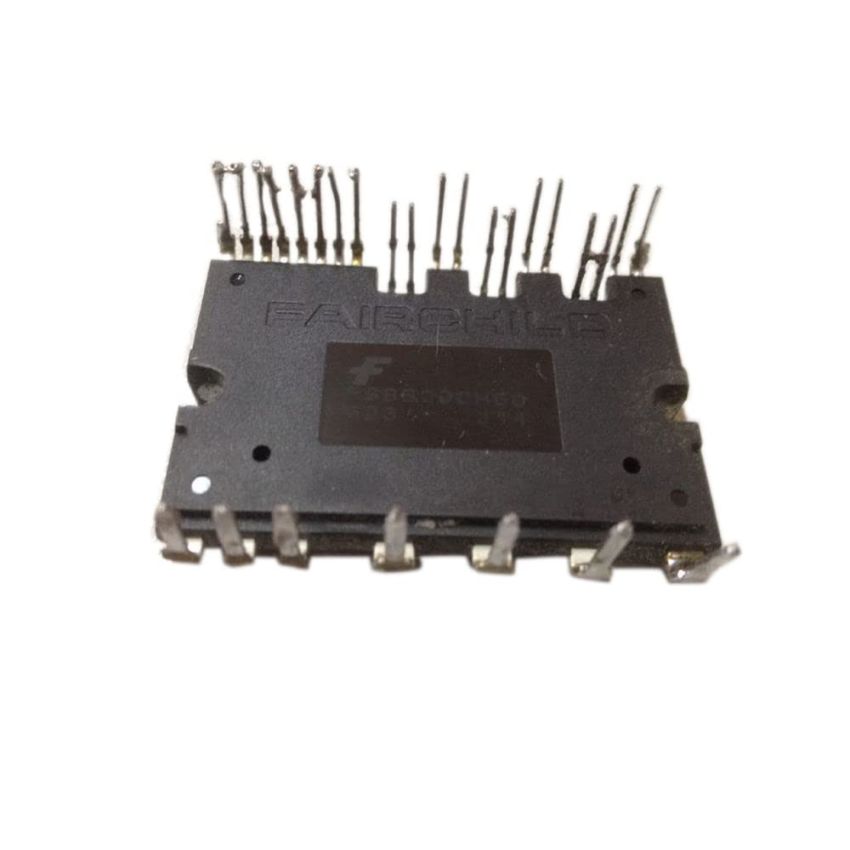

"It is an advanced smart power module (SPMTM) that Fairchildhas newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low-power inverter-driven applications like air conditioner and wash-ing machine. It combines optimised circuit protection and drivematched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and short-circuit protection. The high speed built-in HVIC provides opto-coupler-less single-supply IGBT gate driving capability that fur-ther reduces the overall size of the inverter system design. Each Phase current of inverter can be monitored separately due to the divided negative dc terminals

Features

• UL Certified No.E209204(SPM27-CA package)
• Very low thermal resistance due to using DBC
• 600V-20A 3-phase IGBT inverter bridge including control ICs
for gate driving and protection
• Divided negative dc-link terminals for inverter current sensing
applications
• Single-grounded power supply due to built-in HVIC
• Isolation rating of 2500Vrms/min.

"
