Description:

-Arduino Engineering Kit R2 contains all the components students need to complete each project.

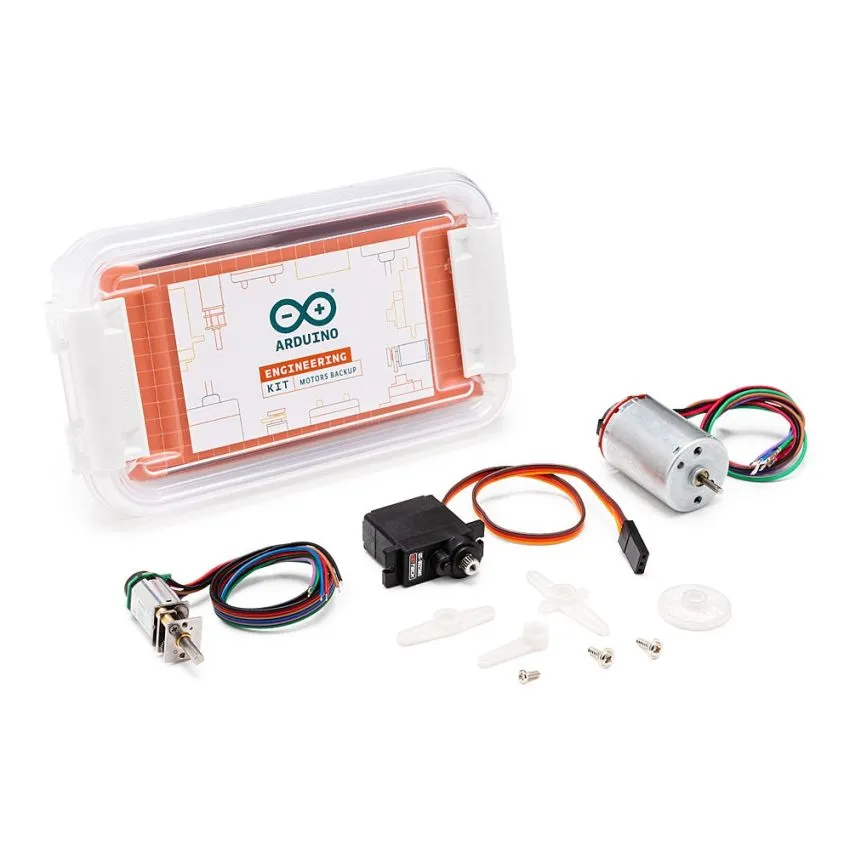

-In the Engineering Kit - Motors Backup, you’ll find all the replacement motors students may need to complete their projects.
-The Engineering Kit - Motors Backup includes a servo motor, a geared motor with an encoder, and a micro DC motor with an encoder. Each of these exclusive motors is needed to complete the Arduino Engineering Kit R2 projects.

SERVO SPECIFICATIONS:

• -Servo Motor GS-9025MG
• -Operation voltage range 4.8 - 6V
• -Standing torque 2.3 kg.cm (4.8V)
• -Control system Positive PWM control 1500 uses Neutral

DC Motor w/ encoder SPECIFICATIONS:

• -DC Motor w/ encoder TRK-370CA-17260-51V-EN
• -Operating Voltage 12 V DC
• -Stall current 1.85A Ref
• -Encoder output pulse 12 PPR

MicroGeared DC Motor w/ enc SPECIFICATIONS:

• -Micro Geared DC motor w/ encoder GM12-N20VA-08225-100-EN
• -Input voltage 3.5 - 16V
• -Input current 5 mA
• -Encoder output pulse 3 PPR
• -Gear ratio 100
