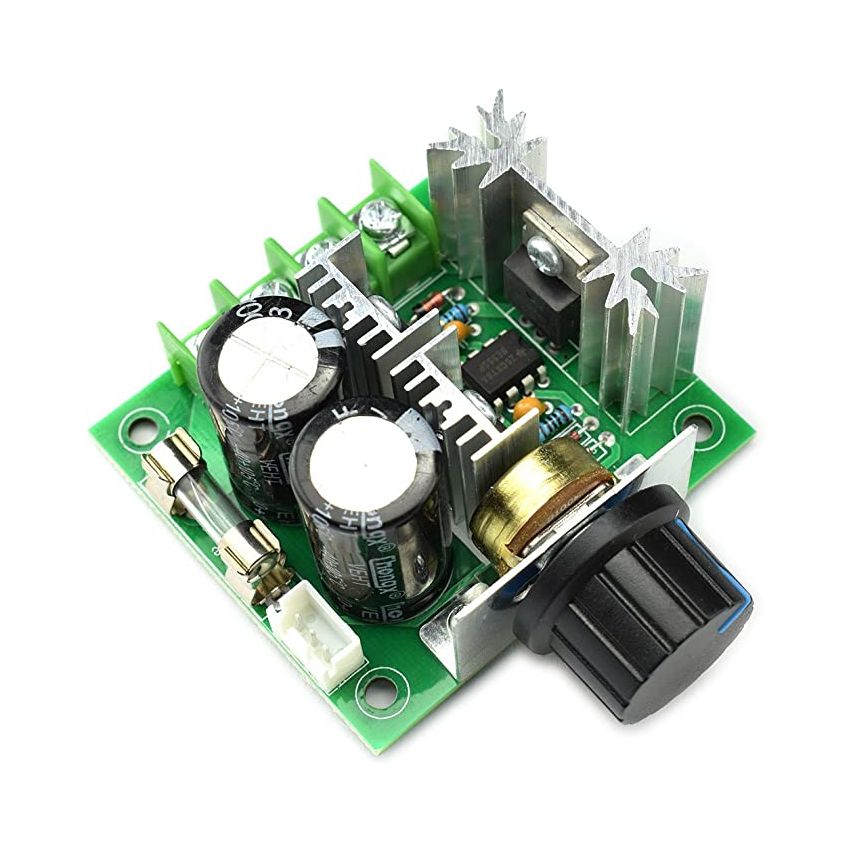

DC 10A 12V-40V motor speed controller, high efficiency, high torque, low heat radiation.
• Module Size: 60x55x28mm
• Work Voltage: DC 12V-40V
• Rated Current: 8A
• Max Current: 10A
• Quiescent Current: 0.02A (Standby)
• Output Voltage: Approx.0%-100% of input voltage
• Speed Range: 10%-100%
• PWM Frequency: 13KHz
• PWM Pulse Width Speed Range: 10%-100%
• Power Range: 0.01-400W
• Knob Potentiometer: Resistance B100K, Trepanning 8mm
• Fuse Wire: 5x20mm 10A
• Adopting 50V 1000uF large capacitance,with power supply reverse polarity protection, over-voltage protection funcion. Reserved lead type knob interface, if use lead type knob, it need to dismantle the fixed potentiometer first. Suitable for DC motor speed control etc.
Note:
• DC power supply polarity can not be inversed, otherwise is may damage speeder.
• Not suitable for AC power supply.
| Brand | Besomi |
|---|---|
| GTIN | 11111111 |
| Compatibility | N/A |
|
