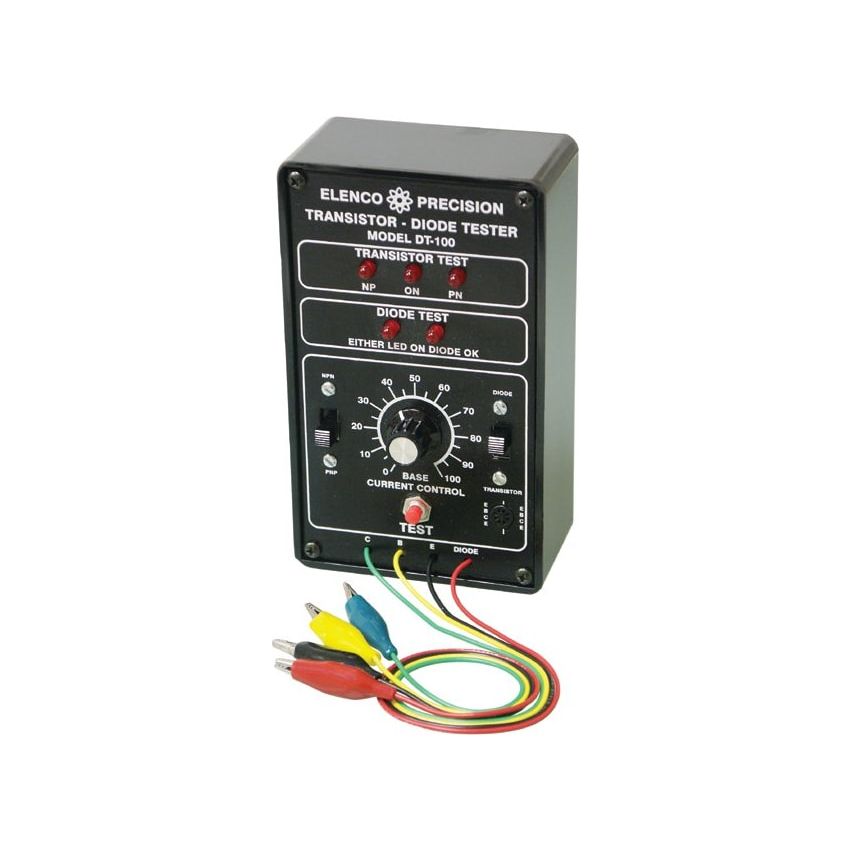

The Elenco DT-100 Diode Transistor Tester checks transistors and diodes in circuit, identifies NPN or PNP transistors and checks small or large power types. This is the assembled version of the DT-100K.
Diode Mode:
• Checks all types of diodes - germanium, silicon, power, light emitting (LEDs), and zener. -Indicates the cathode or anode leads of the diode.
• Operates in circuit with resistors as low as 5kW.
Transistor Mode:
• Checks all types of transistors - germanium, silicon, power, RF, audio, switching, and FETs.
• Identifies NPN and PNP types, PN or NP junctions.
• High gain circuit, can test transistors in circuits with base or collector resistors as low as 100W.
• Measures relative beta of two transistors.

Power Requirements: Standard 9V Battery (not included).

Specifications:

• Product Height 3.50 IN
• Product Length 8.00 IN
• Product Width 5.50 IN
