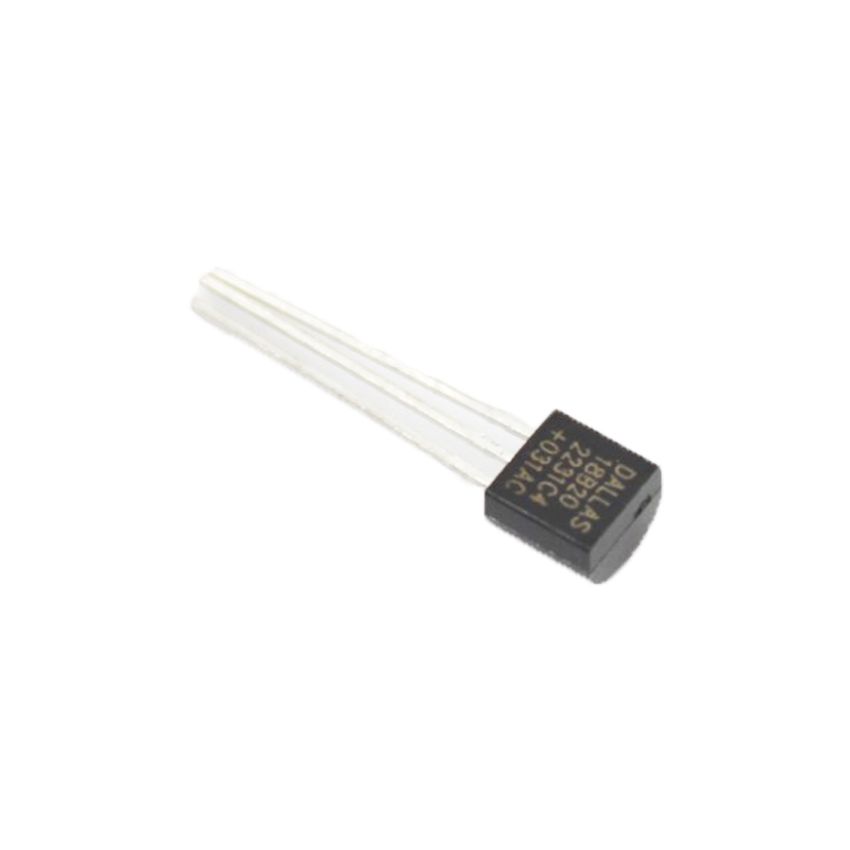

DS18B20
AED 10.00
In stock
Guarantee safe & secure checkout
Guarantee safe & secure checkout
Unique 1-wire interface requires only one
port pin for communication
• Each device has a unique 64-bit serial code
stored in an on-board ROM
• Multi-drop capability simplifies distributed
temperature sensing applications
• Requires no external components
• Can be powered from data line. Power supply
range is 3.0V to 5.5V
• Measures temperatures from –55°C to
125°C (–67°F to 257°F)
• ±0.5°C accuracy from –10°C to 85°C
• Thermometer resolution is user-selectable
from 9 to 12 bits
• Converts temperature to 12-bit digital word in
750 ms (max.)
• User-definable nonvolatile alarm settings
• Alarm search command identifies and
addresses devices whose temperature is
outside of programmed limits (temperature
alarm condition)
• Software compatible with the DS1822
• Applications include thermostatic controls,
industrial systems, consumer products,
thermometers, or any thermally sensitive
system
"
Brand | Generic |
---|---|
GTIN | 1, |
Max Voltage | N/A |
Stock |
Shipping Method |
ETA |
Cost |
|
Available |
Self Pickup |
1 Day |
Free |
|
Available |
inside UAE |
2 - 3 Days |
22 AED / Free Above 50 AED |
|
Available |
International |
4 - 7 Days |
180 AED / 49 $ |
|
pre-order |
General |
2 Weeks |
