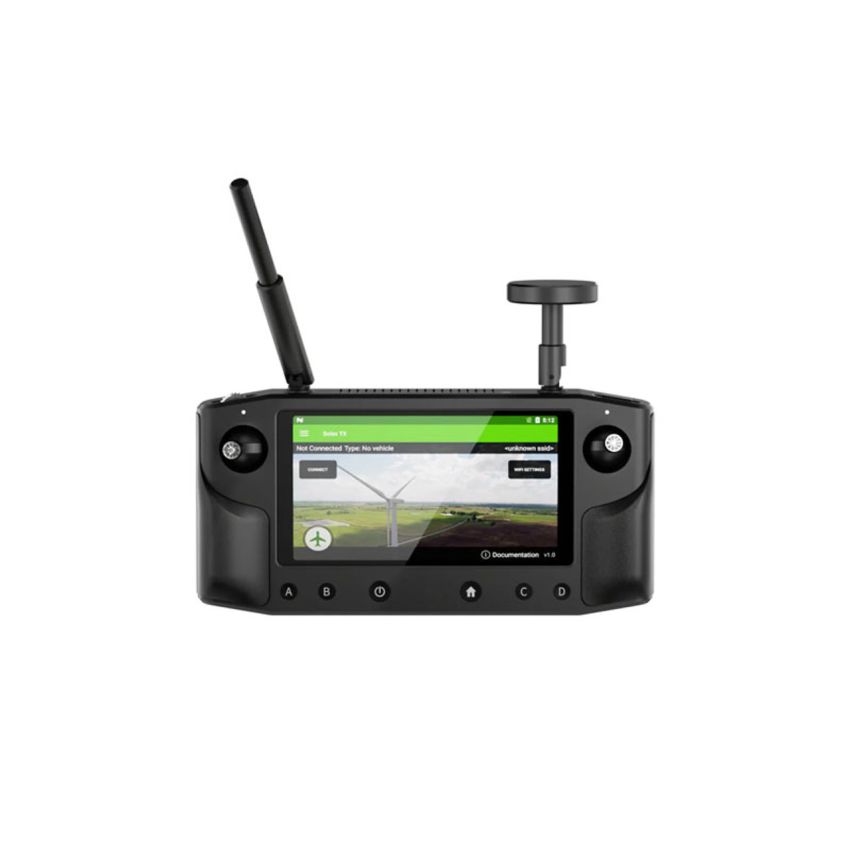

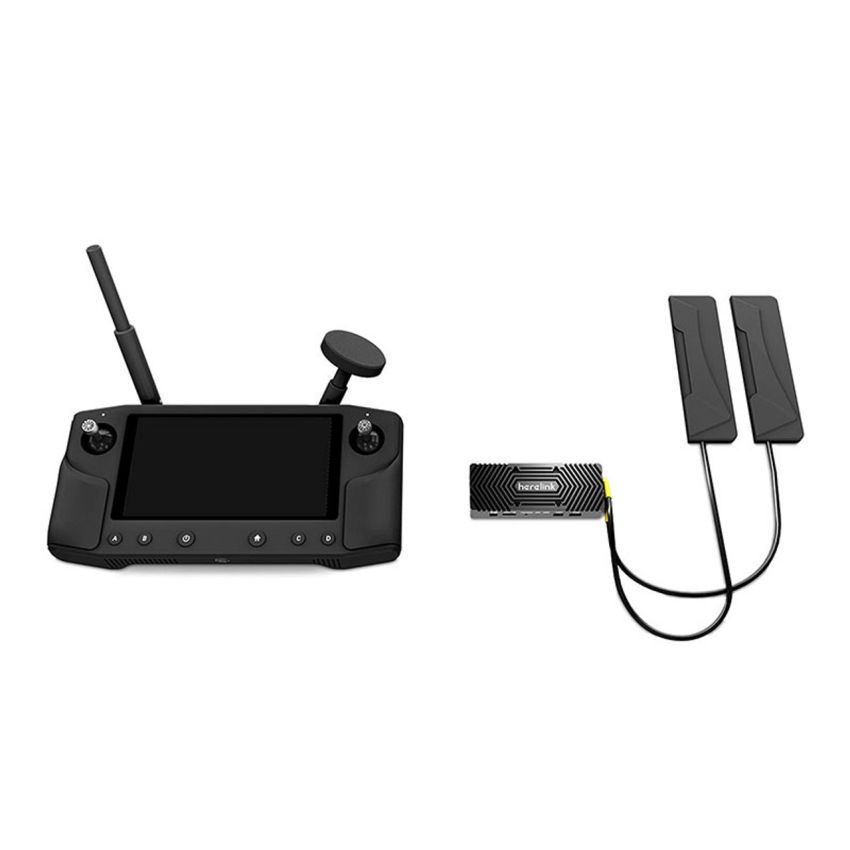

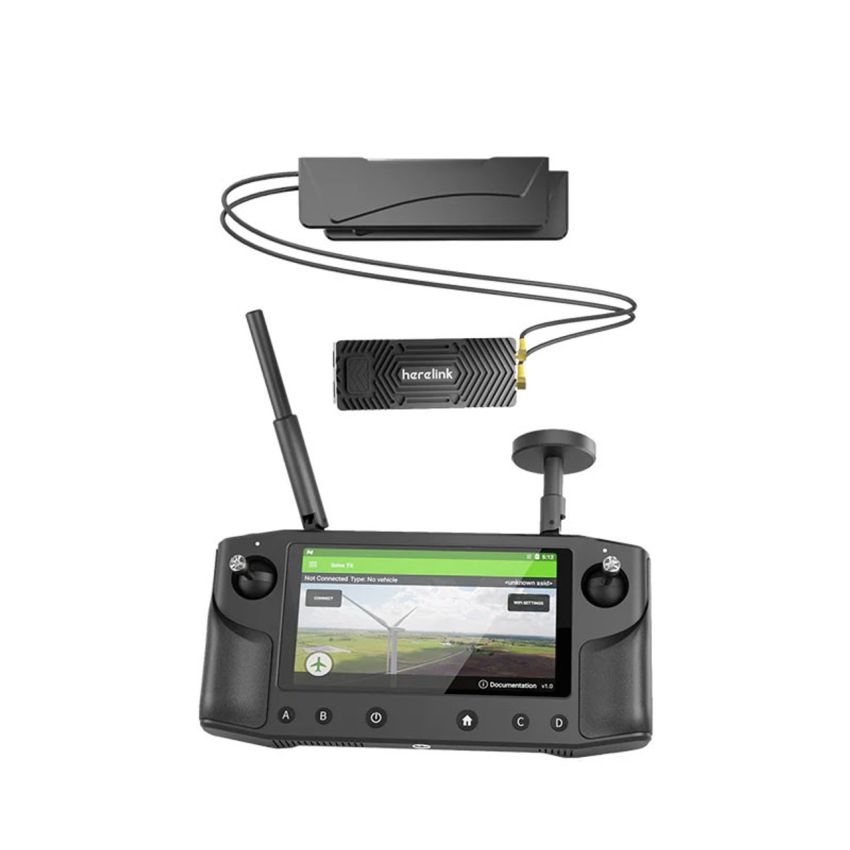

HERELINK V1.1 2.4GHz Long Range HD Video Transmission System, Integrated Remote Controller with FPV, Telemetry, and MAVLink Support

The HERELINK V1.1 2.4GHz Long Range HD Video Transmission System is a professional all-in-one control, video, and telemetry solution designed for UAVs, drones, and robotics applications. Developed in collaboration with Hex and CubePilot, this advanced system integrates a high-definition video transmission link, telemetry communication, and full flight control into a single unit. It provides a reliable 2.4GHz digital transmission range of up to 20 km under optimal conditions, ensuring ultra-low latency and crystal-clear 1080p video streaming. The system includes a ground unit with a bright 5.46-inch touch display running Android, offering real-time FPV viewing, mission planning, and control via apps like QGroundControl and Solex TX. The air unit supports MAVLink protocol, HDMI input, and dual-band telemetry, providing seamless connectivity with autopilots such as Pixhawk. Designed for professional drone operators, surveyors, and developers, the HERELINK V1.1 delivers exceptional integration, performance, and reliability for advanced UAV missions.

Key Features:

• Integrated HD video, telemetry, and control system with up to 20 km range.
• 2.4GHz digital transmission with ultra-low latency and stable link performance.
• Supports 1080p video streaming and HDMI input for FPV and camera feeds.
• Android-based 5.46-inch touchscreen ground unit with built-in mission apps.
• Full MAVLink protocol compatibility for Pixhawk and CubePilot autopilots.
• Ideal for long-range drone operations, mapping, inspection, and research use.

Additional Specification:

• Frequency Band - 2.4GHz
• Video Resolution - 1080p HD
• Communication Protocol - MAVLink / UART / HDMI
• Operating Range - Up to 20km (Line of Sight)
• Operating System - Android (Integrated Controller)
