HEX Here3+ CAN GNSS GPS Module with iStand, High-Precision RTK-Ready Positioning System for CubePilot and Pixhawk Autopilots

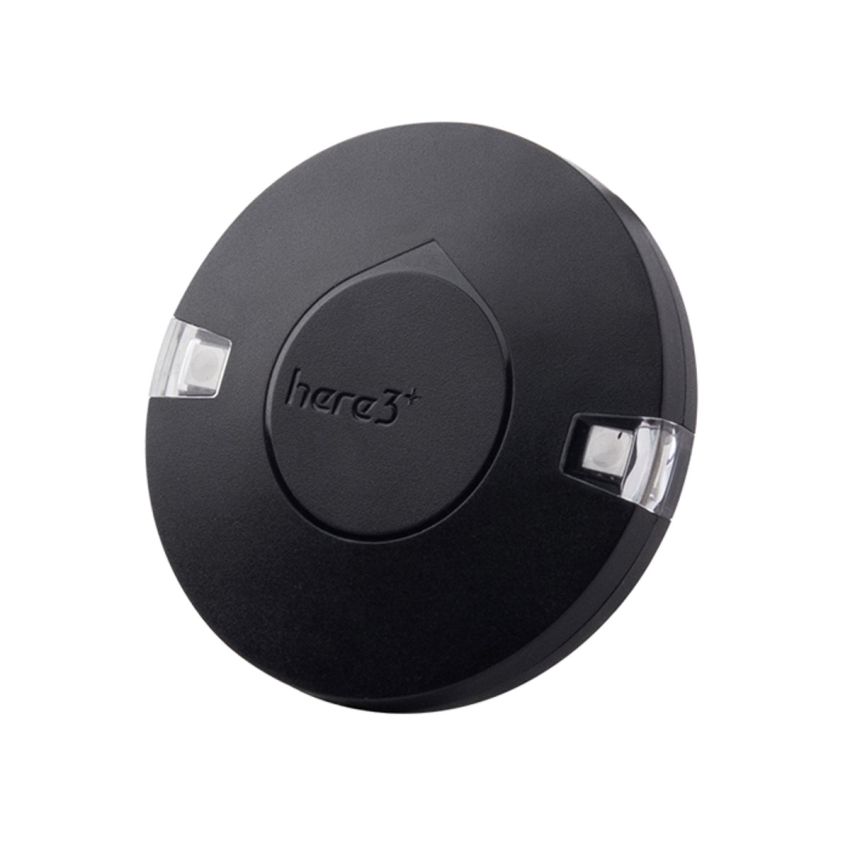

The HEX Here3+ is an advanced high-precision GNSS GPS module designed for professional UAV, robotics, and autonomous applications requiring centimeter-level positioning accuracy. Built on CAN protocol architecture, the Here3+ offers enhanced stability, faster communication, and superior noise resistance compared to traditional serial GPS modules. It supports multiple GNSS constellations including GPS, Galileo, GLONASS, and BeiDou for maximum satellite visibility and accuracy. The module is fully compatible with Pixhawk, CubePilot, and other open-source autopilot platforms via DroneCAN, enabling advanced features such as Real-Time Kinematics (RTK) for precise navigation. The included iStand provides a stable and vibration-isolated mounting solution for optimal signal reception. Encased in a robust, weather-resistant housing with an integrated safety LED indicator and magnetometer, the Here3+ is ideal for mapping, surveying, inspection, and long-range flight missions that demand absolute reliability and precision.

Key Features:

• High-precision GNSS module supporting GPS, GLONASS, Galileo, and BeiDou constellations.
• DroneCAN communication protocol for fast, stable, and interference-free data transmission.
• RTK-ready design enabling centimeter-level positioning accuracy.
• Integrated compass, status LED, and safety indicators for flight reliability.

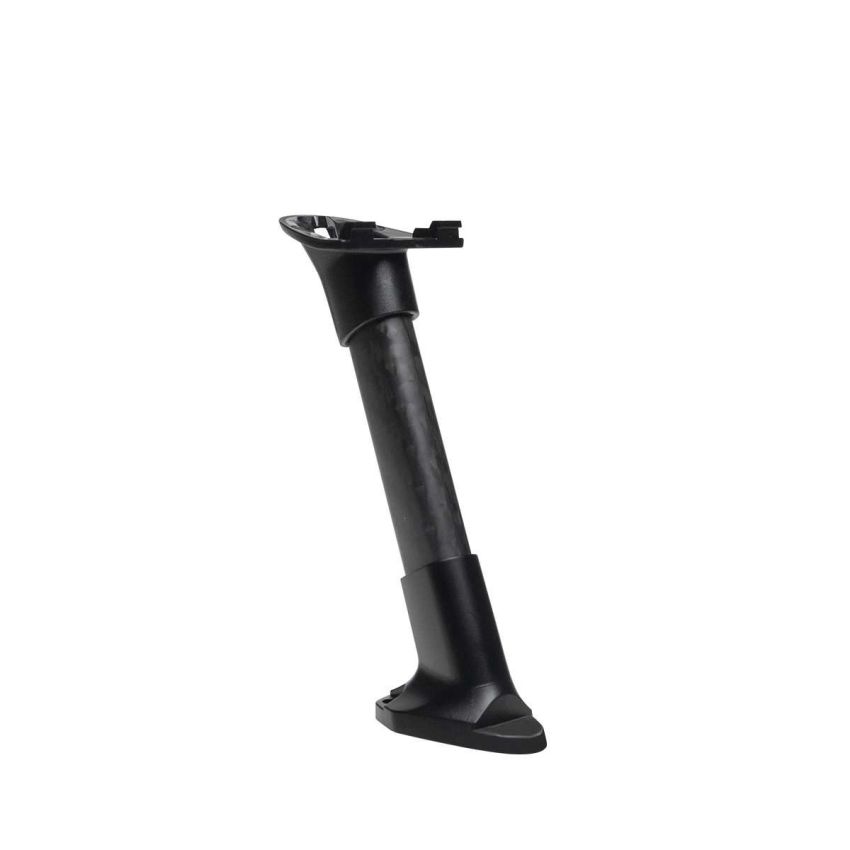

• Includes iStand for stable, vibration-free GPS mounting and signal optimization.
• Fully compatible with CubePilot, Pixhawk, and ArduPilot autopilot systems.

Additional Specification:

• GNSS Chipset - u-blox M9N
• Supported Constellations: - GPS / GLONASS / Galileo / BeiDou
• Communication Interface: - CAN / UART
• RTK Support - Yes (RTCM 3.x Compatible)
• Compatibility - CubePilot / Pixhawk / ArduPilot / PX4
