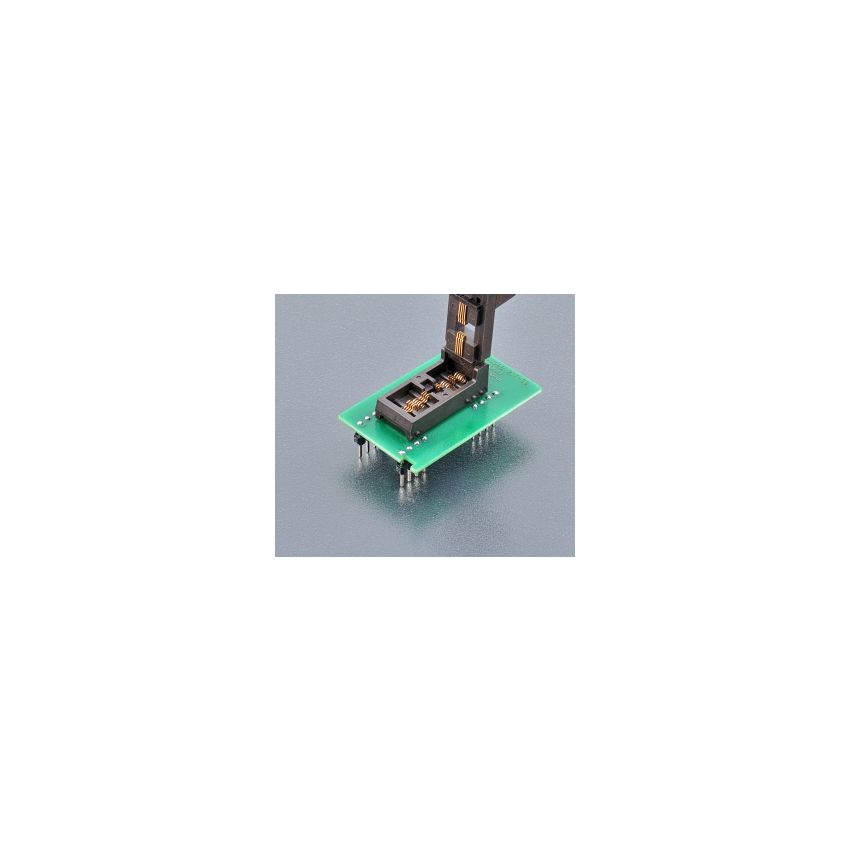

DIL8/SSOP8 ZIF-CS 110mil

The universal adapter with Ord. no. 70-0468 is specifically designed for SSOP (Shrink Small Outline Package) and MSOP (Micro Small Outline Package) devices with up to 8 pins, such as serial EEPROMs. It allows for easy programming or testing of these devices in a professional environment.



The ZIF (Zero Insertion Force) socket on this adapter has an operating (mechanical) warranty of 10,000 actuations, ensuring reliable and durable performance during repeated usage. The ClamShell type of ZIF socket allows for easy insertion and removal of the SSOP8 or MSOP8 devices without applying excessive force, minimizing the risk of damaging the devices or the adapter.



The bottom of the adapter features 2 rows of 2x4 pins, with an additional 2x4 pins for improved stability. These pins are arranged in a square pattern with a spacing of 0.6x0.6mm and a row spacing of 600mil. They provide a secure and reliable connection between the adapter and the target device, ensuring efficient communication and operation during programming or testing.



The adapter is made in Slovakia and meets high-quality standards for reliable operation. The Ord. no. 70-0468 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to follow the manufacturer's guidelines for proper usage of the adapter and the target devices to ensure correct functionality and avoid potential damage to the devices or the adapter.
